Quick Details
-
Brand Name:
-
THD
-
Model Number:
-
THD2606
-
Material of cover:
-
aluminum alloy
-
Fits for:
-
Poultry Farm
-
Ceramic honeycomb plates:
-
Cordierite with catalytic coating
-
Working On:
-
Natrual gas,LPG and Biogas,Propane
-
Gas working pressure:
-
3000 pa to 4000 pa
-
Safety:
-
Smokeless and flameless
-
Approved for:
-
CE certification
-
Feature:
-
big area heating
-
Kind:
-
Chicken House Heaters Propane
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Weight (KG):
-
1.7
-
Core Components:
-
HEATER
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
THD
-
Model Number:
-
THD2606
-
Material of cover:
-
aluminum alloy
-
Fits for:
-
Poultry Farm
-
Ceramic honeycomb plates:
-
Cordierite with catalytic coating
-
Working On:
-
Natrual gas,LPG and Biogas,Propane
-
Gas working pressure:
-
3000 pa to 4000 pa
-
Safety:
-
Smokeless and flameless
-
Approved for:
-
CE certification
-
Feature:
-
big area heating
-
Kind:
-
Chicken House Heaters Propane
-
After-sales Service Provided:
-
Video technical support

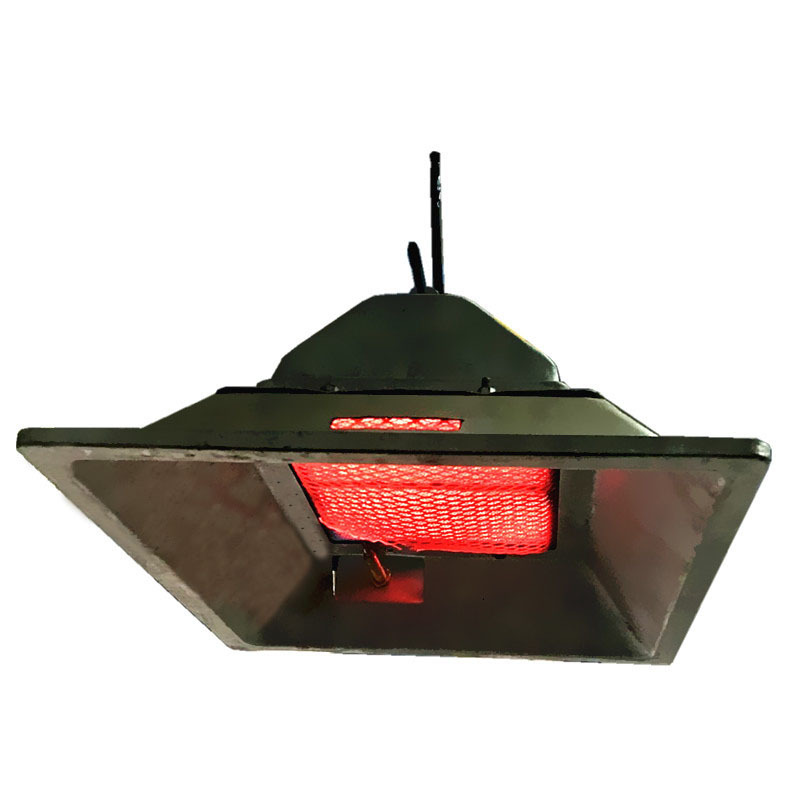

Safe Propane Infrared Chicken House Heaters
Notice:
1.When you buy this brooder,please remark the working gas type(natural gas,LPG,propane or etc).
2.Each gas matches special nozzle(jet), don't change it by yourself.
3.If LPG, pressure reducing valve &pressure gauge are necessory.
4.Connect all the parts required, check gas leakage or not.
5.Working gas pressure for different gas as followed:
| Gas Type | Natural Gas | LNG | LPG | Propane | Biogas |
| Gas pressure (Pascal) | 3000 to 4000 | 3000 to 4000 | 3000 to 5000 | 3000 to 5000 | at least 8000 |
Gas brooder information:
| Model | Net Weight | Dimension | Gas Consumption | Heat Output | ||
| kg | mm | NG | LPG | kw/hour | kcal/hour | |
| THD2606-1 | 1.7 |
Reflector 320*270*130 Ceramic 188*135 |
0.24 m3/hour | 0.18 kg/hour | 2.46 | 2116 |
Why choose us?
1.Energy Efficient above 20%.
2.Smokelss and Flameless,good for animal.
3.Flameout protection.
4.One gas brooder can warm above 600 chicks.
Gas brooder detail pictures as followed:
How to use this infrared gas brooder?
Notice & FAQ
1. Pls keep the gas inlet pipe side downward sloping when installation the brooder(as shown above) to prevent overheating.
2. It’s normal phenomenon there is blue flame at beginning, after several minutes will disappear.
3. If the blue flame always stay on ceramic plate, pls check whether the pressure too low; If yes, pls adjust the booster pump.
4. If there is a big red flame, the reason maybe is:
a. the pressure is too high. Pls adjust the pressure reducing valve to required pressure.
b. oxygen lack. Pls keep room air circulation when brooder working.
c. ceramic plate is broken; Pls change the broken ceramic plate.
5. The heat area doesn't equal, pls check whether the feather block at filter net.
6. This product is flameless, only see the red heating surface no flame in normal working.
7. Pls check up and clean the complete system parts termly.
