Quick Details
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HF
-
Voltage:
-
110V-440V
-
Dimension(L*W*H):
-
2060x1730x2580mm
-
Weight (KG):
-
2300 kg
-
Main vibration form:
-
Vibration Platform
-
Color:
-
Customer's Demand
-
Mixer model:
-
JQ350 Pan Mixer
-
Block Type:
-
Solid Cement Brick
-
Weight:
-
2ton
-
Pallet size:
-
880x480mm
-
Power source:
-
17.85kw
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Certification:
-
ISO9001,CE, SONCAP
Quick Details
-
Type:
-
Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
4000pcs per day
-
Brick size:
-
400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HF
-
Voltage:
-
110V-440V
-
Dimension(L*W*H):
-
2060x1730x2580mm
-
Weight (KG):
-
2300 kg
-
Main vibration form:
-
Vibration Platform
-
Color:
-
Customer's Demand
-
Mixer model:
-
JQ350 Pan Mixer
-
Block Type:
-
Solid Cement Brick
-
Weight:
-
2ton
-
Pallet size:
-
880x480mm
-
Power source:
-
17.85kw
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Certification:
-
ISO9001,CE, SONCAP
Machine Introduction

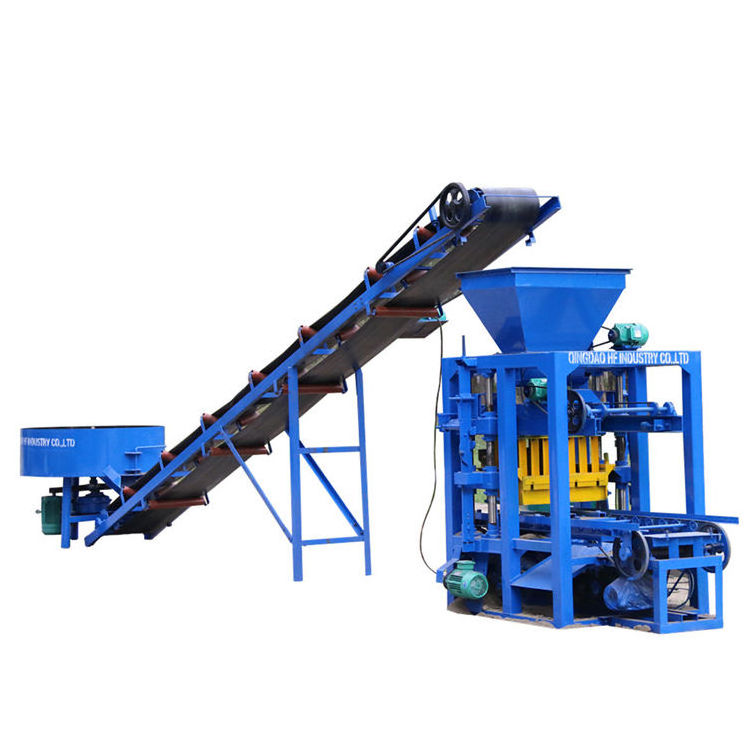

QT4-26 block making machine
is one of our sell best block making machine, it is semi automatic, suitable for making all types of hollow blocks, solid block, pavers, curbstones and so on. Now in order to suit the overseas markets and ensure the machine work more efficiently, we have used many parts of some well-known brands imported from overseas countries, List as follows.
1. Switches and motor: switches will use Japan Omron and France Schneider brand, motor will use Simens or ABB brand.
3. Hydraulic system: hydraulic spare parts be ordered according to our block machine characteristics form Taiwan.
4. Material feeder: rotary mixer type material feeding cart, finshed products get higher density and strength.
5. Mould: newest heat treatment device assure longer mould life span.
6. Spare parts: follow the machine shipment, we supply suitable wearing parts, the after-sales services will be faster.
|
Main Technical Specifications
|
|
|
|
|||
|
Overall Dimension
|
2060x1730x2580mm
|
|
|
|||
|
Vibration force
|
45KN
|
|
|
|||
|
Main vibration form
|
Platform vibration
|
|
|
|||
|
C
ycle Time
|
26-35 seconds
|
|
|
|||
|
Vibrating Frequency
|
2800-4500 rolls/minute
|
|
|
|||
|
Motors Power
|
17.85KW
|
|
|
|||
|
P
allet Size
|
880x480mm
|
|
|
|||
|
Raw Materials
|
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
|
|
|
|||
|
Applied Products
|
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
|
|
|
|||
|
Applied Fields
|
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc.
|
|
|
|||
