Quick Details
-
Power:
-
Custom Made
-
Dimension(L*W*H):
-
Custom Made
-
Weight (KG):
-
200
-
Name:
-
Sand Blasting Machine
-
Capacity:
-
300L
-
Working efficiency:
-
7~15m2/h
-
Working pressure:
-
0.8Mpa
-
Air consumption:
-
6m3/min
-
Weight:
-
280Kg
-
Cleanup level:
-
Sa2.5-3
-
Abrasive diameter:
-
0.1-3.0mm
-
Application:
-
Abrasive Blast Rust Cleaning
-
Color:
-
Customer's Request
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Yugong/OEM
-
Core Components:
-
Other
-
Power:
-
Custom Made
-
Dimension(L*W*H):
-
Custom Made
-
Weight (KG):
-
200
-
Name:
-
Sand Blasting Machine
-
Capacity:
-
300L
-
Working efficiency:
-
7~15m2/h
-
Working pressure:
-
0.8Mpa
-
Air consumption:
-
6m3/min
-
Weight:
-
280Kg
-
Cleanup level:
-
Sa2.5-3
-
Abrasive diameter:
-
0.1-3.0mm
-
Application:
-
Abrasive Blast Rust Cleaning
-
Color:
-
Customer's Request

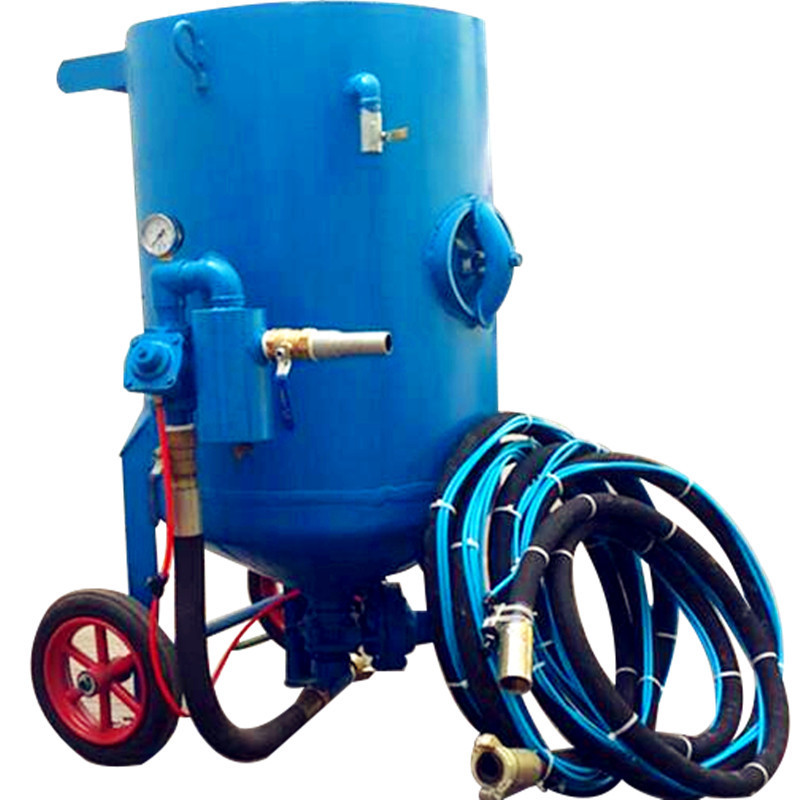

High Pressure Dry&Water Sandblasting Machine
Application Of Sandblasting M achine
Mobile sand blasting machine is suitable for cleaning steel structure, anti-corrosion construction team, fitness amusement equipment, root carving cedar, engineering vehicle renovation, stainless steel workpiece glass, stone, ship repair, machinery, oil pipeline, hydraulic engineering, mold, port construction Such as derusting, spray processing, descaling, burrs can also be used for spraying, pre-plating treatment process to improve the adhesion of the surface of the coating (plating) layer all surface treatment.
It is used to spray glass pellets and strengthen the surface of polished parts. It can replace the pickling phosphating process, has no problem of sewage charges, high efficiency, low cost and good quality, which is unmatched by traditional chemistry and manual descaling. After blasting, the paint quality is good and the coating life is long. It is a common process adopted internationally.
Feature Of Sandblasting M achine
1. Efficient open blasting to clean complex surface workpieces;
2. Water filter unit external water filter can improve the quality of gas supply;
3. Increase working radius, working radius up to 10 meters, surface treatment level up to Sa2.5-3;
4. Structural human design car structure, easy to move;
5. Applicable abrasives for a wide range of river sand, sea sand, quartz sand, copper ore, corundum sand, steel sand, etc;
6. Effortless and light operation sandblasting components labor-saving configuration, combined lightweight design;
7. Continuous blasting operation can realize continuous blasting without sanding.
Technical Of Sandblasting Machine
|
Model |
YG-300 |
YG-500 |
YG-600 |
YG-800 |
YG-1000 |
|
Capacity(L) |
300 |
500 |
600 |
800 |
1000 |
|
Diameter(mm) |
600 |
700 |
800 |
900 |
1000 |
|
Height(mm) |
1750 |
1750 |
1950 |
2100 |
2200 |
|
Work efficiency(m2/h) |
7~15 |
7~15 |
7~15 |
7~15 |
7~15 |
|
Working Pressure(Mpa) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
|
Air consumption(6m3/min) |
6 |
6 |
6 |
6 |
6 |
|
Weight |
280 |
360 |
420 |
545 |
640 |
