Quick Details
-
Brand Name:
-
Senba
-
Theory:
-
Detect human infrared ray
-
Output:
-
Digital signal, Digital Signal
-
Brand:
-
PIR detector
-
Operating Temperature:
-
-30-70 degree
-
Mounting Type:
-
welding
-
Package / Case:
-
TO-5
-
Voltage Rating:
-
2.2-3.7V
-
Humidity Range:
-
-40-80 degree
-
Interface:
-
6 pins
-
Sensing Range:
-
6-12m
-
Function:
-
Detect human infrared ray
-
Sensing Distance:
-
6-12m
-
Voltage - Max:
-
3.7V
-
Sensing Object:
-
Human
-
Sensing Light:
-
Infrared ray
-
Application:
-
Toys, Security system, Toys, digital photoframe, TV
-
Product Name:
-
6 pins PIR Sensor
-
Delay Time:
-
Ajustable
-
LDR Light Control:
-
Ajustable
-
Sensitivity:
-
Ajustable
-
Window size:
-
3.8x5mm
-
Elements:
-
Dual elements 2x1mm
-
Keyword:
-
Pir motion sensor
-
Supply voltage:
-
2.2-3.7V
Quick Details
-
Use:
-
Smart home
-
Model Number:
-
BL612
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Senba
-
Theory:
-
Detect human infrared ray
-
Output:
-
Digital signal, Digital Signal
-
Brand:
-
PIR detector
-
Operating Temperature:
-
-30-70 degree
-
Mounting Type:
-
welding
-
Package / Case:
-
TO-5
-
Voltage Rating:
-
2.2-3.7V
-
Humidity Range:
-
-40-80 degree
-
Interface:
-
6 pins
-
Sensing Range:
-
6-12m
-
Function:
-
Detect human infrared ray
-
Sensing Distance:
-
6-12m
-
Voltage - Max:
-
3.7V
-
Sensing Object:
-
Human
-
Sensing Light:
-
Infrared ray
-
Application:
-
Toys, Security system, Toys, digital photoframe, TV
-
Product Name:
-
6 pins PIR Sensor
-
Delay Time:
-
Ajustable
-
LDR Light Control:
-
Ajustable
-
Sensitivity:
-
Ajustable
-
Window size:
-
3.8x5mm
-
Elements:
-
Dual elements 2x1mm
-
Keyword:
-
Pir motion sensor
-
Supply voltage:
-
2.2-3.7V
Product Description

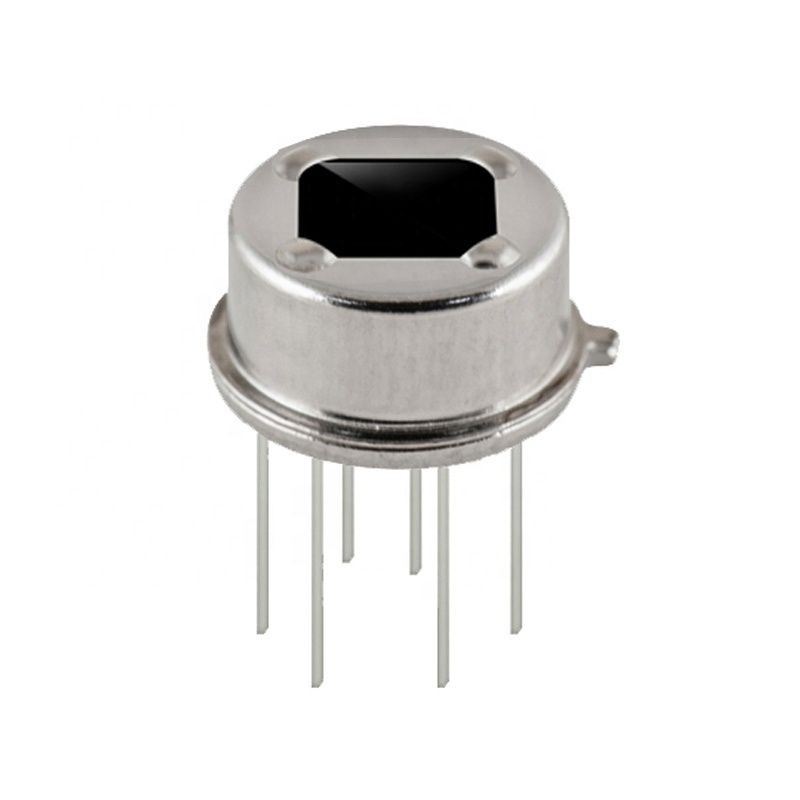

The BL-612 is a latest smart digital motion detector with a small window size. It offers a complete motion detector solution, with all electronic circuitry built into the detector housing. Only a power supply and power-switching components need to be added to make the entire motion siwtch. The BL612 adopts big window which offers bigger view of angle.
BL612 includes the time setting, sensitivity adjustment and ambient light level.
Features and Benefits
* Power adjustable, save more energyDigital signal processing(DSP)
* Two-way differential high impedance sensor input
*
Built-in filter, screen the interference by other frequency
*
Excellent power supply rejection, Insensitive to RF interference
*
Schmidt REL output
*
Low voltage, low power consumption, instantaneous settling after power up
Typical Applications
The circuit is designed for the PIR motion sensor BL612.
Applications
The PIR sensor BL612 is widely used in many area, eg. Intelligent appliance, Alarms, Motion detector, Sensor lighting, Security system, Automatic control,
Occupancy detection,
Motion sensor lights,
etc.
Specification
|
Product name
|
6 pins PIR motion Infrared Sensor BL612
|
|
Window size
|
3.8x5mm
|
|
Pins
|
6 pins
|
|
Delay time
|
Adjustable
|
|
On-time
|
2-3600s
|
|
Sensivitity setting
|
Adjustable
|
|
Sensitivity
|
90uA
|
|
Operating temperature
|
-20-85℃
|
|
Storage temperature
|
-40-125℃
|
How to Choose PIR Sensor?
|
Common type
|
D203S, D203B
|
|
Anti-EMI type
|
D204S, D204B
|
|
Anti-EMI Enhanced
|
W216S/W216B, W220S/W220B, W222S/W222B
|
|
High sensitivity
|
H217S, H217B
|
|
Anti-EMI Enhanced and Anti-whitelight
|
K216S, K220S, K222S
|
|
4 elements
|
G2X2(elements parallel connection), B2X2(elements connection in series)
|
|
Affordable type
|
NS312,NS412, NS612
|
|
Basic type
|
BS/BL/BM312,BS/BM/BL412,BS/BL/BM612
|
|
High sensitivity
|
HS/HL/HM312;HS/HL/HM412;HS/HL/HM612
|
|
AD signal
|
YS312, YM312
|
|
Programmable
|
RS/RL/RM412
|
|
4 elements basic type
|
BX/BQ304, BX/BQ404, BX/BQ604
|
|
4 elements high sensitivity
|
HX/HQ304, HX/HQ404, HX/HQ604
|
|
Analog type
|
S19 series
|
|
Digital type
|
S18 series
|
|
Plastic housing
|
S22-P330Y = YS312; S22-P331Y = YS312 + Anti-whitelight;
S22-P340R = RS412; S22-P341R = RS412 + Anti-whitelight.
|
