Quick Details
-
Brand Name:
-
Royaland
-
Model Number:
-
MEPH504020
-
External Size:
-
50*40*20
-
Product name:
-

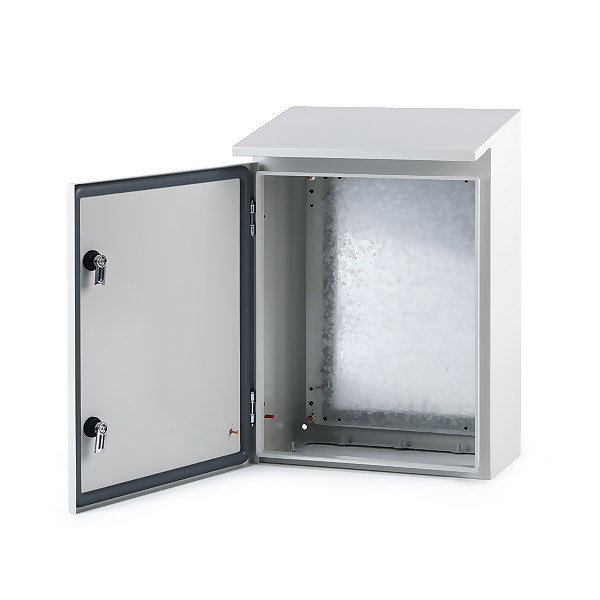

Single Door Wall Mounting Enclosure With Top & Bottom Cable Plate
-
Product number:
-
MEPH604030
-
Size(cm):
-
60*40*30
-
Material:
-
Cold roll steel
-
Colour:
-
RAL7035 or RAL7032
-
Package:
-
Paper Carton
-
Delivery time:
-
30 Days
-
Customization:
-
Accept Enclosure Customized
-
Application:
-
installation in commercial and light industrial premises
-
Usage:
-
accommodate various types of switchgear and controlgear assemblies
Quick Details
-
Protection Level:
-
IP66
-
Type:
-
DISTRIBUTION BOX
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Royaland
-
Model Number:
-
MEPH504020
-
External Size:
-
50*40*20
-
Product name:
-
Single Door Wall Mounting Enclosure With Top & Bottom Cable Plate
-
Product number:
-
MEPH604030
-
Size(cm):
-
60*40*30
-
Material:
-
Cold roll steel
-
Colour:
-
RAL7035 or RAL7032
-
Package:
-
Paper Carton
-
Delivery time:
-
30 Days
-
Customization:
-
Accept Enclosure Customized
-
Application:
-
installation in commercial and light industrial premises
-
Usage:
-
accommodate various types of switchgear and controlgear assemblies
Product Description
Applications:
Metal Enclosures are designed to install various electrical components and switchgear in commercial and light industrial premises.
Specifications:
* Made of cold roll steel sheet of thickness 1.2mm -2.0mm
* Textrured epoxy polyester powder coating in RAL7035 or RAL7032
* Mounting plate made of galvanized steel or plain steel painted in RAL2004 smooth finish
* Polyurethane gasket
* Degree of protection up to IP66
* Complies with IEC 60529 standard
* External mechanical impact resistance up to IK10
Metal Enclosures are designed to install various electrical components and switchgear in commercial and light industrial premises.
Specifications:
* Made of cold roll steel sheet of thickness 1.2mm -2.0mm
* Textrured epoxy polyester powder coating in RAL7035 or RAL7032
* Mounting plate made of galvanized steel or plain steel painted in RAL2004 smooth finish
* Polyurethane gasket
* Degree of protection up to IP66
* Complies with IEC 60529 standard
* External mechanical impact resistance up to IK10
|
Product Range
|
|
|
|
|
|
|||||
|
Model
|
H
|
W
|
D
|
No.of lock
|
Gland open
|
|||||
|
MEPH504020
|
500
|
400
|
200
|
2
|
D
|
|||||
|
MEPH604020
|
600
|
400
|
200
|
2
|
D
|
|||||
|
MEPH604030
|
600
|
400
|
300
|
2
|
D
|
|||||
|
MEPH806030
|
800
|
600
|
300
|
2
|
E
|
|||||
