Quick Details
-
Main Circuit Rating Voltage:
-
380v
-
Main Circuit Rating Current:
-
400A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HOCH
-
Model Number:
-
LE1-D40, QCX2
-
Product Name:
-

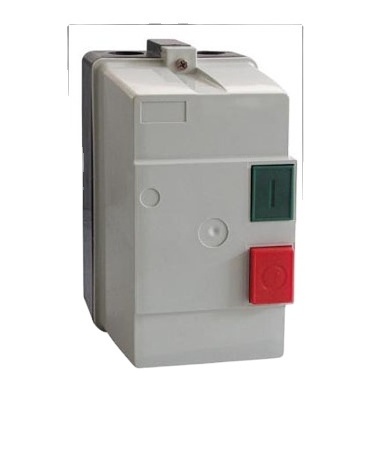

magnetic starter
-
Rated Current:
-
9A-630A
-
Rated voltage:
-
380V 480V 680V AC
-
Number of the Contacts:
-
3P+NC+NO
-
Frequency:
-
50Hz/60Hz 1000VAC/1min
Quick Details
-
Electricity Type:
-
AC
-
Number of Pole:
-
3
-
Phase:
-
3
-
Main Circuit Rating Voltage:
-
380v
-
Main Circuit Rating Current:
-
400A
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HOCH
-
Model Number:
-
LE1-D40, QCX2
-
Product Name:
-
magnetic starter
-
Rated Current:
-
9A-630A
-
Rated voltage:
-
380V 480V 680V AC
-
Number of the Contacts:
-
3P+NC+NO
-
Frequency:
-
50Hz/60Hz 1000VAC/1min
Product Description
HOCH Shift the future.
CJX2 series AC Contactor is suitable for using in the circuits up to the rated voltage 660V AC50Hz or 60Hz, rated current up to620A, for making, breaking, frequently starting & controllingthe AC motor. Combined with the auxiliary contact block, timer delay& machine-interlockingdevice etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter.With the thermal relay, it is combined into the electromagnetic starter. The product conforms to IEC60947-4-1 stardand.
Details Images
Feature
①
Copper foot turn coil
②
32 high-quality iron cores
③ 8 silver alloy contacts
③ 8 silver alloy contacts
Detailed description
Product parameter
|
Type
|
Rated
Current(A)
|
Maximum Power AC3 duty (KW)
|
|
|
|
|
|
|
Suitable Thermal Relay(A)
|
||||||
|
|
|
220V 230V
|
380V 400V
|
415V
|
440V
|
500V
|
660V
|
690V
|
SuitableThermal Relay(A)
|
||||||
|
QCX2-9
|
9
|
2.2
|
4
|
4
|
4
|
5.5
|
5.5
|
5.5
|
JR28 D1312
JR28 D1314
|
||||||
|
QCX2-12
|
12
|
3
|
5.5
|
5.5
|
5.5
|
7.5
|
7.5
|
7.5
|
JR28 D1316
|
||||||
|
QCX2-18
|
18
|
4
|
7.5
|
9
|
9
|
10
|
10
|
10
|
JR28 D1321
|
||||||
|
QCX2-25
|
25
|
5.5
|
11
|
11
|
11
|
15
|
15
|
15
|
JR28 D1322
JR28 D2353
|
||||||
|
QCX2-32
|
32
|
7.5
|
15
|
15
|
15
|
18.5
|
18.5
|
18.5
|
JR28 D2355
|
||||||
|
QCX2-40
|
40
|
11
|
18.5
|
22
|
22
|
22
|
30
|
30
|
JR28 D3353
JR28 D3355
|
||||||
|
QCX2-50
|
50
|
15
|
22
|
25
|
30
|
30
|
33
|
33
|
JR28 D3357
JR28 D3359
|
||||||
|
QCX2-65
|
65
|
18.5
|
30
|
37
|
37
|
37
|
37
|
37
|
JR28 D3361
|
||||||
|
QCX2-80
|
80
|
22
|
37
|
45
|
45
|
55
|
45
|
45
|
JR28 D3363
JR28 D3365
|
||||||
|
QCX2-95
|
95
|
25
|
45
|
45
|
45
|
55
|
45
|
45
|
JR28 D3365
|
||||||
Product display
Application and Use
Mainly used in circuits with AC 50Hz (or 60Hz), voltage up to 660V, and current up to 95A, for remote connection and disconnection of circuits, frequent starting and control of AC motors, and can be combined with appropriate thermal relays to form an electromagnetic starter to protect circuits that may experience operational overload.
Company Introduction
HOCH Group established in 1990 , located in Liushi, Wenzhou. Managing 7 companies. More than 300 specialized cooperation company, and 2000 staff. Specialize in low voltage products,like Mini Circuit Breaker,AC Connector.
Our Vision : HOCH Shift the future.
Certifications
Packing & Delivery
For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Related Products
FAQ
|
Q:what's the payment term?
|
A: 1.We accept TT, 30% deposit and 70% balance agaisnt copy of BL, or palpay and so on. 2. L/C at sight.
|
|
Q: how's the delivery time ?
|
A: usually it will take about 10 working days .
|
|
Q: tell me the standard of package?
|
A: For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
|
|
Q: would you accept to use our logo ?
|
A: If you have good quantity,it absolute no problem to do OEM.
|
|
Q: could you offer Form A ,C/O and From E ?
|
A: It totally not a problem. We can prepare relative documents to foreign affairs office or other office to apply for this certificate.
|
|
Q: where is your market?
|
A: Our products are popular in Midde east , Thailand , Malasia ,italy, Africa ,American, pakistan and so on.Some of them are our
regular customers and some of them are developing. We hope you can join us and make mutural benifit from our cooperation. |
