Quick Details
-
Specification:
-
customized
-
Length:
-
100 meter a coil or as your request
-
Thickness:
-
1-2MM
-
Standard:
-
ROHs
-
color:
-
customized
-
Operating temperature:
-
-70C~+260C
-
property:
-
Anti-corrosive,Non-stick
-
sample:
-
free
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
FBS, FBS
-
Model Number:
-
PTFE corrugated tubing, PTFE corrugated tubing
-
Specification:
-
customized
-
Length:
-
100 meter a coil or as your request
-
Thickness:
-
1-2MM
-
Standard:
-
ROHs
-
color:
-
customized
-
Operating temperature:
-
-70C~+260C
-
property:
-
Anti-corrosive,Non-stick
-
sample:
-
free
Corrugated and Convoluted PTFE, PFA or FEP Tubes & Pipes
PTFE corrugated tubing Specifications
1.Excellent flexibility
2.Chemical resistance
3.High or low temperature resistance
4.UL ROSH

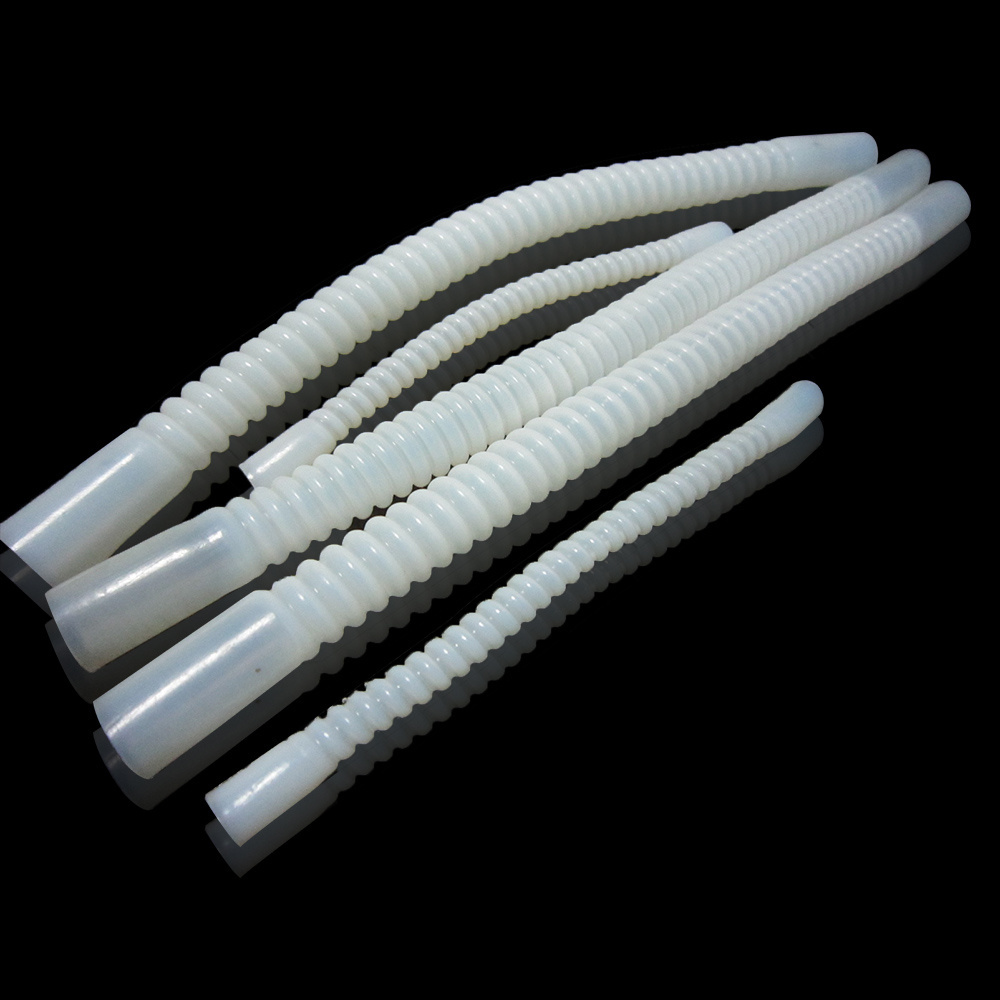

PTFE Teflon corrugated tube:
Applicatons:
- Electrical insulation
- Cryogenics
- Aerospace
- Cable marking
- Thermocouple
Properties:
Operating Temperature: -70C~+260C
Thermal Class:C
Dielectric Strength:50~80Kv/mm
Tensile Strength:33Mpa
Elongation at break:350%
Characteristics:
Very low coefficient of friction
Anti-stick
Flexible
High chemical resistance
Extreme low temperature capabilities
Non flammable
Hydrophobic
Unaffected by oxygen,ozone and UV
PTFE Corrugated Tube Specification
|
NO |
spec. |
ID |
OD |
ID for end |
OD for end |
wall |
|
1 |
DN6 |
4.5 |
8 |
6 |
8 |
1 |
|
2 |
DN8 |
5.3 |
9.8 |
8 |
10 |
1 |
|
3 |
DN9 |
6.2 |
11.2 |
9.5 |
11.5 |
1 |
|
4 |
DN10 |
7.3 |
11.5 |
10 |
12 |
1 |
|
5 |
DN13 |
10.5 |
14.5 |
13 |
15 |
1 |
|
6 |
DN14 |
9.8 |
15.3 |
14 |
16 |
1 |
|
7 |
DN15 |
12.5 |
17.5 |
15 |
18 |
1.5 |
|
8 |
DN16 |
13 |
17.5 |
16 |
18 |
1 |
|
9 |
DN16 |
12 |
18.5 |
16 |
19 |
1.5 |
|
10 |
DN20 |
14 |
22.5 |
20 |
23 |
1.5 |
|
11 |
DN22 |
16 |
24.5 |
22 |
25 |
1.5 |
|
12 |
DN25 |
19.5 |
27.5 |
25 |
28 |
1.5 |
|
13 |
DN32 |
26 |
35 |
32 |
36 |
2 |
