- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
12 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOBBYSKY
-
Model Number:
-
8080
-
Torque:
-
5-7N/m
-
KV value::
-
170-280KV or customize
-
Input voltage::
-
22.2-51.8V
-
Shaft diameter::
-
12 mm
-
maximum::
-
200A
-
Max power::
-
7200W
-
Plug::
-
4.0 banana head (Hall 2.0 5P plug)
-
Weight::
-
1633g
-
Certification:
-
ce/fcc
Quick Details
-
Speed(RPM):
-
4000-9000rpm
-
Continuous Current(A):
-
150(A)
-
Efficiency:
-
90%
-
Warranty:
-
12 months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HOBBYSKY
-
Model Number:
-
8080
-
Torque:
-
5-7N/m
-
KV value::
-
170-280KV or customize
-
Input voltage::
-
22.2-51.8V
-
Shaft diameter::
-
12 mm
-
maximum::
-
200A
-
Max power::
-
7200W
-
Plug::
-
4.0 banana head (Hall 2.0 5P plug)
-
Weight::
-
1633g
-
Certification:
-
ce/fcc
Outline drawing
Products Description
Motor Hall description
Motor phase wire:
C-blue thick
wire
B-black thick
wire
A-red thick
wire
Hall phase wire:
5V red thin wire
Negative-black thin wire
C-orange thin
wire
B-white thin
wire
A-yellow thin
wire
|
MODEL
|
80100
|
|
Body diameter
|
80mm
|
|
Body height
|
100mm
|
|
Shaft diameter
|
12mm
|
|
Flat
|
D type or customize
|
|
Output shaft length
|
40mm
|
|
Top mounting hole distance
|
56mm
|
|
Bottom mounting hole distance
|
26mm
|
|
Mounting hole size
|
M5*4
|
|
Banana head
|
4.0
|
|
Weight
|
1633G
|
|
Maximum power
|
7200W
|
|
Hall wire
|
customize
|
|
No-load current
|
1.1-2A
|
|
Maximum current
|
200A
|
|
Recommended voltage
|
22.2-51.8V
|
|
KV value
|
150-270KV
|
|
No-load speed
|
4000-9000rpm
|
|
Torque
|
7-9N/M
|
Product Description .

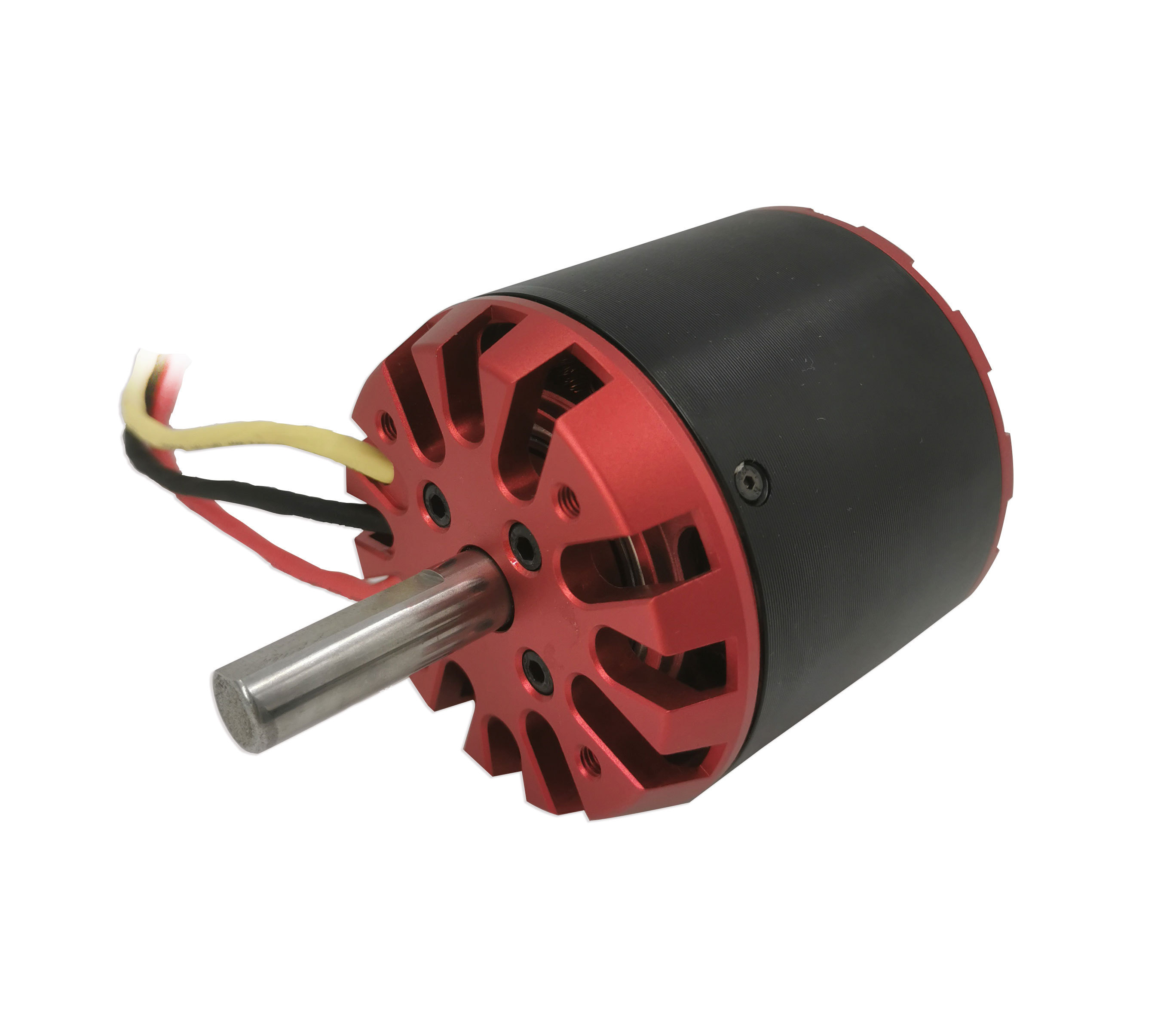

8080 motor is a good choice for assembling off-road scooters or modifying scooters. With high torque and fast speed, 8080 brushless motor can also be used for DIY modification of underwater thrusters and bicycles.
ATTENTION:
1. Please make sure your motor has enough cooling while running.
2. Keep motors away from moisture, dust, scrap and small items to avoid damages.
TIPS:
★ We welcome OEM orders, KV value, motor color, logo all can be customized.
