Quick Details
-
Application:
-
transmiss water,oil,air and so on
-
Certification:
-
ISO CE
-
Cusomized Design:
-
Available
-
Color:
-
Orange,yellow, or customized
-
Warranty:
-
within 3 years
-
Delivery time:
-
our factory has stock
Quick Details
-
Processing Service:
-
Moulding, Cutting
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Henghua
-
Application:
-
transmiss water,oil,air and so on
-
Certification:
-
ISO CE
-
Cusomized Design:
-
Available
-
Color:
-
Orange,yellow, or customized
-
Warranty:
-
within 3 years
-
Delivery time:
-
our factory has stock
Introduction
- Place of Origin: China (Mainland)
- Color:Orange,yellow, or customized
- Material: PE shell with PU foam inside, galvanized or stainless steel fasteners.
- Cusomized Design: Available.

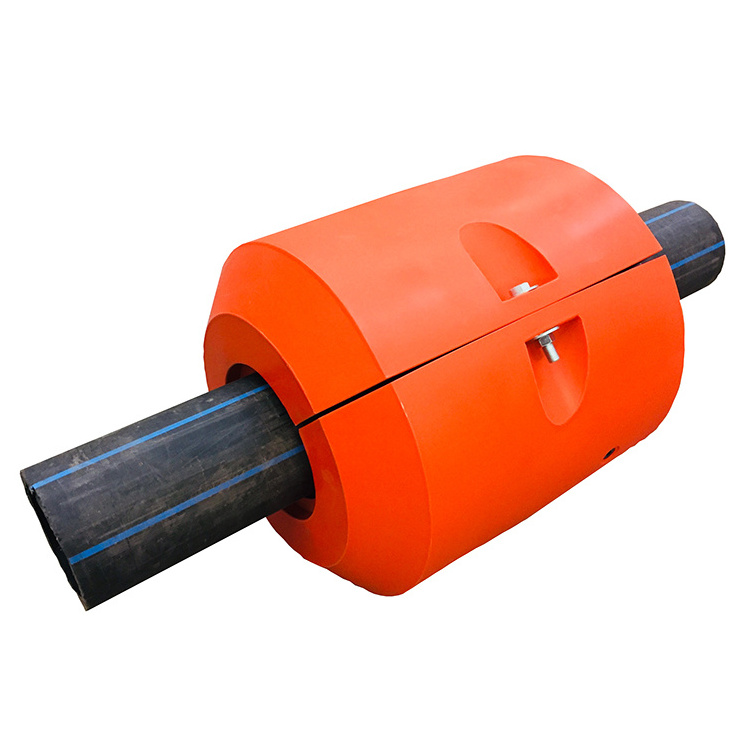

Dredging pipe floats were made by Tianjin Henghua Pipeline Technology Co., Ltd.are made from high wear resistance PE by rotational molding technology. A floater consists of two halves filled with PU foam and connected by galvanized bolts, nuts and washers. The reasonable structure makes it perform well in tough dredging condition.
Dimensions
| Float I.D. (mm) |
Float O.D.(mm) |
Float Length(mm) |
Range Adjustable I.D.(mm) |
|
110 |
300 |
580 |
60mm to 120mm |
|
200 |
500 |
800 |
150mm to 225mm |
|
250 |
700 |
900 |
225mm to 280mm |
|
315 |
850 |
1100 |
280mm to 355mm |
|
355 |
1100 |
1100 |
330mm to 400mm |
|
400 |
1100 |
1200 |
355mm to 450mm |
|
450 |
1200 |
1200 |
400mm to 480mm |
|
480 |
1300 |
1300 |
450mm to 500mm |
|
500 |
1400 |
1400 |
480mm to 520mm |
|
560 |
1400 |
1500 |
510mm to 580mm |
|
630 |
1400 |
1700 |
600mm to 650mm |
|
710 |
1500 |
1800 |
660mm to 750mm |
|
750 |
1600 |
1900 |
710mm to 800mm |
|
800 |
1600 |
2000 |
750mm to 850mm |
|
850 |
1800 |
2200 |
800mm to 900mm |
|
940 |
2200 |
2500 |
900mm to 1000mm |
|
Dimension Tolerance: ±3% Customized dimensions and designs accepted. |
|||
Installation of Dredging pipe floats.
Features
1.Good Toughness, divulsion resistance, shock resistance
2. Low weight, convenient to install, and to demount.
3. Anti-wave, corrosion resistance, aging resistance, and long lifetime.
4. Reuse is available.
If you have any questions or concerns about our products, please feel free to contact us
Our Services:
Designing and manufacturing of customized dredging pipe floats;
Repair package for free if any damage occurs;
Third party inspection is accepted.
OEM / ODM accepted.
Installation:
The installation of the floating body should be used by the plate, bolts and straps are provided from manufacturer. It should be appropriate to loose lead to plastic is not distortion. it should be equipped with double nuts. In installation, we should avoid sharp objects stabbed floating body.
| Hydraulic Hose | Reinforcement | Product Name |
| One steel wire braided | SAE R1AT/DIN 1SN,SAE R1AT/DIN 1ST,DIN 1SNK,DIN/EN 1SN WG,DIN 1SC,SAE R5,SAE 100R17 | |
| Two steel wire braided | SAE R2AT/DIN 2SN,SAE R2AT/DIN 2ST,DIN 2SNK,DIN 2SC | |
| One/two wire braided | SAE R16 | |
| Four steel wire spiral | SAE R9AT,SAE R10,SAE R12,DIN 4SP,DIN 4SH | |
| High flexibility nylon or thermoplastic | SAE R7,SAE R8 | |
| Industrial Hose | Steam hose,Water/Air hose,Fuel/Oil hose,Washer hose | |
| Product Name | Chief Introduction |
| Air Hose | High strength synthetic yarn reinforced |
| Water Hose | High strength synthetic yarn reinforced |
| Oil Hose | Single/double synthetic yarn braided or spiraled |
| Welding Hose | High strength synthetic cord reinforced |
| Gas Hose(LPG Hose) | High tensile synthetic yarn braided or spiraled |
| Heat Resistent Hose | 1 or 2 piles of fiber braid reinforcement |
| Air Condition Hose(Freon Hose) | Strengthen lining is weaving fiber |
FAQ:
1.What hose do you provide?
HENGHUA pipeindustry company offer hundreds of products. Main hose products:
high pressure steel wire braided hose,
high pressure steel wire spiral rubber hose,
steel wire winding hose,
flame retardant,resistance to high temperature and high pressure drilling hose
assembly,marine high pressure oil hose,
expansion pipe,
metal hose,
rollers,
rubber seals,etc
2.What are the product applications?
Mining, hydraulic support, hydraulic system, emulsification pump, construction machinery, coal mine underground water delivery, feng shui working face, water delivery, oil transportation, sand pumping, mud discharge, suction dust, exhaust gas, ash, engine gas pumping, Gas drainage / gas discharge / warm air duct
3.What are your advantages?
High quality, complete specifications, stock in stock. company has passed ISO9001:2015 international quality management system certification, ISO14001:2015 environment management system certification. HOSAS18001:2007 certification of safety management system certification,mining products safety sign,etc.
Products are sold well all over the country, and exported to India,British,Russia,Turkey,Germany, the United States and other countries,favored by the users.
