Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2000*950*2000mm
-
Weight:
-
2000
-
machinery:
-
PP PE PET PVC film plastic bag agglomerator compactor machine
-
blade base:
-
disassembly
-
applicable:
-
PP PE PET PVC film plastic bag agglomerator compactor machine
-
blade:
-
disassembly
-
equipment material:
-
iron for PP PE PET PVC film plastic bag agglomerator compactor machine
-
screw design:
-
single screw
-
Control:
-
By temperature for plastic agglomerator machine
-
Material:
-
PVC, LDPE, HDPE, etc.
-
warranty:
-
1year for PP PE PVC film plastic bag agglomerator compactor machine
-
color:
-
optional for PP PE PVC film plastic bag agglomerator compactor machine
Quick Details
-
Output (kg/h):
-
0 - 1000 kg/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
POKS
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2000*950*2000mm
-
Weight:
-
2000
-
machinery:
-
PP PE PET PVC film plastic bag agglomerator compactor machine
-
blade base:
-
disassembly
-
applicable:
-
PP PE PET PVC film plastic bag agglomerator compactor machine
-
blade:
-
disassembly
-
equipment material:
-
iron for PP PE PET PVC film plastic bag agglomerator compactor machine
-
screw design:
-
single screw
-
Control:
-
By temperature for plastic agglomerator machine
-
Material:
-
PVC, LDPE, HDPE, etc.
-
warranty:
-
1year for PP PE PVC film plastic bag agglomerator compactor machine
-
color:
-
optional for PP PE PVC film plastic bag agglomerator compactor machine
PP PE PET PVC film plastic bag agglomerator compactor machine
Brief description PP PE PET PVC film plastic bag agglomerator compactor machine:
Used plastic agglomerator machine is used to granulate the thermal plastic films, PET fib er s,
whose thickness is less than 2 mm into small g r anules & pellets directly.
Features of used PP PE PET PVC film plastic bag agglomerator compactor machine:
² P ot is welded of high quality stainless steel and blade with special alloy tool steel.
²
Lower noise and high capacity.
Strong design of double-bearing for holding the main shaft.
² Used plastic agglomerator machine blade base and blade can be disassembly, It is easy to
clean and maintenance .
Applicable material: Soft PVC, LDPE, HDPE, PS, PP, foam PS, PET fib er s and other thermoplastics,etc.
Technical parameters of used PP PE PET PVC film plastic agglomerator machine :
( GSL series is mainly used to produce PE, PP and other plastic film etc.)
|
Model |
GSL-100 |
GSL-200 |
GSL-300 |
GSL-500 |
GSL-600 |
GSL-800 |
|
Volume (L) |
100 |
200 |
300 |
500 |
600 |
800 |
|
Effective Volume (L) |
75 |
150 |
225 |
375 |
450 |
600 |
|
Main Motor (kw) |
37 |
55 |
75 |
90 |
90-110 |
110 |
|
Rotation Blade |
2 |
2 |
4 |
4 |
4 |
4 |
|
Fixed Blade |
6 |
6 |
8 |
8 |
8 |
8 |
|
Capacity (kg/h) |
100 |
150 |
200 |
300 |
400 |
550 |
|
Weight (kg) |
1000 |
1200 |
1800 |
2500 |
2700 |
3000 |
|
Dimension (m) |
1.7*0.75*1.5 |
1.7*0.85*1.5 |
2*0.85*1.6 |
2.3*0.95*1.7 |
2.3*1.1*1.75 |
2.5*1.25*1.8 |
|
Pot Material |
Stainless steel |
|||||
|
Blade material |
SKD-11 |
|||||

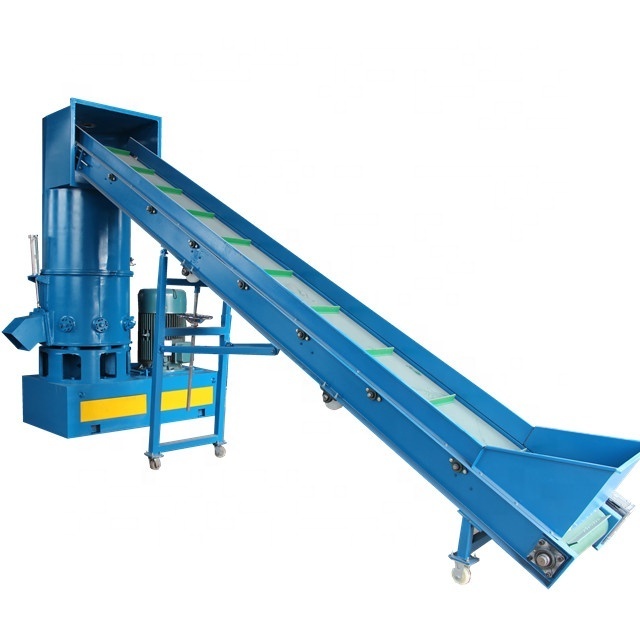

Pictures of used PP PE PET PVC film plastic bag agglomerator compactor machine :
Final products:
Certificate and machine loading picture:
If you want to learn more about used plastic agglomerator machine , pls feel free to contact us !
We will ensure you good quality and factory price.
Hope to receive your inquiry !
