- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUCOO
-
Model Number:
-
YK-DD24S121 YK-DD24S122
-
Output Frequency:
-
/
-
Size:
-

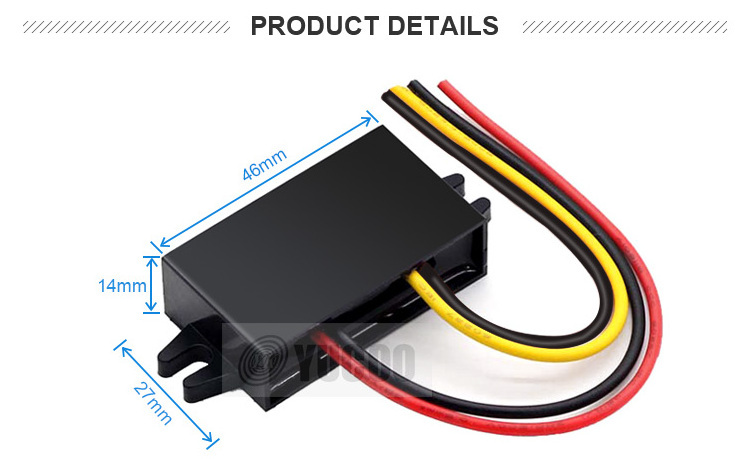

46*27*14mm
-
Weight:
-
30g
-
Certificate:
-
CE ROHS
-
Product name:
-
24v to 12v truck car bus golf cart dc-dc buck step down converter
-
Input voltage range:
-
15-35VDC
-
Rated power:
-
12W/24W
-
Waterproof:
-
IP67
-
Material:
-
Plastic shell
-
Application:
-
Fan/Motor/LED Light/Car/Truck, etc.
-
Protection:
-
Short Circut Protection/Over temperature protection
-
Working Temperature:
-
-20℃ ~ +60℃
-
Conversion Efficency:
-
94%
-
Warranty:
-
1 Year
Quick Details
-
Output Current:
-
1A/2A
-
Network:
-
/
-
Customized support:
-
OEM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YUCOO
-
Model Number:
-
YK-DD24S121 YK-DD24S122
-
Output Frequency:
-
/
-
Size:
-
46*27*14mm
-
Weight:
-
30g
-
Certificate:
-
CE ROHS
-
Product name:
-
24v to 12v truck car bus golf cart dc-dc buck step down converter
-
Input voltage range:
-
15-35VDC
-
Rated power:
-
12W/24W
-
Waterproof:
-
IP67
-
Material:
-
Plastic shell
-
Application:
-
Fan/Motor/LED Light/Car/Truck, etc.
-
Protection:
-
Short Circut Protection/Over temperature protection
-
Working Temperature:
-
-20℃ ~ +60℃
-
Conversion Efficency:
-
94%
-
Warranty:
-
1 Year
Product Description
1. Constant voltage design
2. SMT Process
3. Non-Isolated Module
4. Wide input range
5. Built-in EMI filter, low ripple noise
6.100% full load burn-in test
7. Certificates :CE
8. Waterproof level : IP67
9. Protections: Short circuit/Over load /voltage /Automatic recovery work
10. Ultra compact size, light weight , high reliability
11. 1 year warranty, lifetime up to 100,000 hours
Product Parameters
|
Product Name
|
DC DC Converter
|
|
Model
|
YK-DD24S121 YK-DD24S122
|
|
Input voltage
|
24VDC
|
|
Input voltage range
|
15-35VDC
|
|
Output voltage
|
12VDC
|
|
Output current
|
1A/2A
|
|
Power
|
12W/24W
|
|
Efficiency
|
94%
|
|
Working temperature
|
-40℃~+80℃
|
|
Weight
|
30G
|
|
Size
|
46*27*14MM
|
|
Installation length
|
13-15cm
|
you may also like
Details Images
Recommend Products Range
|
BUCK DC-DC CONVERTER MODEL LIST
|
|
|
|
|||
|
Model Series
|
Input-V
|
Output-V
|
Output Current
|
|||
|
YK-DD1224S5**
|
12V/24V
|
5v
|
3A|5A|10A|15A|20A|30A|40A|50A|60A
|
|||
|
YK-DD24S12**
|
24v
|
12v
|
1.5A|3A|5A|8A|10A|15A|20A|30A|40A|50A|60A|85A|100A
|
|||
|
YK-DD24S13.8**
|
24v
|
13.8v
|
5A|10A|15A|20A|30A|40A|50A|60A
|
|||
|
YK-DD24S19**
|
24v
|
19v
|
5A|10A|15A
|
|||
|
YK-DD36S12**
|
36v
|
12v
|
5A|10A|15A|20A|30A|50A|60A
|
|||
|
YK-DD48S5**
|
48v
|
5v
|
5A|10A|15A|20A
|
|||
|
YK-DD48S12**
|
48v
|
12v
|
5A|10A|15A|20A|30A|50A|60A
|
|||
|
YK-DD48S13.8**
|
48v
|
13.8v
|
5A|10A|15A|20A|30A|40A|50A|60A
|
|||
|
YK-DD48S19**
|
48v
|
19v
|
5A|8A|10A
|
|||
|
YK-DD48S24**
|
48v
|
24v
|
3A|5A|10A|15A|20A|30A|40A|50A
|
|||
|
YK-DD60S12**
|
60v
|
12v
|
5A|10A|15A
|
|||
|
YK-DD60S24**
|
60v
|
24v
|
5A|10A
|
|||
|
BOOST DC-DC CONVERTER MODEL LIST
|
|
|
|
|||
|
Model Series
|
Input-V
|
Output-V
|
Output Current
|
|||
|
YK-DD12S24**
|
12v
|
24v
|
1A|2A|3A|5A|8A|10A|15A|20A|25A|30A|40A|50A
|
|||
|
YK-DD12S19**
|
12v
|
19v
|
5A|8A|10A|15A|20A
|
|||
|
YK-DD12S28**
|
12v
|
28v
|
3A|5A|8A|10A|15A|20A|25A|30A|40A
|
|||
|
YK-DD12S48**
|
12v
|
48v
|
1A|2A|3A|4A|8A|10A|15A|20A
|
|||
|
YK-DD24S48**
|
24v
|
48v
|
3A|5A|10A|20A|30A|40A
|
|||
|
YK-DD24S36**
|
24v
|
36v
|
5A
|
|||
|
BUCK& BOOST DC-DC CONVERTER MODEL LIST
|
|
|
|
|||
|
Model Series
|
Input-V
|
Output-V
|
Output Current
|
|||
|
YK-DD12S12**
|
8-40V
|
12V
|
1A|2A|3A|5A|6A|10A|15A|20A|25A
|
|||
|
YK-DD12S13.8**
|
8-40V
|
13.8v
|
3A|5A|10A|15A|20A|25A
|
|||
|
YK-DD24S24**
|
9-40V
|
24v
|
2A|3A|4A|6A|10A|15A
|
|||
