Sanitary EPDM FKM Buna-N Rubber Tri-Clamp Gaskets for Quick-Clamp Tube Fittings

Sanitary EPDM FKM Buna-N Rubber Tri-Clamp Gaskets for Quick-Clamp Tube Fittings

FOB Reference Price: Get Latest Price

≥100 Pieces

US $0.09

≥500 Pieces

US $0.08

≥1000 Pieces

US $0.07

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Type:: Gasket

Material:: EPDM, FKM, Buna-N

Certificate:: ISO 9001

Color:: White

Size:: DIN, ISO

Temperature:: In Details

Application:: Food Industry, Chemical, Pharmaceutical

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: LSINC

Model Number:: Model-ID*OD

Type:: Gasket

Material:: EPDM, FKM, Buna-N

Certificate:: ISO 9001

Color:: White

Size:: DIN, ISO

Temperature:: In Details

Application:: Food Industry, Chemical, Pharmaceutical

Product Overview

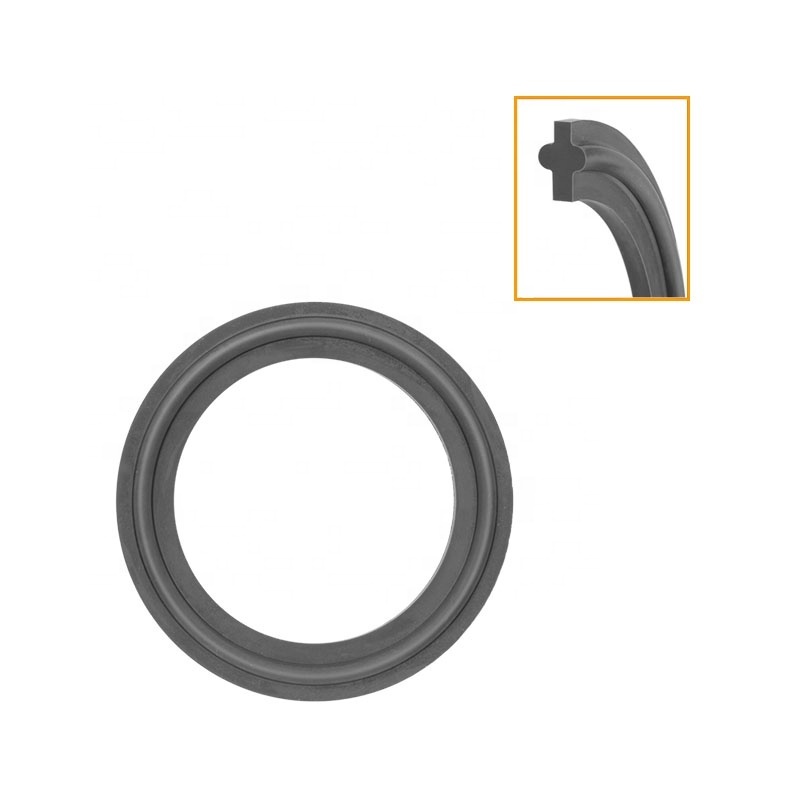

Tri-Clamp Gaskets

Description

A gasket made from rubber: Buna-N, EPDM, FKM.

Advantages

* Wide temperature range

* Excellent chemical resistance

* Good stability

Applications
* Food & beverage
* Chemical
* Medical
* Pharmaceutical

Detail Images

Tri-Clamp Gasket Comparison Guide

Gasket	Temperature Range	Recommended Usage	Not Recommended	Industry
NBR (Nitrile)	-35°F to 250°F (-40°C to 120°C)	Water, Oils, Fuels	Ketones, Strong Acids, Sunlight, Ozone, Weathering	Food & Beverage
EPDM (Ethylene Propylene)	-65°F to 300°F (-54°C to 150°C)	Sunlight, Weathering, Hot Water, Steam, Select Acids/Bases, Alcohols	Oils, Fuels	Bio-Pharmaceutical, Food & Beverage, Drinking Water
PTFE (Teflon®)	-100°F to 450°F (-74°C to 230°C)	Chemical, Heat, Pressure Applications	Stretching, Elasticity	Chemical Processing
FKM (Viton®)	-15°F to 437°F (-25°C to 220°C)	Vacuum, Most Acids / Chemicals, Oils, Fuels	Ketones, Ammonia, Hot Water / Steam	Chemical Processing

Nominal Dimensions

For small size tubes

Class A: DN 6 to DN 8;

Class B: DN/OD 10.2 to DN/OD 17.2;

Class C: DN/OD 1/4" to DN/OD 3/4".

For standard size tubes

Class A: DN 10 to DN 200;

Class B: DN/OD 21.3 to DN/OD 219.1;

Class C: DN/OD 1" to DN/OD 6".

CLASS A - Metric Standard Gaskets

Dimensions in millimeter

DN Sizes	Outside Diameter (d3)	Groove (d4)	Inside Diameter (d5)	Height (h)
6	25	20.2	≥6.2	4.5
8	25	20.2	≥8.2	4.5
10	34	27.5	≥10.2	5.5
15	34	27.5	≥16.2	5.5
20	34	27.5	≥20.2	5.5
25	50.5	43.5	≥26.2	5.5
32	50.5	43.5	≥32.2	5.5
40	50.5	43.5	≥38.2	5.5
50	64	56.5	≥50.2	5.5
65	91	83.5	≥66.2	5.5
80	106	97	≥81.2	5.5
100	119	110	≥100.2	5.5
125	155	146	≥125.2	5.5
150	183	174	≥150.2	5.5
200	233.5	225	≥200.2	5.5

CLASS B - DN/OD Metric Gaskets

Dimensions in millimeter

DN/OD Metric (d1)	Outside Diameter (d3)	Groove (d4)	Inside Diameter (d5)	Height (h)
10.2	25	20.2	≥7.2	4.5
13.5	25	20.2	≥10.5	4.5
17.2	25	20.2	≥14.2	4.5
21.3	50.5	43.5	≥18.3	5.5
26.9	50.5	43.5	≥23.9	5.5
33.7	50.5	43.5	≥29.9	5.5
42.4	64	56.5	≥38.6	5.5
48.3	64	56.5	≥44.5	5.5
60.3	77.5	70.5	≥56.5	5.5
76.1	91	83.5	≥72.3	5.5
88.9	106	97	≥84.5	5.5
114.3	130	122	≥109.9	5.5
139.7	155	146	≥134.7	5.5
168.3	183	174	≥163.3	5.5
219.1	233.5	225	≥214.1	5.5

CLASS C - DN/OD Inch Gaskets

Dimensions in millimeter

DN/OD Inch (d1)	Outside Diameter (d3)	Groove (d4)	Inside Diameter (d5)	Height (h)
1/4"	25	20.2	≥4.8	4.5
3/8"	25	20.2	≥8	4.5
1/2"	25	20.2	≥9.6	4.5
3/4"	25	20.2	≥16	4.5
1"	50.5	43.5	≥22.3	5.5
1 1/2"	50.5	43.5	≥35	5.5
2"	64	56.5	≥47.7	5.5
2 1/2"	77.5	70.5	≥60.4	5.5
3"	91	83.5	≥73.1	5.5
4"	119	110	≥97.6	5.5
6"	167	156.5	≥147.1	5.5
