Quick Details
-
Brand Name:
-
Taiji
-
Model Number:
-
Tj-ka01
-
Engine:
-
DC 24v motor
-
Drive Mode:
-
clockwise
-
Wheel Size:
-
your size
-
Oil Tank Capacity:
-
your size
-
Maximum Speed:
-
1800rm/min
-
Displacement:
-
230
-
Brake Type:
-
magnetic powder, electromagnetic
-
Torque:
-
40 Nm
-
Voltage:
-
DC 24 V
-
Power:
-
25 w
-
Shaft diameter:
-
25/30 mm
-
Key way 1:
-
7 3.3
-
External diameter:
-
150 mm
-
Net weight:
-
2.76 KG
-
Maximum frequency:
-
120 time / Munite
-
Packaging:
-
standard carton
-
Certification:
-
CE
Quick Details
-
Type:
-
Go Karts Accessories
-
Engine Capacity:
-
201-500cc
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Taiji
-
Model Number:
-
Tj-ka01
-
Engine:
-
DC 24v motor
-
Drive Mode:
-
clockwise
-
Wheel Size:
-
your size
-
Oil Tank Capacity:
-
your size
-
Maximum Speed:
-
1800rm/min
-
Displacement:
-
230
-
Brake Type:
-
magnetic powder, electromagnetic
-
Torque:
-
40 Nm
-
Voltage:
-
DC 24 V
-
Power:
-
25 w
-
Shaft diameter:
-
25/30 mm
-
Key way 1:
-
7 3.3
-
External diameter:
-
150 mm
-
Net weight:
-
2.76 KG
-
Maximum frequency:
-
120 time / Munite
-
Packaging:
-
standard carton
-
Certification:
-
CE
Taiwan Brand-Tianji
Reliable Quality,Reasonable Price and Good Service.
Any email will be replied with 24 hours. Thanks for your time!
| PRODUCT DETAILS |
This clutch product is designed by professional engineers with many years of experiences, and production using CNC boring and finishing machines,and be proved good in all using.
We use the finest materials available for magnetic components to yield high friction indexes,as well as premium non-asbestos linings to improve response time and extend working life.
We will be reliable clutch supplier for you.
It is compatible with overall general industrial machinery and the rational design offers good performance.
| Parameter TJ-A | |||||||
| MODEL | TJ-A-0.6 | TJ-A-1.5 | TJ-A-2.5 | TJ-A-5 | TJ-A-10 | TJ-A-20 | TJ-A-40 |
| Static Friction Torque(Nm) | 5.5 | 11 | 22 | 45 | 90 | 175 | 350 |
| Dynamic Friction Torque(Nm) | 5 | 10 | 20 | 40 | 80 | 160 | 320 |
| Power (W) 24V 20°C | 11 | 15 | 20 | 25 | 35 | 45 | 60 |
| Weight (kg) | 0.46 | 0.83 | 1.5 | 2.76 | 5.1 | 9.3 | 17 |
|
|||||||
|

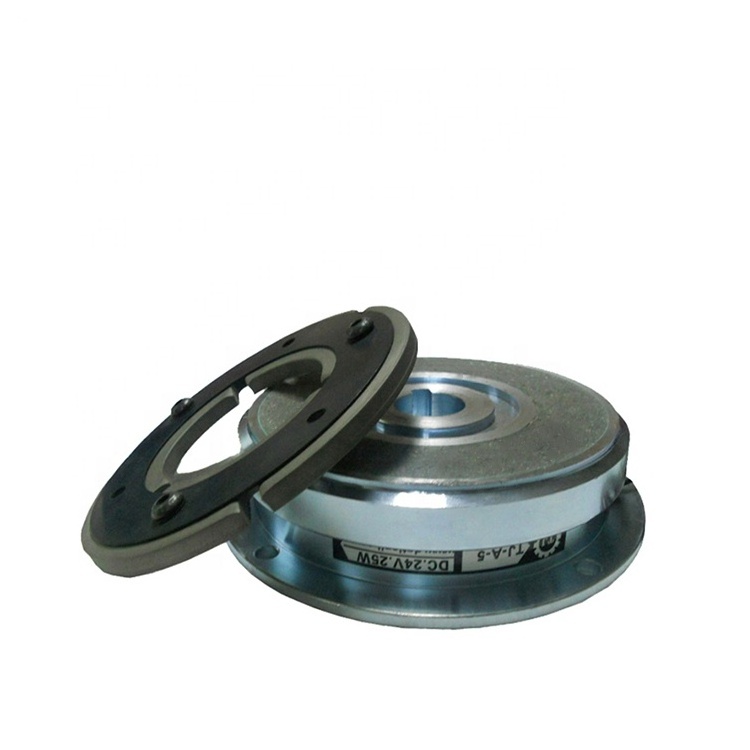

go kart clutch Detail
Special features 1. Fast response. Dry design means instant reaction to commands. 2. Durability. Excellent heat dissipation and quality materials mean long life, even under high frequency and high performance conditions. 3. Easy to install and maintain. Sealed bearing race eliminates the need for removal of the center core. No dust brush is needed, and operation is simper and easier. 4. No adjustment of the motor. The motor is designed so that it does not need adjustment of the friction surface, and once it is installed only very minor adjustments are needed. 5. Sure motion. One-piece plate will not slip even under the strongest vibration for longer life. 6. Adjustable torque. Torque levels can be increased or decreased by changing the current, making it suitable for a variety of applications. |
