Quick Details
-
Positioning Accuracy (mm):
-
0.05 mm
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QDZD
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
3050*2100*1650mm
-
Weight (KG):
-
3000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
ZD1325A Automatic knife change CNC router machine
-
Key word:
-
CNC router
-
Function:
-
Drilling, Grooving, Cutting and so on
-
XYZ working stroke:
-
1300*2500*200 mm
-
Max. unloading speed:
-
80000 mm/min
-
Max. working speed:
-
13000 mm/min
-
Software operating environment:
-
Windows98/2000/XP/WIN7 32
-
Dust collector:
-
Double bags
Quick Details
-
Working Table Size(mm):
-
2000×4000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
18000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.05 mm
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.02 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
QDZD
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
3050*2100*1650mm
-
Weight (KG):
-
3000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
ZD1325A Automatic knife change CNC router machine
-
Key word:
-
CNC router
-
Function:
-
Drilling, Grooving, Cutting and so on
-
XYZ working stroke:
-
1300*2500*200 mm
-
Max. unloading speed:
-
80000 mm/min
-
Max. working speed:
-
13000 mm/min
-
Software operating environment:
-
Windows98/2000/XP/WIN7 32
-
Dust collector:
-
Double bags

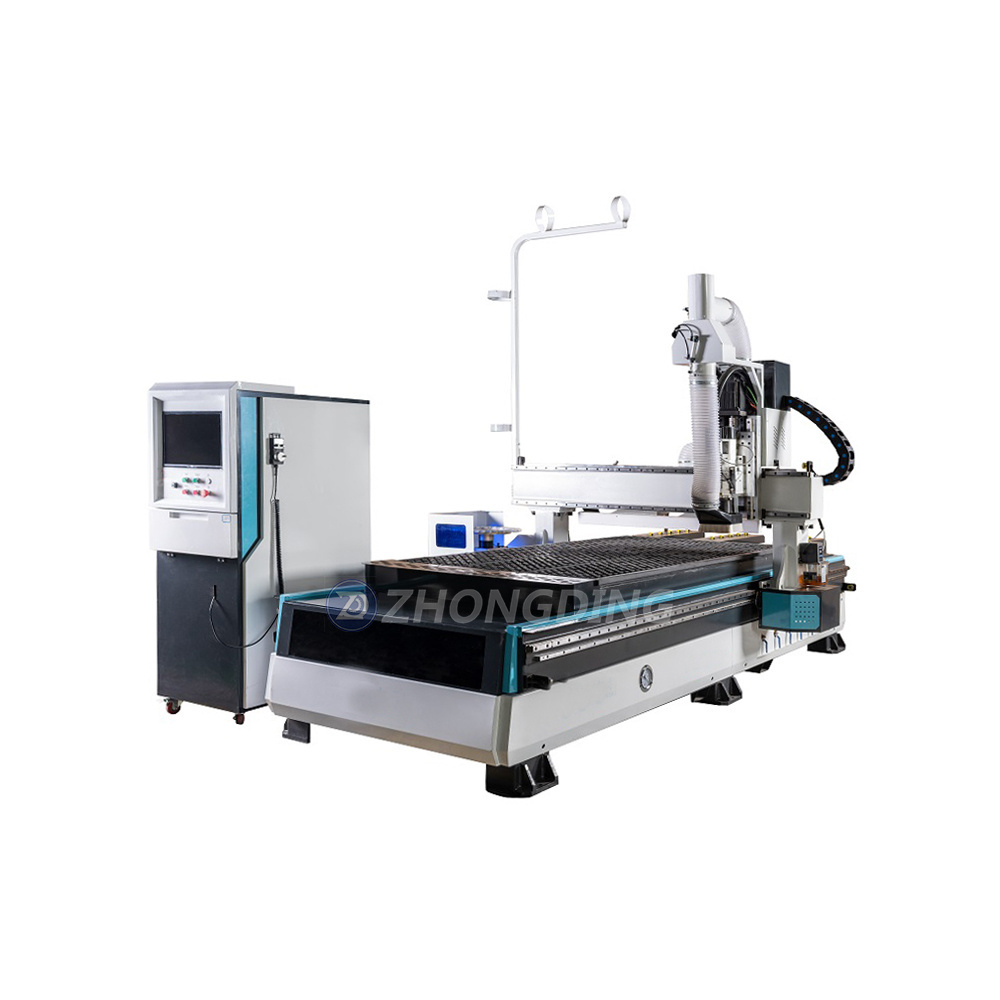

ATC Cabinet Door CNC Router Machine For Woodworking Furniture With Disc Round Tools changer
Cabinet door modeling, engraving, engraving and milling, cutting and other functions. The blanking machine optimizes cutting, drilling vertical holes, and automatic blanking in one step, without interruption in the process, and maximizes the efficiency and output.
Applicable industries for cabinet door engraving: panel furniture, cabinet doors, cabinet doors, molded doors, plastic door panels, office furniture, custom furniture
|
Model
|
ZD1325 - Atc cnc router with Disc round tool magazine
|
|
|
|
Working stroke
|
1300*2500*200mm
|
|
|
|
Running Speed
|
80m/min
|
|
|
|
Working Speed
|
25m/min
|
|
|
|
Device architecture
|
After sand blasting and stress relief annealing treatment, it is processed by CNC gantry CNC one-time forming and processing. The
structure is stable, the precision is high, and it is not deformed for a long time. |
|
|
|
Precision
|
±0.05mm
|
|
|
|
Spindle power
|
9kW automatic tool changer spindle Air Cooled HQD/CC
|
|
|
|
Number of tools
|
12/16
|
|
|
|
Servo drive system
|
Three-axis 1.8kw high speed Syntec servo motor / Z axis + brake
|
|
|
|
Control System
|
Taiwan Syntec processing center dedicated control system
|
|
|
|
Speed reduction mechanism
|
Precision transmission of Japan Shimpo NS grade helical gear reducer
|
|
|
|
Rack and pinion
|
Germany alloy hardened helical rack + gear
|
|
|
|
Rail screw
|
Taiwan Lepin-30 guide rail + TBI double thread high precision screw
|
|
|
|
Positioning way
|
3+2 high-precision automatic positioning cylinder pedal-type one-key positioning device
|
|
|
|
Bed structure
|
High-precision heavy-duty side-mounted bed, processed by large-scale CNC five-face milling center
|
|
|
|
|
|
|
|
|
Countertop structure
|
Double-layer vacuum adsorption of 6 large partitions, multi-point adsorption / multi-slot design / adsorption uniform / instantaneous
adsorption / instant release |
|
|
|
Electrical accessories
|
Japan imported OMRON relay, France Schneider relay alternate use
|
|
|
|
Maintainance
|
Automatic oiling system
|
|
|
High-precision HQD/CC（Can choose HSD etc.) spindles for power and flexibility. Perfect for milling, boring, and cutting applications. Handles a wide range of materials, including wood, plastic, and aluminum.
High-precision HQD/CC（Can choose HSD etc.) spindles for power and flexibility. Perfect for milling, boring, and cutting applications. Handles a wide range of materials, including wood, plastic, and aluminum.
Round disc type automatic tool changer, a total of 12(Can be customized to16) tools --- The linear tool changer can save more tool change time. We use a servo motor with a reducer to change the tool faster.
Round disc type automatic tool changer, a total of 12(Can be customized to16) tools --- The linear tool changer can save more tool change time. We use a servo motor with a reducer to change the tool faster.
Double-layer PVC vacuum table design, strong structure, no deformation, with instant adsorption and instant release functions.
Helical rack and pinion drives provide accurate and dynamic acceleration. Positioning cylinder and automatic tool setting instrument.
Their durable design ensures a long service life with minimal maintenance. Capable of precisely moving heavy loads.
Independent computer control cabinet.
Syntec/Weihong conrol sytem from taiwan.
We advise the latest model 60WA Syntec System which could use touch screen
Disc automatic tool change + row drilling Spindle
This is the most efficiency combination.
Automatic loading/unloading device.
Extreme efficiency and labor cost savings.
Qingdao Zhongding Machinery Co., Ltd is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
Our products mainly include CNC machine , Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.
Our products mainly include CNC machine , Precise Panel Saw, Edge Banding Machine, Multiple Drilling Machine, Press Machine etc., which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East, North America, and Australia.
We have established complete sales system.Our company has got ISO9001 international system certificate and CE security certificate.
PACKAGE:
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
LCL SHIPMENT: Use plastic foam protect ,then ply wooden case package.
FCL: If the equipment enough packagewith 20"or 40" container ,will use plastic foam package and wooden pallet.
SHIPPING TERMS:
1. We can arrange the shipping by sea, by air ,by truck and train based on your requirements, but kindly remind the refrigerant gas can't allowed by air ,so you must filling them whenmachine arrive if you choose the air ship.
2. FOB,CNF,CIF,DDU can be accepted.
3. Any port of CHINA we can sent ,if you have other goods will packaged in one container ,we would like to arrange that for you.
