Spinner Hanger Hook System
Spinner Hanger Hook:
To hang work pieces or tooling
Driving Motor:
To drive spinner hanger hooks to rotate&move along rails into or out.
Overhead Rails:
T shaped is for one hook and Y shaped is for two hooks
Rotating & Blasting Time:
3-5 minutes according to different work pieces
- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
8000 KG
-
Power:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Product name:
-
Steel Shot Blasting Machine
-
Application:
-
steel workpieces shot blasting cleaning
-
Type:
-
Shot Blasting Machine Equipment
-
Function:
-
Metal Surface shot blast Cleaning
-
Color:
-
Custermized
-
Machine:
-
Steel Surface Treatment Machine
-
Certification:
-
ce
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Name:
-
Granalladora/Shot Blasting Machine
Quick Details
-
Place of Origin:
-
Shandong,China(Mainland)
-
Brand Name:
-
Puhua
-
Marketing Type:
-
Hot Product 2022
-
Weight (KG):
-
8000 KG
-
Power:
-
Customized
-
Dimension(L*W*H):
-
Customized
-
Product name:
-
Steel Shot Blasting Machine
-
Application:
-
steel workpieces shot blasting cleaning
-
Type:
-
Shot Blasting Machine Equipment
-
Function:
-
Metal Surface shot blast Cleaning
-
Color:
-
Custermized
-
Machine:
-
Steel Surface Treatment Machine
-
Certification:
-
ce
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Name:
-
Granalladora/Shot Blasting Machine

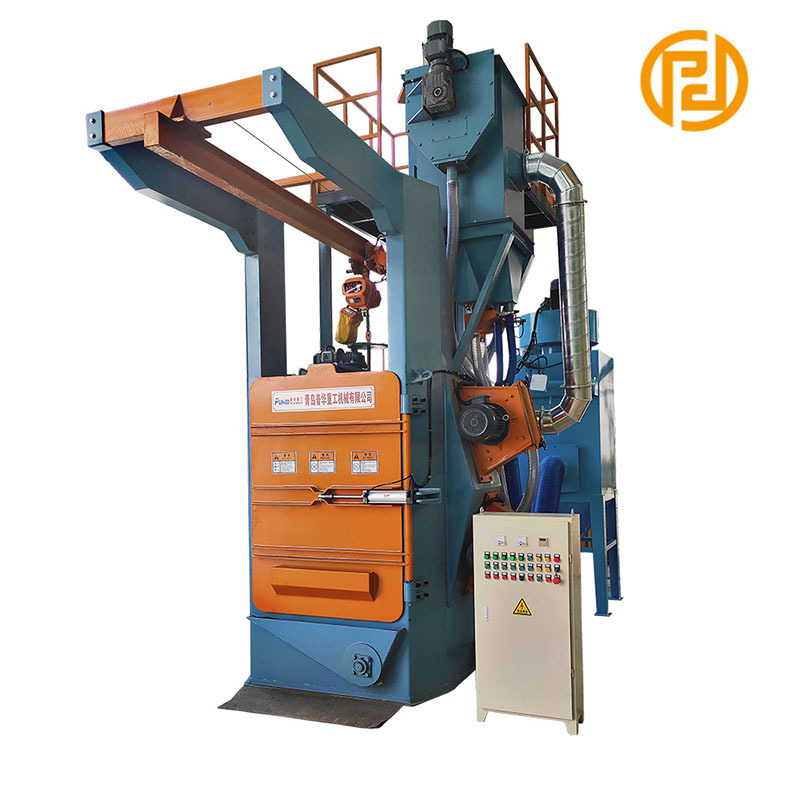

Customizable Hook Shot Blasting Machine With Strong Shot Blasting Performance
Q37 Series Hook Type Shot Blasting machine is for surface cleaning or strengthening treatment of small castings, forging
parts in industry of foundry, building, chemical, motor, machine tool etc. It is special for surface cleaning and blasting strengthening on various types, small production castings, forging parts and steel construction parts for clearing little viscous sand, sand core and oxide skin. It is also suitable for surface cleaning and strengthening on heat treatment parts, especially for cleaning slightness, thin wallparts which is not suitable for impact.
Spinner Double Hanger Hook Type Shot Blasting Machine is blast cleaning equipment for casting parts, forging parts and small fabricated metal work pieces. Bigger work pieces can be put on hanger hook uniquely. Smaller work pieces will be put on special tooling and then put on hnger hooks. After loading work pieces, hanger hooks will be driven into blasting chamber along T or Y overhead rails. Work pieces are rotating in blasting chamber to get steel shot impact from blasting wheels mounted on one side chamber wall. The other side of chamber wall is called hot area because it get strong abrasive flow. Hot area is protected by Mn alloy liners. After 3-5 min blast cleaning, work pieces will go out along T or Y overhead rails.
Main Features
This series is hook type shot blasting machine, is mainly used for surface cleaning of casting, structure, non-ferrous and other parts. This series shot blasting machine have many types, such as single hook type, double hook type, lifting type, non-lifting type. It has advantage of non-pit, compact structure, high productivity, etc.
1). The equipment is mainly applied in the processing of medium and small size workpieces in large scale. It has the advantage of high efficiency, compact structure.
2). Workpieces can be transported continuously. The working procedure is that, setting the speed, hanging workpieces over the hooks, and removing them after shot cleaning.
3). Each single hook can hang weight from 10 kgs to 5000 kgs with high productivity and stable running.
4). It makes a best effect on complicated workpieces both the surface and inner part, such as cylinder cap of engine and motor casing.
5). It is an ideal choice for auto, tractor, diesel engine, motor and valve industry.
sh
Customized any kinds of shot blasting machine according to your detail requests
|
Item
|
Unit
|
Q376
|
Q376B
|
Q378C
|
Q3710
|
Q3720
|
Q3730
|
Q3750
|
|
Maximum weight of cleaning
|
kg
|
500
|
600
|
800
|
1000
|
2000
|
3000
|
5000
|
|
Abrasive flow rate
|
kg/min
|
2*200
|
2*200
|
2*250
|
2*250
|
3*250
|
3*250
|
4*250
|
|
Ventilation on capacity
|
m³/h
|
5000
|
5000
|
5000
|
5000
|
9000
|
11000
|
14000
|
|
Lifting amount of elevating conveyor
|
t/h
|
24
|
24
|
30
|
30
|
45
|
45
|
60
|
|
Separating amount of separator
|
t/h
|
24
|
24
|
30
|
30
|
45
|
45
|
60
|
|
Max overall dimensions of suspender
|
mm
|
600*
1200 |
700*
1200 |
1000*
1600 |
1200*
1800 |
1400*
2200 |
1600*
2300 |
1800*
2500 |
Detail technical data,pls confirm with supplier.
We can design and manufacture all kinds of non-standard shot blasting machines
According to customers' different work piece detail requirements ,weight and productivity .
Blasting Wheels: Mounted on left side wall of blasting chamber. Angle will be customized according to work pieces.
Hot Area: Right inside of blasting chamber is called hot area protected by Mn alloy liners.
Doors: Manual or pneumatic type are available.
Abrasive Recycling System
Screw Conveyor: Mounted at basting chamber bottom to collect used steel shots and deliver to bucket elevator.
Bucket Elevator: To lift up used sheet shots to separator.
Separator: To separator qualified steel shots and grits by screen filtering and ventilation filtering.
Dust Collection System
Fan: Suck dust from blasting chamber through pipes.
Gravity Dust Collector: Catch big particle size dust by gravity as first sate dust collection.
Dust Collection: Bag type & cartridge type according to different filters. Efficiency: 99.9%
Fan: Suck dust from blasting chamber through pipes.
Gravity Dust Collector: Catch big particle size dust by gravity as first sate dust collection.
Dust Collection: Bag type & cartridge type according to different filters. Efficiency: 99.9%
Model: Automatic ( manual type is available).
Control Unit: PLC.
Emergency Stop: on main control panel and rollers conveyors.
Power Indicator: available on control panel.
1. Installation and commissioning issue:
We will send 1-2 technicians to assist with machine installation and commissioning,
customer pays for their tickets, hotel and diet, etc Customer need arrange
3-4 skilled worker and prepare insallation machinery and tools.
2. Warranty time:
12 months from date of commissioning completion, but no more than 18 months from date of delivery.
3. Supply full English documents:
including foundation drawings, manual book, electric wiring diagram, electric manual book and maintenance book,etc.
Customized any kinds of shot blasting machine according to your detail requests
