Quick Details
-
Brand Name:
-
SUHUA
-
Model Number:
-
brass ball
-
Product name:
-
cheap H62 H65 8mm solid brass ball sphere china supplier
-
Size:
-
8mm
-
Size range:
-
1-50mm
-
Grade:
-
G500-G1000
-
Standard:
-
AISI DIN JIS BS
-
Certification:
-
ISO; BV; TS16949; RoHS
-
Hardness:
-
Rockwell B75-87
-
Surface:
-
High Polished
-
Package:
-
Plastic Bag+Box+Carton
-
Application:
-
Bearing, Electrical devices...
Quick Details
-
Applicable Industries:
-
Machinery Repair Shops, Food & Beverage Factory, Home Use, Retail, Construction works
-
Material:
-
Brass
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SUHUA
-
Model Number:
-
brass ball
-
Product name:
-
cheap H62 H65 8mm solid brass ball sphere china supplier
-
Size:
-
8mm
-
Size range:
-
1-50mm
-
Grade:
-
G500-G1000
-
Standard:
-
AISI DIN JIS BS
-
Certification:
-
ISO; BV; TS16949; RoHS
-
Hardness:
-
Rockwell B75-87
-
Surface:
-
High Polished
-
Package:
-
Plastic Bag+Box+Carton
-
Application:
-
Bearing, Electrical devices...

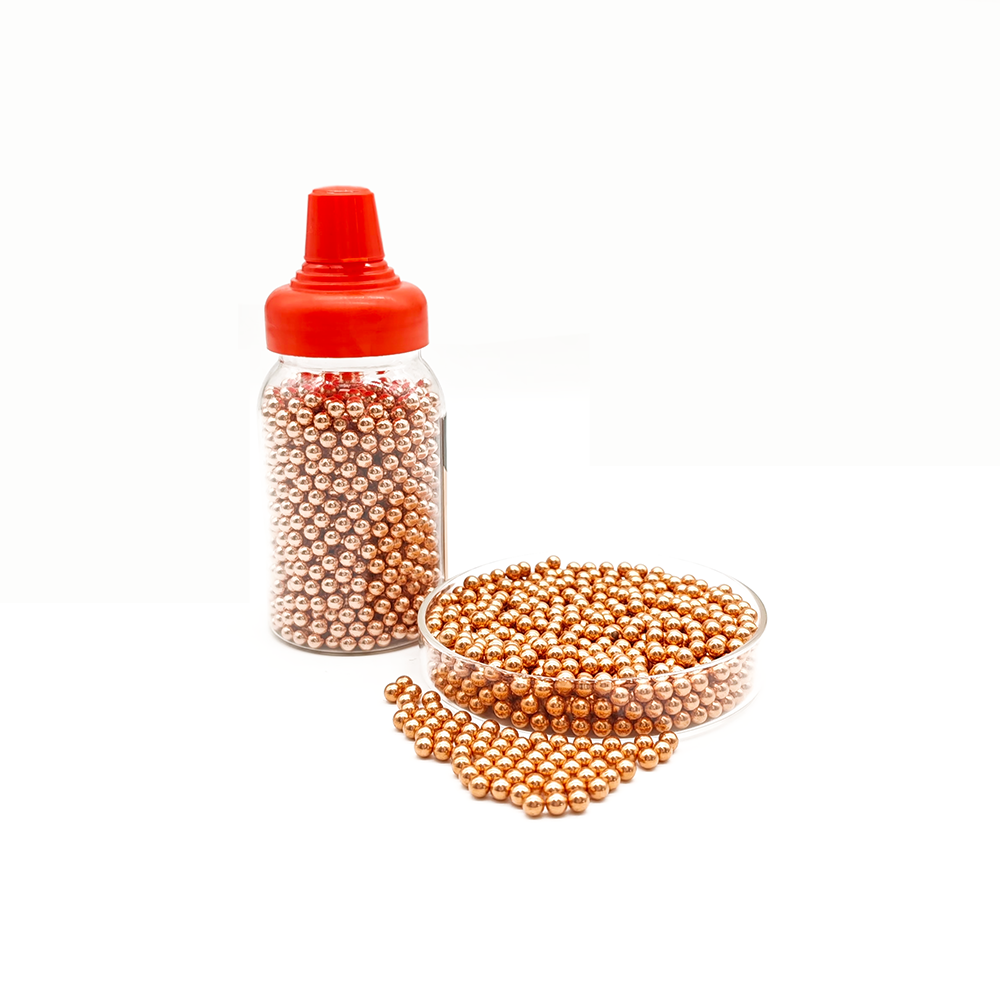

Product Description
| Brass Ball | ||||||
| 1. Material | H62, H65 | |||||
| 2.Size Range | 1-50mm | |||||
| 3.Grade | G500-G1000 | |||||
| 4.Hardness | HRB 75-87 | |||||
| 5.Characteristic | Good corrosion resistance in ambient air and sea water | |||||
| 6.Applications | Valve,industrial pump,electronic devices,furniture rails. | |||||
| 7.Magnetic | Nearly non-magnetic | |||||
| 8.Packing | Standard 10kgs or 20kgs per carton | |||||
| 9.Conditioning | Dry | |||||
| 10.Delivery time | Stock within a short time or 35 days | |||||
|
CHANGZHOU HUARI STEEL BALL CO., LTD. |
||||||
| Grade: G10 to G1000 | |||||
| Grade | ball diameter | spherical | surface | lot diameter | nomainal ball |
| variation | deviation | roughness | variation | deviation tolerance | |
| Vdws | Sph | Ra | Vdwl | Tdn | |
| not over | |||||
| μm | |||||
| 10 | 0.25 | 0.25 | 0.02 | 0.5 | * |
| 16 | 0.4 | 0.4 | 0.025 | 0.8 | * |
| 20 | 0.5 | 0.5 | 0.032 | 1 | * |
| 24 | 0.6 | 0.6 | 0.04 | 1.2 | * |
| 28 | 0.7 | 0.7 | 0.05 | 1.4 | * |
| 40 | 1 | 1 | 0.06 | 2 | * |
| 60 | 1.5 | 1.5 | 0.08 | 3 | * |
| 100 | 2.5 | 2.5 | 0.1 | 5 | ±12.5 |
| 200 | 5 | 5 | 0.15 | 10 | ±25 |
| 500 | 12.5 | 12.5 | * | 25 | ±50 |
| 1000 | 25 | 25 | * | 50 | ±125 |
