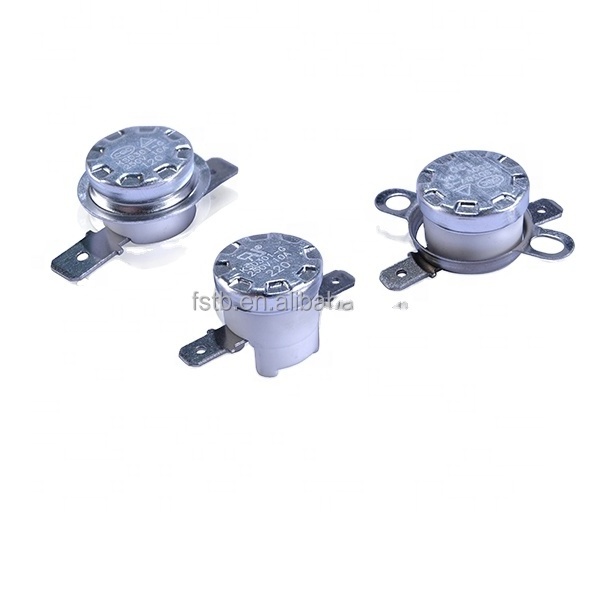

FSTB KSD301 Snap Action Ceramic Thermostat 16A 10A 250V Coffee Maker parts
KSD301-G series snap-action thermostat is a kind of miniature hermetically sealed bimetal temperature switch (1/2" disc). It is of single-pole single-throw structure and works under resistive load. KSD301 thermostat is in wide use in a great variety of compact type home appliances, such as coffee maker, water dispenser, toaster, microwave oven, electric pad and portable icebox etc., to provide temperature control or temperature protection.(thermal cutoff switch)
Advantages:
- Easy mounting.
- Rapid heat transmission.
- High durability.
- No breakdown, no flashover.
- Every product will be tested, extremely high temperature pass rate.
- High precision.
Parameter:
|
Use |
Temperature control/Overheat protection |
|
Appliance |
Coffee maker/ Drinking machine/toaster/Microwave oven/ Heating/ Portable Refrigerator/etc |
|
Reset type |
Automatic |
|
Base material |
ceramic base |
|
Amperage |
5A/10A/16A |
|
Max. Operating Temperature |
220 °C |
|
Differential |
Refer to the regulation |
|
Tolerance |
Refer to the regulation |
|
Protection class |
IP00 |
|
Contact material |
Silver/Gold |
|
Dielectric Strength |
Parts between electriferous components and non-electriferous ones can bear 2000V (3750V for Reinforced insulation type) 50Hz AC current, which is nearly sine wave, for one minute as bearing test. Resulted no breakdown, no flashover. |
|
Insulation Resistance |
With a DC 500V megger, borne DC 500V, the tested value is over 10M W . |
|
Resistance Between Terminals |
Below 50m W |
|
Temp. characteristics: |
Normal type: OFF temperature higher than ON temperature.(Normal close) K type: ON temperature higher than OFF temperature.(Normal open) One-shot type: The thermostat switches on at room temperature and it won’t be able to reset after switching off. |
|
Maximum ambient temperature |
280 °C (Long period) 310 °C (Less than 15 min) |
|
Diameter of bimetal disc |
F 12.8mm ( 1/2″ ) |
|
Approvals |
UL/CQC/TUV |
|
Terminal type |
Customized (Refer to our specification) |
|
Cover/Bracket |
Customized (Refer to our specification) |
Dimension of the main body:
Safety certificate:
|
Max. OT |
Life |
250V 5A |
250V 10A |
125V 16A |
250V 16A |
|
150 ° C |
100,000 |
UL, sec. 2 |
UL, sec. 4 |
UL, sec. 4 |
|
|
160 ° C |
100,000 |
|
CQC,TÜV |
|
|
|
190 ° C |
30,000 |
CQC |
|
|
|
|
60,000 |
|
CQC |
|
TÜV |
|
|
220 ° C |
30,000 |
|
CQC,TÜV |
|
|
|
100,000 |
|
UL, sec. 2 |
UL, sec. 2 |
|
Installation and Direction for Use:
- Method of earth: By means of the metal cup of thermostat connected in the earthing metal part.
- The thermostat should work in environment with humidity not higher than 90%, free of caustic, flammable gas and conducting dust.
- When the thermostat is used to sense the temperature of solid items, its cover should be clung to the heating part of such items. Meanwhile, heat-conducting silicon grease, or other heat media of similar nature, should be applied to the cover’s surface.
- If the thermostat is used to sense the temperature of liquids or steam, it is strongly recommended to adopt a version with stainless-steeled cup. Moreover, cautious measures should be taken to prevent liquids getting into/onto the thermostat’s insulation parts.
- The top of the cup must not be pressed to sink, so as to avoid adverse effect on the thermostat’s temperature sensitivity or its other functions.
- Liquids must be kept out of the thermostat’s inner part! The base must avid any force that could lead to crack; it should be kept clear and away from the pollution of electric substance to prevent insulation weakening that leads to short-circuited damages.
- The terminals should be bent, or else, the reliability of electric connection will be influenced.
