Quick Details
-
Power:
-
2.2kw
-
Table Size:
-
1430*1000mm
-
Weight:
-
650 kg
-
Marketing Type:
-
hot product
-
Type:
-
ELEVATORS
-
speed:
-
100mm
-
noise:
-
low
-
color:
-
optional
-
safety device:
-
wire rope
-
limit switch:
-
double limit switch
-
material of platform:
-
slip- proof aluminum alloy
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Moral
-
Power:
-
2.2kw
-
Table Size:
-
1430*1000mm
-
Weight:
-
650 kg
-
Marketing Type:
-
hot product
-
Type:
-
ELEVATORS
-
speed:
-
100mm
-
noise:
-
low
-
color:
-
optional
-
safety device:
-
wire rope
-
limit switch:
-
double limit switch
-
material of platform:
-
slip- proof aluminum alloy
Hot!!! used passenger
elevators for sale

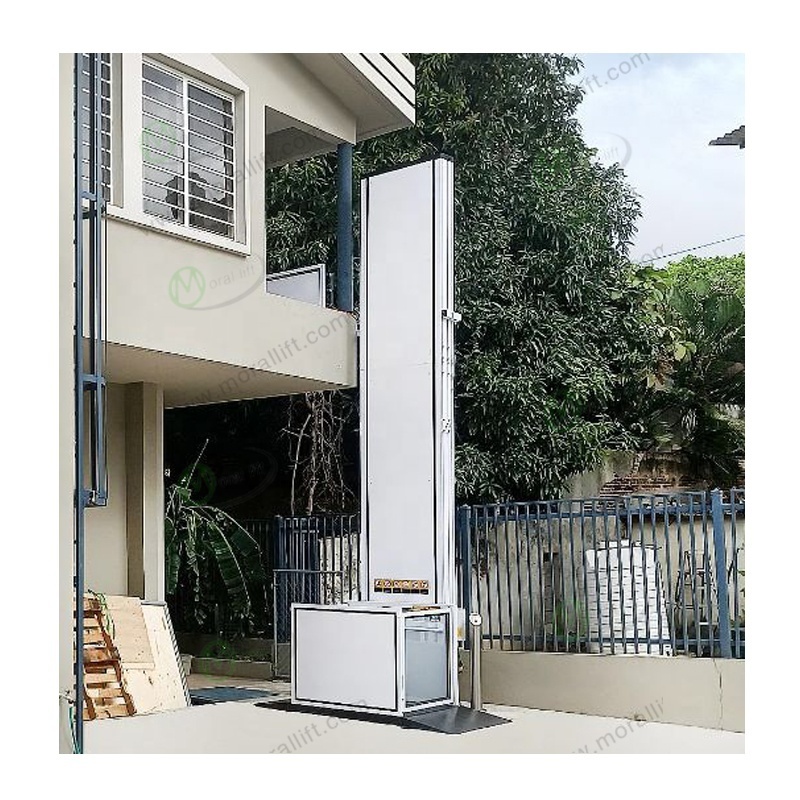

1 .vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.
2 .It can be directly installed into the ground without architectural supporting pits and easy to operate.
3. Its hydraulic or screw system offers passengers smooth and comfortable transportation and
different safety devices remove every hiding risk.
4 .Emergency Descending:When there is no power or malfunctions, manually descend the device
5 .It’s suitable for large-sized newly-built residential estates and those areas where there is compact land resource and etc.
|
Platform size |
1 30 0mm(L)* 9 00 mm(W) or customized |
|
|
Max Platform Height |
6000mm |
|
|
Min Platform height |
80mm |
|
|
Speed |
60mm/s |
|
|
Load capacity |
250KG~350KG |
|
|
Control voltage |
24V/DC |
|
|
Power Output |
1. 5 KW |
|
|
Power Input |
220V/50HZ/25A (or customized for local power supply) |
|
|
Drive System |
Hydraulic or screw |
|
|
Control Mode |
Inching Switch or Automatic |
|
|
Drive Control |
Self-resetting system |
|
|
Overload |
Protection Over current relay |
|
|
Material of Platform |
Checkered slip-proof aluminum alloy |
|
|
Painting |
Plastic electrostatic spraying |
|
|
Guard panel & drive cabinet (framework) |
Aluminum Alloy / 304 stainless steel
|
|
|
Operation Panel |
Polished aluminum Alloy |
|
|
Working Condition |
Both indoors and outdoors |
|
|
Working temperature |
From - 5 0 ° ~60 ° C |
|
|
Installation
|
Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground) |
|
|
Emergency Stop
|
The lifting and lowering process can be stopped immediately by pressing the emergency button. |
|
|
Safety device |
Safety Interlock |
Lock the platform when it is out of control |
|
|
Safety Sensor |
The operation must be stopped immediately the safety edge meets obstacles during operation. |
|
|
Emergency lowering |
The platform can be lowered by opening hydraulic valve manually or rolling screw rod. |
|
|
Auto-flap |
Turn up after lifting |
We need your information belows:
1.Loading capacity?
2.Lifting height?
