Quick Details
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Y Axis)(mm):
-
200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Voltage:
-
110V/220V
-
Dimension(L*W*H):
-
XYZ=180*390*95mm
-
Power (kW):
-
0.4
-
Weight (KG):
-
28
-
Power(W):
-
400W
-
Weight:
-
30KG
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
Marketing Type:
-
Hot Product 2019
-
Certification:
-
CE
Quick Details
-
Working Table Size(mm):
-
400x200
-
Machine Type:
-
CNC Router
-
Positioning Accuracy (mm):
-
0.01 mm
-
Number of Axes:
-
1
-
Travel (X Axis)(mm):
-
400 mm
-
Travel (Y Axis)(mm):
-
200 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LY
-
Voltage:
-
110V/220V
-
Dimension(L*W*H):
-
XYZ=180*390*95mm
-
Power (kW):
-
0.4
-
Weight (KG):
-
28
-
Power(W):
-
400W
-
Weight:
-
30KG
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
Marketing Type:
-
Hot Product 2019
-
Certification:
-
CE

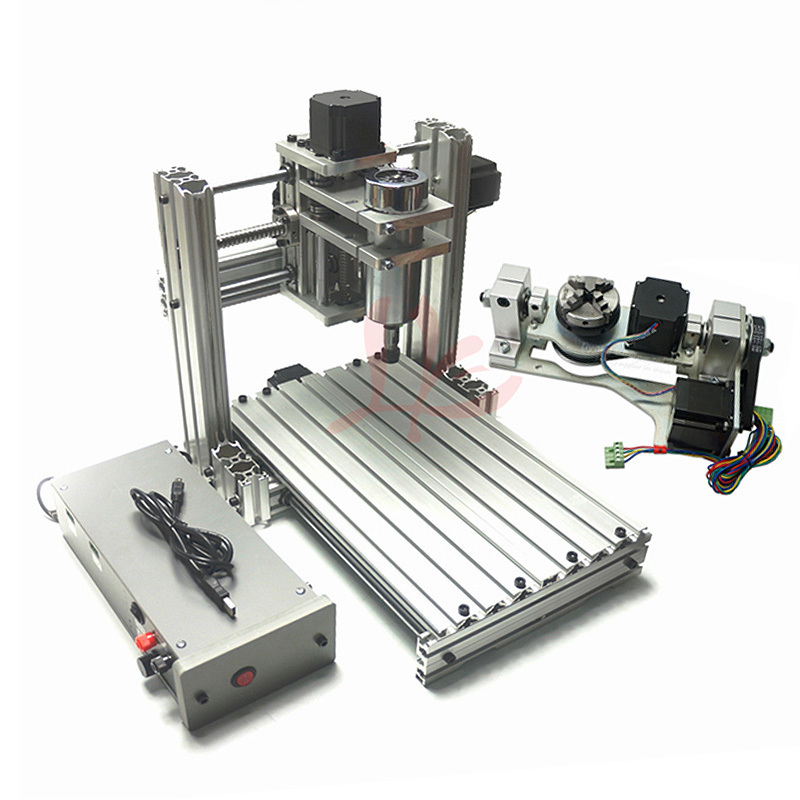

CNC Router Engraver 4020 400W 3axis 4 Axis 5 Axis CNC Engraving Machine for Woodworking
Introduction
This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;
It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.
It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.
Model and Technical Parameters
|
MODEL |
4020 metal |
|||
|
Attribute |
3axis |
4axis |
5axis |
|
|
Axis |
3axis |
4axis |
5axis |
|
|
Interface |
USB Port |
USB Port |
USB Port |
|
|
Spindle Motor: |
400W |
400W |
400W |
|
|
Weigh |
24 |
27 |
30 |
|
|
Max. working stroke |
XYZ=180*390*95mm |
|||
|
Acceptable material thickness |
≤ 120mm |
|||
|
Rail type |
X Y 1605 ball screw, Z 1204 ball screw, 12 mm optical axis |
|||
|
Spindle motor |
400W DC spindle , 0-9000r/min |
|||
|
Collet type |
ER11,1/8"(3.175mm) Collet |
|||
|
Stepper motor and drive |
||||
|
Repeat positioning Accuracy |
0.02mm |
|||
|
Communication interface |
USB Port |
|||
|
System requirements |
Win-XP / Win 7 Win 8 Win10 |
|||
|
Software Co patability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code |
G code/.nc/.ncc/.tab/.txt |
|||
|
4th Axis Description: |
Center height: H = 51mm Maximum turning diameter: ≤ 81mm Deceleration ratio: 4:1 Stepper motor: 57HS56 |
|||
|
5th Axis Description: |
The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N) The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N) Four jaw chuck 60MM The clamping: Positive direction:40mm; In the opposite direction:70mm Fourth axis Center height: 55MM The fifth axis higher than the 4th axis 44 mm Bottom fixed hole distance: 150mm x 85mm |
|||
