Quick Details
-
Hydraulic system:
-
Rexroth
-
Electric Units:
-
Schneider Electrical
-
Oil pump:
-
Hytek
Quick Details
-
Place of Origin:
-
Shandong, China
-
Color:
-
Customized
-
PLC:
-
Siemens
-
Hydraulic system:
-
Rexroth
-
Electric Units:
-
Schneider Electrical
-
Oil pump:
-
Hytek
Product Description

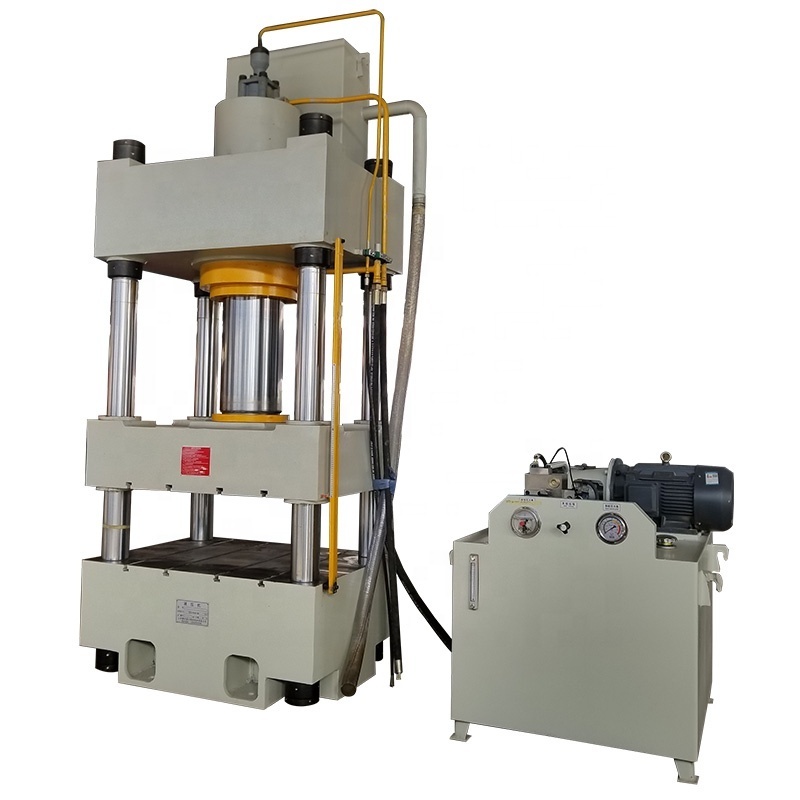

4 column hydraulic heat press machine for coin making
Product Applications
H ydraulic press is suitable for stamping, bending, flanging, sheet metal drawing, forming, punching, bending and other stamping processes of various plastic materials. It can also be used for correction, press fitting, grinding wheel molding, plastic products, powder products c ompression molding etc.
Technical Parameters
| Four-Column Hydraulic Press | Nominal Force | Table Dimension(LR*FB) | Slide Stroke | Max Opening Height | Descending Speed | Returning Speed | Pressing Speed | Motor Power |
| Unit | kn | mm | mm | mm | mm/s | kw | ||
| YQ32-63T | 630 | 550*500 | 400 | 600 | 130 | 150 | 15-29 | 5.5 |
| YQ32-100T | 1000 | 640*550 | 300 | 600 | 60 | 64 | 10-17 | 5.5 |
| 700*620 | 500 | 800 | ||||||
| YQ32-160T | 1500 | 700*700 | 500 | 900 | 80 | 76 | 10-16 | 7.5 |
| YQ32-160T | 1600 | 800*800 | 500 | 900 | 100 | 76 | 10-16 | 7.5 |
| YQ32-200T | 2000 | 800*800 | 500 | 900 | 100 | 110 | 8-13.5 | 7.5 |
| 1000*1000 | 600 | 1000 | 150 | 100 | 8-13.5 | |||
| YQ32-250T | 2500 | 800*800 | 500 | 900 | 80 | 95 | 15-20 | 11 |
| 1200*1000 | 600 | 1100 | 120 | 80 | 10-15 | |||
| YQ32-315T | 3150 | 800*800 | 500 | 900 | 75 | 83 | 6-12 | 15 |
| 1000*1000 | 500 | 1000 | 100 | |||||
| 1260*1160 | 600 | 1100 | 105 | |||||
| YQ32-400T | 4000 | 1000*1000 | 500 | 1000 | 100 | 74 | 8-12.5 | 18.5 |
| 1200*1200 | 700 | 1200 | 100 | |||||
| 1400*1400 | 1000 | 1600 | 120 | |||||
| YQ32-500T | 5000 | 1400*1400 | 900 | 1500 | 80-100 | 71 | 12-16 | 15*2 |
| 2500*2 | 2200*1500 | 800 | 1400 | 100 | 80 | 5-12 | ||
| YQ32-630T | 6300 | 1600*1600 | 900 | 1500 | 100 | 10-17 | 75 | 18.5*2 |
| 3150*2 | 2400*1800 | 800 | 1400 | 110 | 10-15 | 105 | ||
| YQ32-800T | 8000 | 1800*1800 | 1000 | 1600 | 120 | 74 | 12-18 | 22*2 |
| 4000*2 | 2500*1800 | 900 | 1500 | 150 | 125 | 12-18 | ||
| YQ32-1000T | 10000 | 1800*1800 | 1000 | 1600 | 90 | 62 | 8-13.5 | 30*2 |
| 5000*2 | 2500*1800 | 900 | 1600 | 100 | 72 | |||
