Quick Details
-
Weight (KG):
-
585
-
Voltage:
-
220V/ 380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
None
-
Dimension(L*W*H):
-
3160(L)X 900(W)X 1530(H)mm
-
Packing Speed:
-
About 30 packs per minute
-
Guarantee days:
-
One year
-
Air pressure:
-
0.5MPA
-
Power supply:
-
380V, 50-60HZ, 3Phase
-
Machine mateiral:
-
Carbon steel
-
Power:
-
Total 8.5KW
-
After Warranty Service:
-
Video technical support
-
Marketing Type:
-
New Product 2020
Quick Details
-
Function:
-
FILLING, Wrapping, Labeling, Sealing
-
Packaging Type:
-
Film
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
585
-
Voltage:
-
220V/ 380V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
None
-
Dimension(L*W*H):
-
3160(L)X 900(W)X 1530(H)mm
-
Packing Speed:
-
About 30 packs per minute
-
Guarantee days:
-
One year
-
Air pressure:
-
0.5MPA
-
Power supply:
-
380V, 50-60HZ, 3Phase
-
Machine mateiral:
-
Carbon steel
-
Power:
-
Total 8.5KW
-
After Warranty Service:
-
Video technical support
-
Marketing Type:
-
New Product 2020

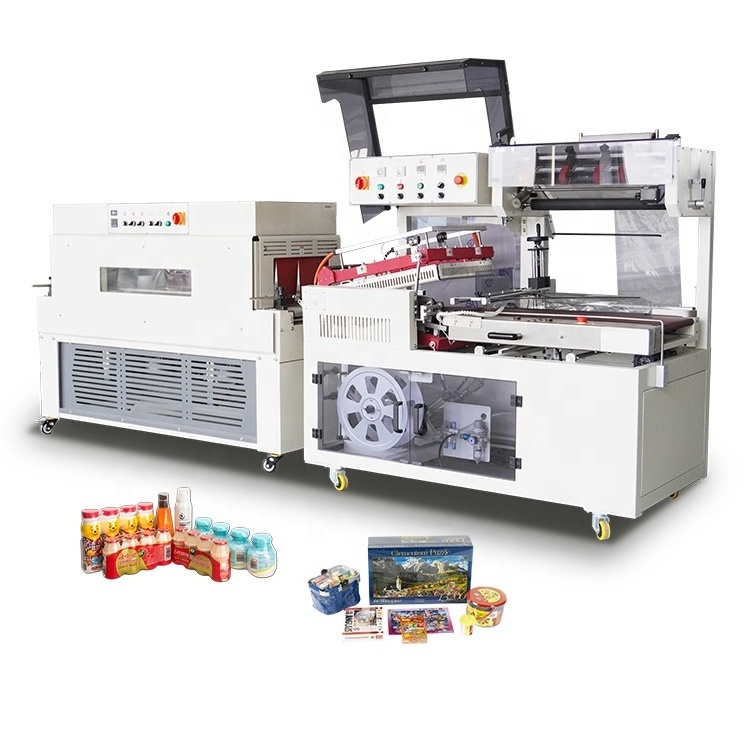

RL-400 is a fully automatic shrink packaging machine including l sealer and shrink tunnel which can feed products, seal and cut film and shrink film bag automatically. it is widely used in food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.
1. Special durable alloyed sealing knife with anti-stick teflon coats makes sealing strong and has better performance of heat conduction.
2. Only adjust packing width and height by hand wheels without changing any molds and parts when packing size changes. packing length can be detected by the sensor automatically.
3. Different products with different sizes can be packed together as promotional package.
4. Adopt omron brand parts such as temperature controller, timer, relay, switch, and sensor.
5. Alarm for scrap film break or full.
6. A pair of photoelectric switch in vertical for thin products.
7. Optional closing conveyor for small products.
8. Optional sensor for transparent products.
| MODEL | RL-400 |
| Sealing Type | L-Sealing |
| Installed Power | 380V/50-60HZ/3Phase |
| Packing Capacity | Max. 35 packs per minute (depends on product size) |
| Sealing Height | 150MM |
| Packing Width | 350MM |
| Conveyor Speed | Variable, 26M/Min |
| Film Thickness | 12-30 Micron (Minimum-Maximum) |
| Packing Size | Width + Height < 400mm, Length + Height < 480mm |
| Film Type | Center Folded POF/ PVC Film |
| Max Film Roll Size | 530MM (Width) X 280MM (Outer Diameter) |
| Power Consumption | 1.5 KW |
| Working Height | 780-850 MM |
| Air Pressure | 0.5MPA (5 BAR) |
| MODEL | RYT-4020 |
| Power Supply | 380V/50-60HZ/3Phase |
| Oven Size | 1200MM (L), Entrance 450(W) X 250(H) MM |
| Conveyor Speed | Variable, 40 M/Min |
| Conveyor | Chains with Rotating Silicon Coated Rods |
| Rated Power Consumption | Max. 7 KW |
| Working Height | 780 - 850 MM |
| Machine Material | Carbon Steel |
| Tunnel Machine Dimensions | 1550 X 700 X 1300 MM |
| Weight (Net/ Gross) |
490KGS/ 540KGS (For Reference Only, Including Sealer and Tunnel) |
Ruiyuan is a technology-based enterprise, a professional manufacturer of automatic heat shrink packing machinery. In shrink wrapping industry, we have always been a pioneer in the improvements, always targeted high-quality packaging machines without compromise in quality.
We are well known for providing the highest quality in packaging appearance, machine availability and efficiency. Many machines from Ruiyuan often accompany our customers throughout their working life. Our ISO and CE certified shrink packing equipment including automatic L sealer, automatic continuous sealer, automatic horizontal flow sealer and automatic sleeve sealer, shrink tunnel, etc.
The broad scope of expertise of Ruiyuan engineers have led the company to develop an equally wide range of machinery, capable of solving virtually any shrink packaging problem. Besides the complete shrink wrapping systems, Ruiyuan also produces customized projects on infeed and discharge automation such as products package grouping, automatic feeding, paper inserting, product aligning, rotating and labeling etc. No matter where you are we have a suitable shrink packaging solution for your products!
Q: Are you trading company or manufacturer?
A: We are a manufacturer. We have our own factory located in Ruian, Wenzhou City, Zhejiang Province, China. We have export entitlement.
Q: How fast you can delivery the machine?
A: Standard machine delivery time is 7 days, customized machine delivery time is: 20-30 days.
Q: How about machine guarantee?
A: We guarantee the machine for 1 year. It means during this period, if any defect parts (excluding heaters, sealing knife) found, we will courier new one to you for free.
Q: What type machine you produce?
A: Our ISO and CE certified shrink packing equipment including automatic L sealer, automatic continuous side sealer, automatic horizontal flow sealer and automatic sleeve sealer, shrink tunnel, conveyor belt etc. Application are widly use in beverage, food, pharmaceutical, stationary, toy, auto parts, cosmetics, printing, hardware, electrical appliances and other industry.
For more machine details, welcom to contact us, thank you.
