Quick Details
-
Application:
-
Villa
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
kangda
-
Model Number:
-
KDBG100
-
Type:
-
Waterproof Membrane
-
weight:
-
100g
-
Length:
-
50m
-
Material:
-
pp
-
width:
-
≤3.2m
-
Function:
-
roof underlayment
-
Color:
-
gray white black blue
-
Thickness:
-
0.2mm-0.8mm
Quick Details
-
Warranty:
-
5 years
-
After-sale Service:
-
Other
-
Project Solution Capability:
-
Others
-
Application:
-
Villa
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
kangda
-
Model Number:
-
KDBG100
-
Type:
-
Waterproof Membrane
-
weight:
-
100g
-
Length:
-
50m
-
Material:
-
pp
-
width:
-
≤3.2m
-
Function:
-
roof underlayment
-
Color:
-
gray white black blue
-
Thickness:
-
0.2mm-0.8mm
100g 1.5m width diffusion open foil for pitched roof (breathable membrane)
Product Description

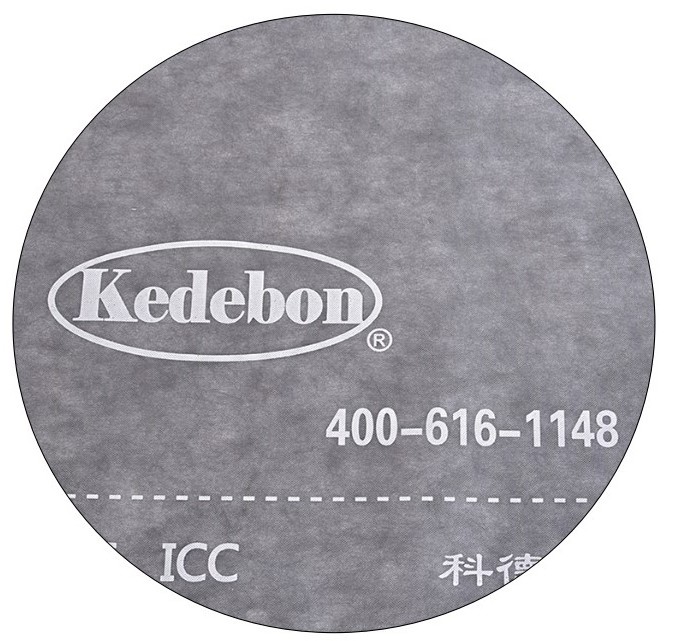

100g 1.5m width diffusion open foil for pitched roof (breathable membrane) for underlay for Roof Underlay (Like Tyvek) is a three layer highly breathable, fully waterproof membrane, constructed from high tensile spun-bonded polypropylene layers, with a microporous polypropylene film inside. The middle layer is the breathable waterproof membrane, and the outer layers protects the membrane from abrasion and damage, also giving additional strength. This enables the fabric to allow moisture vapour to pass through it to the outside, whilst remaining fully waterproof.
| Surface mass density | 100g/m² (Upper black + lower grey) |
| Roll size | 1.5m*50m or customized 3.2m*50m or customized |
| Vapor permeability | ≥2500 g/m²/24h |
| Sd value | 0.02 m (-0.005/+0.015) |
| Water tightness | class W1 |
| Tensile strength MD/CD | 180/110N (+/-20%) |
| Tearing strength MD/CD | 80/70 N (+/-20%) |
| Resistance to UV rays | 3 months |
| Reaction to fire | Class E |
| Loading quantity |
20’GP-----800rolls 40’GP -----2000rolls 40’HC -----2200rolls |
Product Advantages
01 W aterproof , B r eathable, A ir permeable
02 S table anti-UV & anti-aging performance
03 E xcellent tensile and tearing strength.
04 L ight weigth so easy handled.
05 For both roof and wall application ( environmental protection)
