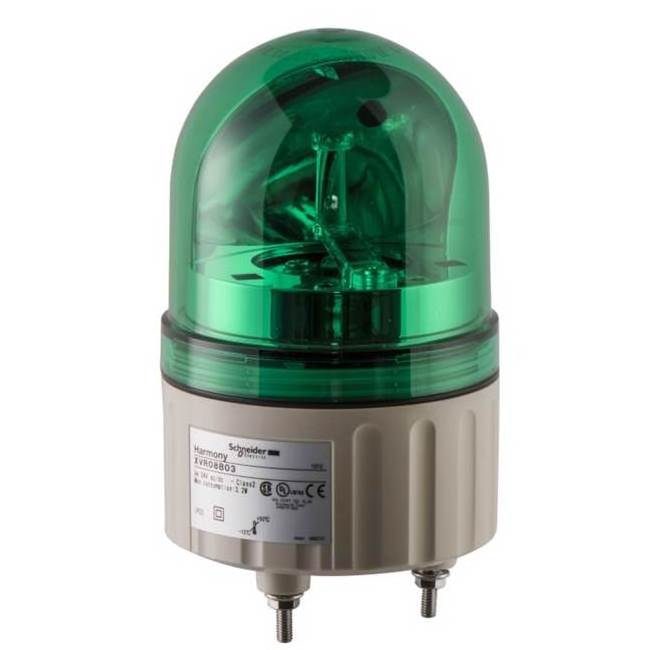

Schneider 84/106/120mm LED flashing Rotating alarm warning beacons LED light
Schneider 84/106/120mm LED flashing Rotating alarm warning beacons LED light
Schneider 84/106/120mm LED flashing Rotating alarm warning beacons LED light
Schneider 84/106/120mm LED flashing Rotating alarm warning beacons LED light
Schneider 84/106/120mm LED flashing Rotating alarm warning beacons LED light
Schneider 84/106/120mm LED flashing Rotating alarm warning beacons LED light
Schneider 84/106/120mm LED flashing Rotating alarm warning beacons LED light
Schneider 84/106/120mm LED flashing Rotating alarm warning beacons LED light

Schneider 84/106/120mm LED flashing Rotating alarm warning beacons LED light

FOB Reference Price: Get Latest Price
≥10 Sets
US $35
≥50 Sets
US $30
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

sound signalling:
Without
device short name:
XVR
mounting diameter:
84/106/120mm
IP degree of protection:
IP23
[Us] rated supply voltage:
12/24 V AC/DC
light source:
High luminosity LED
light color:
green/red/orange/blue
product weight:
0.3/0.5 kg

Quick Details

Place of Origin:
France
range of product:
Harmony XVR
product or component type:
Prewired rotating mirror beacon
sound signalling:
Without
device short name:
XVR
mounting diameter:
84/106/120mm
IP degree of protection:
IP23
[Us] rated supply voltage:
12/24 V AC/DC
light source:
High luminosity LED
light color:
green/red/orange/blue
product weight:
0.3/0.5 kg
Related Products


Warning beacons rotating LED Light


Green/Red/Orange/Blue  24/12 VAC-DC


Click the pictures to find more information

Schneider 84/106/120mm LED flashing Rotating alarm warning beacons LED light

Schneider 84/106/120mm 12/24 V AC/DC warning light Rotating Mirror LED

84 mm Rotating Mirror

24/12 VAC-DC


106 mm Rotating Mirror

24/12 VAC-DC


120 mm Rotating Mirror

24/12 VAC-DC


Product Description


84 mm Rotating Mirror

Green/Red/Orange/Blue   24/12 VAC-DC

Warning Light rotating LED
Main
range of product
Harmony XVR
product or component type
Prewired rotating mirror beacon
sound signalling
Without
device short name
XVR
mounting diameter
84 mm
IP degree of protection
IP23 conforming to IEC 60529

IP65 (with accessory) conforming to IEC 60529
[Us] rated supply voltage
24 V AC/DC
12 VAC-DC
light source
High luminosity LED
green/ red/ orange/blue
Complementary
material
ABS (acrylonitrile butadiene-styrene) (body part)
PC (globe)
CAD overall width
84 mm
CAD overall depth
84 mm
product weight
0.3 kg
marking
CE
product mounting
By 3 M4 screws
supply voltage limits
21.6...26.4 V AC

19...30 V DC
[Uimp] rated impulse withstand voltage
0.8 kV
current consumption
125 mA
flashing frequency
2.3 Hz
clamping connection capacity
0.83 mm²
AWG gauge
AWG 18
cable length
500 mm


106 mm Rotating Mirror

Green/Red/Orange/Blue   24/12 VAC-DC

Warning Light rotating LED
Main
range of product
Harmony XVR
product or component type
Prewired rotating mirror beacon
sound signalling
Without
device short name
XVR
mounting diameter
106 mm
IP degree of protection
IP23 conforming to IEC 60529

IP55 (with accessory) conforming to IEC 60529
[Us] rated supply voltage
24 V AC/DC
12 VAC/DC
light source
High luminosity LED
green/ red/ orange/blue
Complementary
material
ABS (acrylonitrile butadiene-styrene) (body part)

PMMA (polymethyl methacrylate) (globe)
CAD overall width
106 mm
CAD overall depth
106 mm
product weight
0.5 kg
marking
CE
product mounting
By 3 M4 screws
supply voltage limits
21.6...26.4 V AC
19...30 V DC
[Uimp] rated impulse withstand voltage
0.8 kV
current consumption
125 mA
flashing frequency
2.3 Hz
clamping connection capacity
0.83 mm²
AWG gauge
AWG 18
cable length
400 mm


120 mm Rotating Mirror

Green/Red/Orange/Blue  24/12 VAC-DC


Warning Light rotating LED
Main
range of product
Harmony XVR
product or component type
Prewired rotating mirror beacon
sound signalling
Without
device short name
XVR
mounting diameter
120 mm
IP degree of protection
IP23 conforming to IEC 60529
[Us] rated supply voltage
24 V AC/DC
2 VAC-DC
light source
High luminosity LED
green/ red/ orange/blue
Complementary
material
ABS (acrylonitrile butadiene-styrene) (body part)
AS (globe)
CAD overall width
120 mm
CAD overall depth
120 mm
product weight
0.5 kg
marking
CE
product mounting
By 3 M5 screws
supply voltage limits
21.6...26.4 V AC
19...30 V DC
[Uimp] rated impulse withstand voltage
0.8 kV
current consumption
125 mA
flashing frequency
2.3 Hz
clamping connection capacity
0.83 mm²
AWG gauge
AWG 18
cable length
400 mm
