China high quality cheap price ball screw used for making machine

China high quality cheap price ball screw used for making machine

FOB Reference Price: Get Latest Price

≥1 Pieces

US $35

≥51 Pieces

US $33

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Dewo

Product name::: High Precision Ball Screw

Feature::: High Accuracy

Application::: Speed Transmissions

Service::: OEM Services

Nut type::: Single Nut$ Double Nut

Structure:: Ball Screw + Nut

Type::: SF1605

Certificate::: ISO9001-2015

Size of screw shaft::: 2510

Length::: 100-6000mm(Custmized )

Quick Details

Material:: Stainless steel

Length:: Customized

Place of Origin:: China

Brand Name:: Dewo

Product name::: High Precision Ball Screw

Feature::: High Accuracy

Application::: Speed Transmissions

Service::: OEM Services

Nut type::: Single Nut$ Double Nut

Structure:: Ball Screw + Nut

Type::: SF1605

Certificate::: ISO9001-2015

Size of screw shaft::: 2510

Length::: 100-6000mm(Custmized )

Product Description

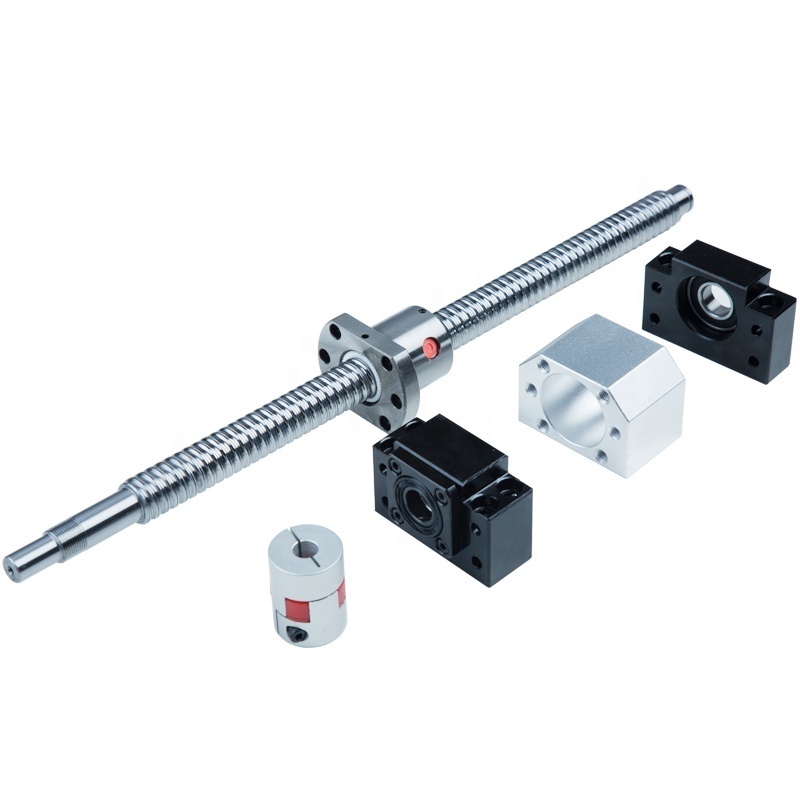

SFU Ball Screw

Products Features

Dewo Ball Screw that achieves low noise, small torque fluctuations and long-term maintenance-free operation by using a ball cage. Using a screw shaft ground to high accuracy. In the DIN standard compliant Ball Screw, balls under a load roll in the raceway cut between the screw shaft and the nut while receiving the axial load, travel along the groove of a deflector embedded inside the nut to the adjacent raceway, and then circulate back to the loaded area. Thus, the balls perform infinite rolling motion.

Advantages

1,High Precision
2,Heavy Load
3,High efficiency and reversibility

Dewo Ball Screw that achieves low noise, small torque fluctuations and long-term maintenance-free operation by using a ball cage.

Specification:

Specification model	Nominal diameter	Nominal guide	Steel ball diameter	Flange type	Number of cycles	D(g6)	D1	D2	D3	L	B	G	H	Dynamic load Ca	Static load
SFU01204-3	12	4	2.38	d<=32	3	22	42	32	4.8	35	8	M6	30	4	6.7
SFU01604-3	16	4	2.38	d<=32	3	28	48	38	5.5	36	10	M6	40	4.35	9.2
SFU01605-3	16	5	3.18	d<=32	3	28	48	38	5.5	42/44	10	M6	40	7.65	13.2
SFU01605-4 (Waist type)	16	5	3.18	d<=32	4	28	48	38	5.5	50	10	M6	40	7.65	13.2
SFU01610-4	16	10	2.78	d<=32	2(Double head)	28	48	38	5.5	42/44	10	M6	40	7.36	12.8
SFU02005-3	20	5	3.18	d<=32	3	36	58	47	6.7	42/44	10	M6	40	8.6	17.1
SFU02510-3	25	10	4.76	d<=32	3	40	62	51	51	85	15	M6	44	8.7	20.5
SFU02510-4 (Waist type)	25	10	4.76	d<=32	4	40	62	51	6.8	85	15	M6	48	8.7	20.5
SFU03205-3	32	5	3.18	d<=32	5	50	80	65	9	52	12	M6	62	16.9	51
SFU03205-4 (Waist type)	32	4	3.18	d<=32	4	50	80	65	9	52	12	M6	62	16.9	51
SFU03210-3	32	10	6.35	d<=32	3	50	80	65	9	74	12	M6	62	26.1	53.1
SFU03210-4 (Waist type)	32	10	6.35	d<=32	3	50	80	65	9	90	12	M6	62	26.1	53.1
SFU04005-5	40	5	3.18	d>=40	5	63	93	78	9	55	14	M6	70	19	66.2
SFU04005-4 (Waist type)	40	4	3.18	d>=40	4	63	93	78	9	55	14	M6	70	19	66.2
SFU04010-3	40	10	6.35	d>=40	3	63	93	78	9	71	14	M8	70	30.1	71
SFU04010-4 (Waist type)	40	10	6.35	d>=40	4	63	93	78	9	93	14	M8	70	30.1	71
SFU04020-3	40	20	6.35	d>=40	3(Double head)	63	93	78	11	94 144	14	M8	70	40.3	98.4
SFU05010-4	50	10	6.35	d>=40	4	63	110	93	9	95	16	M8	85	53.1	155
SFU04005-5	40	5	3.18	d>=40	5	63	93	78	9	55	14	M8	70	19	66.2
SFU04005-4 (Waist type)	40	4	3.18	d>=40	4	63	93	78	9	55	14	M8	70	19	66.2
SFU04010-3	40	10	6.35	d>=40	3	63	93	78	9	71	14	M8	70	30.1	71
SFU04010-4 (Waist type)	40	10	6.35	d>=40	4	63	93	78	9	93	14	M8	70	30.1	71
SFU04020-3	40	20	6.35	d>=40	3(Double head)	63	93	78	9	94 144	14	M8	70	40.3	98.4
SFU05010-4	50	10	6.35	d>=40	4	75	110	93	11	95	16	M8	85	53.1	155
SFU06310-5	63	10	6.35	d>=40	5	90	125	108	11	97	18	M8	95	60.7	206
SFU08010-5	80	10	6.35	d>=40	6	105	145	125	13.5	101	20	M8	110	66.6	265
