Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Number of Axes:
-
Single
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hopetool
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
1300*2500*300mm
-
Weight (KG):
-
1500
-
XYZ travel positioning accuracy:
-
±0.01mm
-
XYZ repositioning positioning accury:
-
±0.01mm
-
Table surface:
-
aluminum molding
-
frame:
-
wield tube
-
drive system X-Y axis:
-
Rack
-
drive system Z axis:
-
Ball screw
-
Max velocity:
-
25m/min
-
Max working speed:
-
15m/min
-
Spindle speed:
-
0-24000rmp
-
Power:
-
3/4.5KW
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
0 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Number of Axes:
-
Single
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hopetool
-
Voltage:
-
220v
-
Dimension(L*W*H):
-
1300*2500*300mm
-
Weight (KG):
-
1500
-
XYZ travel positioning accuracy:
-
±0.01mm
-
XYZ repositioning positioning accury:
-
±0.01mm
-
Table surface:
-
aluminum molding
-
frame:
-
wield tube
-
drive system X-Y axis:
-
Rack
-
drive system Z axis:
-
Ball screw
-
Max velocity:
-
25m/min
-
Max working speed:
-
15m/min
-
Spindle speed:
-
0-24000rmp
-
Power:
-
3/4.5KW
Products Description

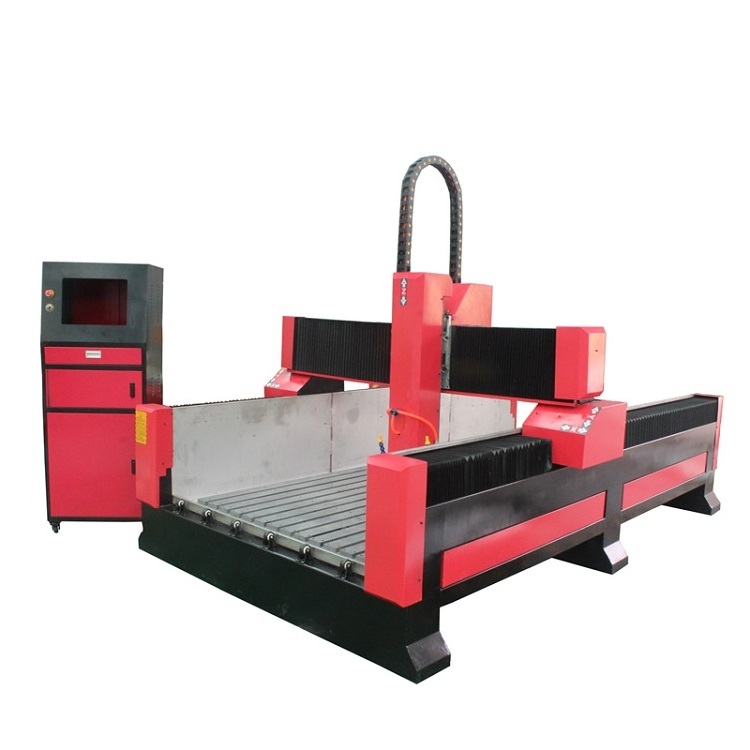

Headstone/tombstone/gravestone series engraving machine/stone CNC router/stone engraver
Characteristic
1.leading Rack Drive, fast, high efficiency, air-speed can reach 35 m / min or more, against the wave plate is carved in
manufacturing can be up to 20 m / min above the speed equivalent to the purchase of 4 -- 5 ordinary type machines.
2. intelligent protection work table: Prevention of misoperation or software errors, and so on the surface may cause damage.
Intelligent processing of cross-border protection: preventing processing format over the layout design of mechanical collision
caused the phenomenon.
3. fully in line with international standards: can use any CAD / ArtCAM software and other relief.
4. advanced DSP control handle, control automatically processing multiple levels 3 D. To carry out rapid, smooth 3D processing,
carving or cutting. Offline operation can be realized.
5.the overall program structure welding tempering aging treatment, is not strong deformation. Gantry mobile, fixed working table
can be arbitrary processing work table material.
6. suitable for a variety of materials processing large quantities of production.
7.Take the water cooling system for marble tool when works for marble ,granite ,stone and so on.
manufacturing can be up to 20 m / min above the speed equivalent to the purchase of 4 -- 5 ordinary type machines.
2. intelligent protection work table: Prevention of misoperation or software errors, and so on the surface may cause damage.
Intelligent processing of cross-border protection: preventing processing format over the layout design of mechanical collision
caused the phenomenon.
3. fully in line with international standards: can use any CAD / ArtCAM software and other relief.
4. advanced DSP control handle, control automatically processing multiple levels 3 D. To carry out rapid, smooth 3D processing,
carving or cutting. Offline operation can be realized.
5.the overall program structure welding tempering aging treatment, is not strong deformation. Gantry mobile, fixed working table
can be arbitrary processing work table material.
6. suitable for a variety of materials processing large quantities of production.
7.Take the water cooling system for marble tool when works for marble ,granite ,stone and so on.
Performance Parameter
|
number
|
Description
|
parameter
|
|
1
|
XYZ working area
|
1300*2500*300mm
|
|
2
|
Table size
|
1310*3000mm
|
|
3
|
XYZ travel positioning accuracy
|
±0.01mm
|
|
4
|
XYZ repositioning positioning accury
|
±0.01mm
|
|
5
|
Table surface
|
Aluminum T slot +PVC
|
|
6
|
grantry
|
steel
|
|
7
|
drive system X-Y axis
|
Rack
|
|
8
|
drive system Z axis
|
Ball screw
|
|
9
|
Spindle power
|
3/5.5KW
|
|
10
|
Max velocity
|
50m/min
|
|
11
|
Max working speed
|
25m/min
|
|
12
|
Spindle speed
|
0-24000rmp
|
|
13
|
work mode
|
step(optional servo)
|
|
14
|
Working voltage
|
AC220/380V
|
|
15
|
Command language
|
G code
|
|
16
|
Interface
|
USB
|
|
17
|
Operating system
|
DSP/Mach3/Ncstudio
|
|
18
|
Flash memory
|
128
|
|
19
|
X-Y resolution
|
0.025mm
|
|
20
|
Software environment
|
Wentai type3 artcam
|
|
21
|
Running environment
|
Temperature:0-45°C
|
|
22
|
Paking size
|
3300*1900*1900mm
|
|
23
|
Net weight
|
1300 kg
|
|
24
|
Gross weight
|
1500 kg
|
