Quick Details
-
Application:
-
Villa
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Giant sliding gate opener
-
Model Number:
-
PYM- X2208
-
Motor's Power:
-
220VAC
-
Input voltage:
-
220V±10% 50HZ
-
Max loading weight::
-
300kg
-
Open(close) Speed:
-
12m/min
-
Max pull:
-
1100N
-
Output gear modulus:
-
M=4
-
Output gear number:
-
Z=16
-
motor torgue:
-
12N.m
-
working temperature:
-
-25°C~+50°C
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Free spare parts
-
Project Solution Capability:
-
total solution for projects
-
Application:
-
Villa
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Giant sliding gate opener
-
Model Number:
-
PYM- X2208
-
Motor's Power:
-
220VAC
-
Input voltage:
-
220V±10% 50HZ
-
Max loading weight::
-
300kg
-
Open(close) Speed:
-
12m/min
-
Max pull:
-
1100N
-
Output gear modulus:
-
M=4
-
Output gear number:
-
Z=16
-
motor torgue:
-
12N.m
-
working temperature:
-
-25°C~+50°C
|
Model
|
PYM X2208
|
PYM A2202
|
PYM A2203
|
PYM A024
|
|||
|
Rated Voltage
|
220V±10%/110V±10%
50HZ/60HZ
|
220V±10%/110V±10% 50HZ/60HZ
|
220V±10%/110V±10% 50HZ/60HZ
|
220V±10%/110V±10% 50HZ/60HZ
|
|||
|
Max loading weight
|
300kg
|
800kg
|
1300kg
|
500kg
|
|||
|
Gear modulus
|
M=4
|
M=4
|
M=4
|
M=4
|
|||
|
Open/close speed
|
12m/min
|
12m/min
|
12m/min
|
15m/min
|
|||
|
Electric motor
|
220VAC/110VAC
|
220VAC/110VAC
|
220VAC/110VAC
|
24VDC
|
|||
|
Output speed
|
50r/min±10%
|
50r/min±10%
|
50r/min±10%
|
50r/min±10%
|
|||
|
Output Torque(N.m)
|
12 N.m
|
16.8-32 N.m
|
16.8-32 N.m
|
16.8-32 N.m
|
|||
|
Limit switch
|
magnet
|
Spring /magnetic
|
Spring /magnetic
|
Spring /magnetic
|
|||
|
Working termperature
|
-20°C～+55°C
|
-20°C～+55°C
|
-20°C～+55°C
|
-20°C～+55°C
|
|||

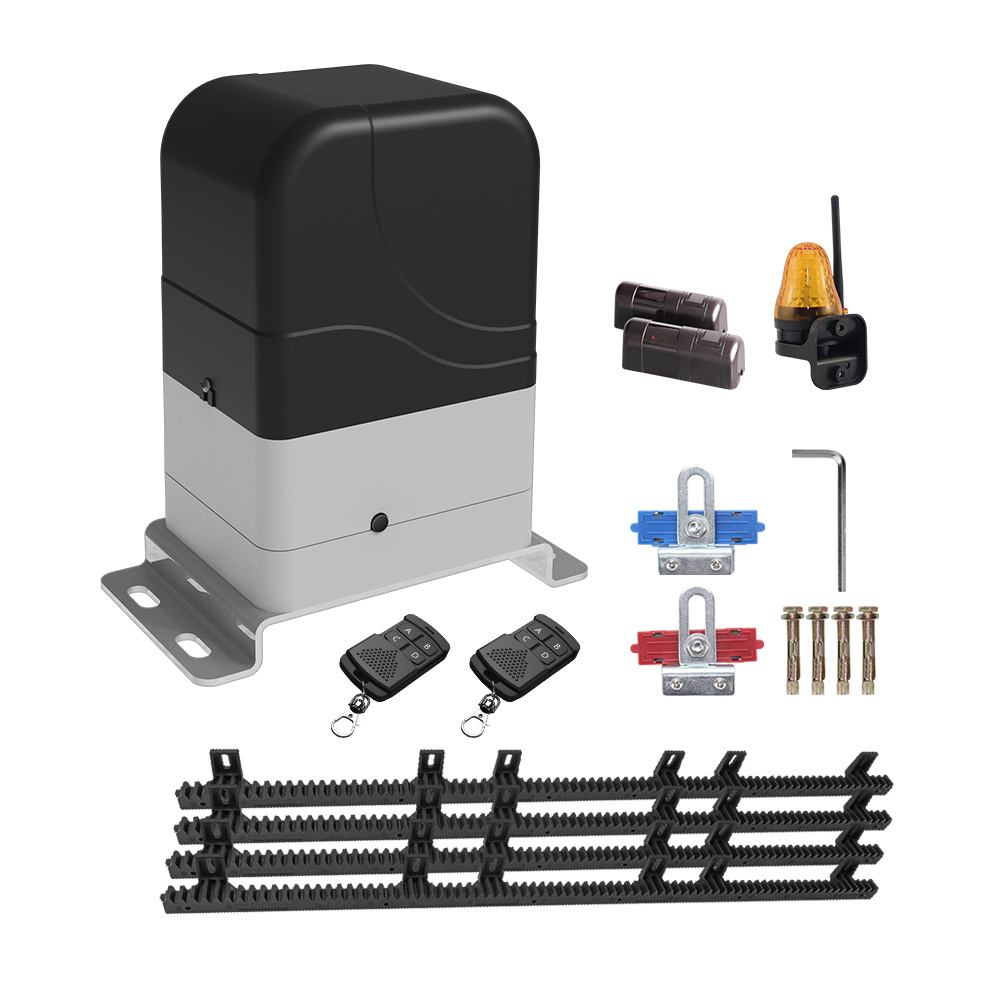

Economic 300 kg motor sliding slide gate opener motor door sliding automatic and
remote control gate opener
Specification:
1. Totally integrated electrical mechanical system (excludes racks).
2. Control board interface for optional impact-proof infrared photocells.
3. Can connect flashing light and keypad and electric lock and so on.
4. Automatic delayed closing.
5. Adjustable resistance sensitivity.
6. Auto gate stop and re-open when an obstacle is encountered.
7. Wireless remote control or wired remote control are optional.
Packing Details : 1 set for 1 standrad carton, 48 cartons for 1 pallets,
