Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SINOTRUK HOWO
-
Weight (KG):
-
8000 kg
-
Color:
-
Optioinal
-
Driving Type:
-
Left Hand Drive
-
Engine:
-
4- stroke
-
Curb Weight:
-
4745kg
-
Package:
-
Wax
-
Overhang (front/rear) (mm):
-
1240/2255mm
-
Tire:
-
8.25R20
-
Wheel Base:
-
4500mm
-
Max speed(km/s):
-
90km/h
-
Bin material:
-
Carbon steel
Quick Details
-
Engine Capacity:
-
4.26L
-
Size:
-
7995*2400*2650mm
-
Gross Vehicle Weight:
-
10000
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SINOTRUK HOWO
-
Weight (KG):
-
8000 kg
-
Color:
-
Optioinal
-
Driving Type:
-
Left Hand Drive
-
Engine:
-
4- stroke
-
Curb Weight:
-
4745kg
-
Package:
-
Wax
-
Overhang (front/rear) (mm):
-
1240/2255mm
-
Tire:
-
8.25R20
-
Wheel Base:
-
4500mm
-
Max speed(km/s):
-
90km/h
-
Bin material:
-
Carbon steel
Product Description

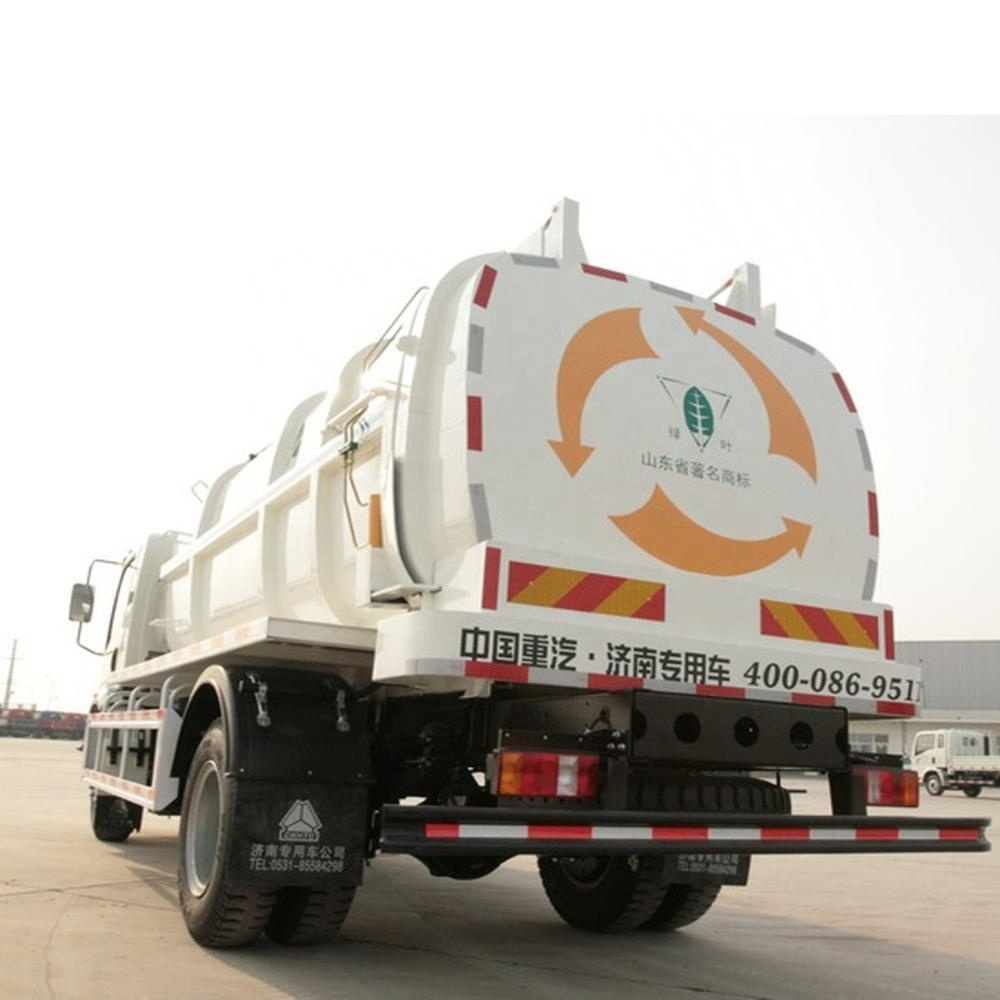

Food kitchen garbage truck
Food kitchen garbage truck, also known as food garbage truck kitchen garbage truck or swill car, food garbage truck is a kind of garbage truck, is used for collecting and transporting household garbage, food waste (swill) and urban sludge special vehicles.
|
SPECIFICATION
|
|
|
|
|||
|
Truck Brand
|
|
|
SINOTRUK HOWO
|
|||
|
Driving wheel
|
|
|
4x2
|
|||
|
Driving type
|
|
|
Left Hand Driving
|
|||
|
Chassis Model
|
|
|
ZZ1107G4515D1
|
|||
|
Dimension(Lx W x H)(unloaded)(mm)
|
|
|
7995*2400*2650
|
|||
|
Garbage bin volume
|
|
|
8cbm
|
|||
|
Bin material
|
|
|
Carbon steel
|
|||
|
Thickness(mm)
|
|
|
Bottom:4mm, side:3mm
|
|||
|
Number of spring
|
|
|
8/10+8
|
|||
|
Approaching angle/Departure angle(°)
|
|
|
27/20
|
|||
|
Overhang(front/rear) (mm)
|
|
|
1240/2255mm
|
|||
|
Wheel base (mm)
|
|
|
4500
|
|||
|
Max speed(km/h)
|
|
|
90
|
|||
|
Curb weight(kg)
|
|
|
4745
|
|||
|
Engine
|
Model
|
|
4- stroke direct injection diesel engine, 4 cylinders in line with water cooling
|
|||
|
|
Fuel type
|
|
Diesel
|
|||
|
|
Horse Power(HP)
|
|
140
|
|||
|
|
Displacement(L)
|
|
4.26
|
|||
|
|
Emission
|
|
EURO IV
|
|||
|
Fuel tanker capacity (L)
|
|
|
Standard
|
|||
|
Brake system
|
|
Service brake
|
Dual circuit compressed air brake
|
|||
|
|
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
|||
|
Front axle
|
|
3.2
|
|
|||
|
Rear axle
|
|
8
|
|
|||
|
Color
|
|
Optional
|
|
|||
|
Tyre
|
|
8.25R20 Steel , 6+1 Spare
|
|
|||
|
Cab
|
|
Standard cabin
|
|
|||
Details Show
The refitted part has the characteristics of high automation degree of loading and unloading garbage, reliable work, good sealing, large loading volume, simple operation, closed operation process, no sewage leakage and odor emission, good environmental protection, etc. Can be equipped with different specifications of the standard garbage can, has a wide range of applicability. Food kitchen garbage truck efficient, clean is garbage collection, transport special vehicles. The kitchen garbage truck not only optimizes the environmental health of the residents, reduces the smell of kitchen garbage in the air, reduces the possibility of breeding cockroaches and bacteria, improves the sanitation environment, and reduces the pollution caused by the scattered garbage.
Operating Type
It is the barrel "swill" by the vehicle on the conveyor belt slowly lose, on the top of the car into the car (car can be divided into compartments and tanks), was put in the garbage after a strong push plate extrusion, solid-liquid separation, then separated liquid into the tank at the bottom of the waste, solid waste is compressed stored in tanks, smaller volume, and again after being filled with sent to eat hutch garbage resources optimization treatment plants. The whole process is automated. Classified collection and centralized treatment of kitchen waste require not only harmless and resource-based processing equipment in the later stage, but also special vehicles for collection and transportation. Due to the characteristics of high water content and complex composition of kitchen waste, the vehicle is required to have good airtight, simple and safe operation, high and convenient loading and unloading efficiency, and it is required to be equipped with later recycling equipment.
Cabin Interior Show
Packing & Delivery
Packaging Details:
All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way. There are three way can be choose, RORO, BULK CARGO VESSEL AND FLAT RACK CONTAINER
Port: Tianjin,Qingdao
Lead time: Shipped in 30 days after payment
Port: Tianjin,Qingdao
Lead time: Shipped in 30 days after payment
