1.
Flame retardant , easy to install
2. Active &Reactive energy measurement functions ,can display time, alarm code, etc.
3. With the function of opening the cover record, it can be inquired to prevent theft of electricity.
4. The energy meter has the function of multiply tariff(variable rate)
5. Local IC card fee control method
6. Communication method: RS485, infrared
7. It has the function of clearing the meter, which is convenient and flexible to use.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
SAVING
-
Model Number:
-
DDZY1218
-
Accuracy Class:
-
Active Level 1, Reactive Level 2
-
Output Voltage:
-
220V
-
Operating Temperature:
-
-25~60 degree
-
Dimensions:
-
160x112x71mm
-
Name:
-
Single-phase Prepaid Smart Meter with Local IC Card
-
Reference Voltage:
-
220V
-
Current Specification:
-
5(60)A
-
Frequency:
-
50Hz
-
Accuracy Level:
-
Active Level 1, Reactive Level 2
-
Power Consumption:
-
Voltage Line: <=1W, 5VA; Current Line: <=1VA
-
Humidity Range:
-
40%~60%
-
Starting Current (A):
-
Direct access type<=0.004Ib
-
Timing Accuracy:
-
Daily timeing error<=0.5s/day(23℃)
-
Certificate:
-
ISO9001
Quick Details
-
Phase:
-
Single Phase
-
Measuring Energy Range:
-
0-999999
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
SAVING
-
Model Number:
-
DDZY1218
-
Accuracy Class:
-
Active Level 1, Reactive Level 2
-
Output Voltage:
-
220V
-
Operating Temperature:
-
-25~60 degree
-
Dimensions:
-
160x112x71mm
-
Name:
-
Single-phase Prepaid Smart Meter with Local IC Card
-
Reference Voltage:
-
220V
-
Current Specification:
-
5(60)A
-
Frequency:
-
50Hz
-
Accuracy Level:
-
Active Level 1, Reactive Level 2
-
Power Consumption:
-
Voltage Line: <=1W, 5VA; Current Line: <=1VA
-
Humidity Range:
-
40%~60%
-
Starting Current (A):
-
Direct access type<=0.004Ib
-
Timing Accuracy:
-
Daily timeing error<=0.5s/day(23℃)
-
Certificate:
-
ISO9001

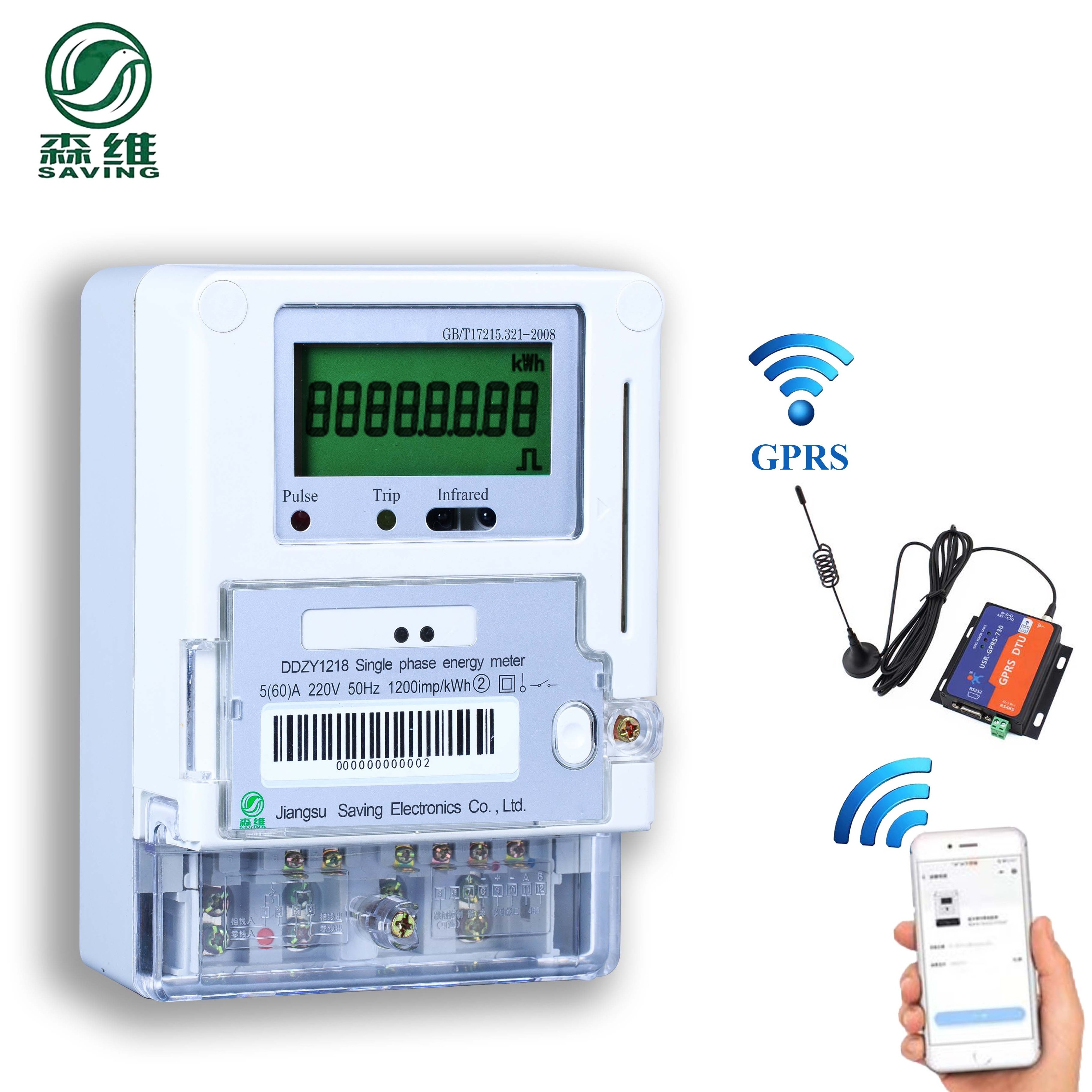

DDZY1218-M
single-phase
IC Card
charge-controlled smart electric energy meter is a new generation of electric energy metering product developed and produced by our company in accordance with the relevant technical specifications of smart electric energy meters of the State Grid Corporation of China. This product adopts special large-scale integrated circuit and
SMT
production process, and has
the functions of
electric energy metering
,
data processing
,
real-time monitoring
,
automatic control, information interaction
, etc.
Product Features
Details Images
|
Reference Voltage
|
220V
|
|
|
|
|||
|
Current Specification
|
5（20）、5（60）、10（40）、15（60）A
|
|
|
|
|||
|
Rated Frequency
|
50Hz
|
|
|
|
|||
|
Accuracy Level
|
Active Level 1, Reactive Level 2
|
|
|
|
|||
|
Power Consumption
|
Voltage line: <=1.5W, 10VA; current line: <1VA
|
|
|
|
|||
|
Temperature Range
|
Working temperature range -25~55degree,
extreme working temperature range -40~70 degree |
|
|
|
|||
|
Meter Constant(imp/kWh)
|
1200
|
|
|
|
|||
|
Humidity Range
|
40%～60%, working relative humidity be controlled within 95%
|
|
|
|
|||
Fix the electric meter to the meter box, and connect the interface according to the wiring diagram.
It is recommended to use copper wire or copper terminal. The screws in the terminal box should be tightened to avoid burning due to poor contact or excessively thin wire.
It is recommended to use copper wire or copper terminal. The screws in the terminal box should be tightened to avoid burning due to poor contact or excessively thin wire.
Product Functions
1.
Display with LCD display with wide viewing angle and high contrast
2. IC card fee control
3. Voltage sampling loop adopts resistance voltage division
4. High-precision, high-sensitivity, high-stability, wide-range, low-power dedicated metering chip
5.
High-stability, wide-range manganese-copper shunt with current loop
6. Application places:community,hotel,shopping mall ,office building,school,property,etc
7. The dimensions of the case structure are uniform, exquisite and easy to install.
8. Use CPU card /SD card
9.
Display information: cumulative electricity consumption in the current month and last month, cumulative electric energy indication value and total accumulated electric energy indication value, current date and time, alarm code or prompt, communication status prompt, meter number of electric energy meter, etc.
10. Main functions: security authentication encryption requirement, event recording function, Strong structure, good sealing performance
11. Communication method: RS485, infrared,
12. Optional built-in relay for load control. Advantages: simple structure and cheap price.
