Quick Details
-
Brand Name:
-
VPC Pneumatic
-
Product name:
-
DSNU Round Cylinder
-
Material:
-
Stainless Steel
-
Type:
-
Piston Air Cylinder
-
Application:
-
Industrial Pneumatic Cylinder
-
Working medium:
-
Clean Air
-
Working pressure:
-
0.1 to 1.0Mpa
-
Working Temperature:
-
-20 to 80℃
-
Acting type:
-
Double Acting with Adjustable Cushion
-
Certificate:
-
ISO9001:2008 / CE
Quick Details
-
Weight (KG):
-
0.7
-
Marketing Type:
-
Hot Product 2023
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
VPC Pneumatic
-
Product name:
-
DSNU Round Cylinder
-
Material:
-
Stainless Steel
-
Type:
-
Piston Air Cylinder
-
Application:
-
Industrial Pneumatic Cylinder
-
Working medium:
-
Clean Air
-
Working pressure:
-
0.1 to 1.0Mpa
-
Working Temperature:
-
-20 to 80℃
-
Acting type:
-
Double Acting with Adjustable Cushion
-
Certificate:
-
ISO9001:2008 / CE

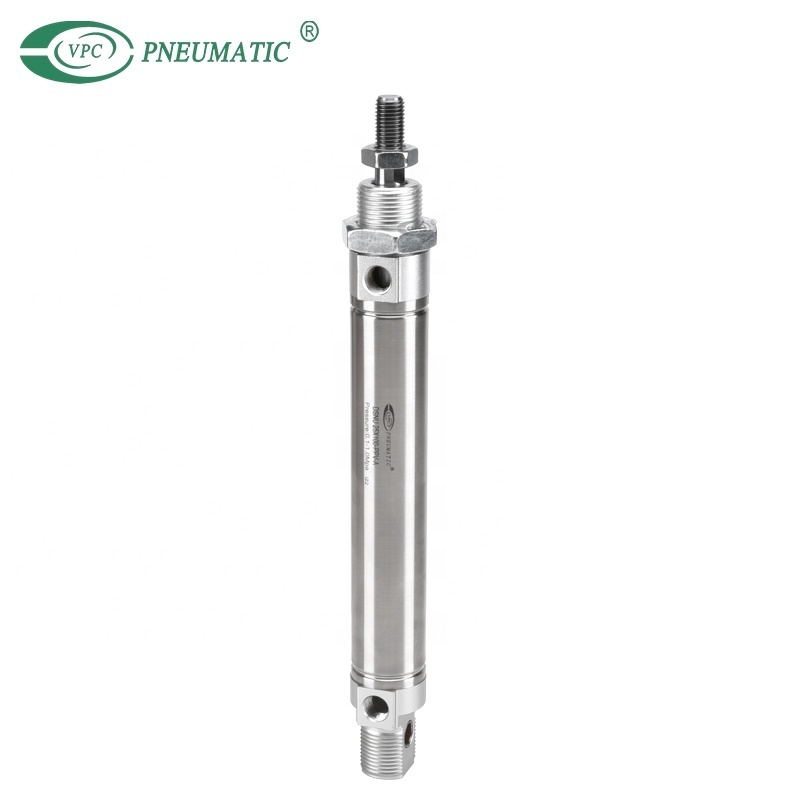

DSNU-25-100-PPV Round Cylinders ISO 6432 Stainless Steel Double Acting Mini Pneumatic Cylinder Manufacturer
Product Feature
1. DSNU is a round mini cylinder in accordance with ISO6432 standard.
2. Pneumatic cylinder barrel is made of stainless steel, bore 8~63mm, stroke 1~500mm, and the cylinder bore, and piston rod can be
customized according to the application scenario.
3. 6 types of installation to meet the use of various scenarios.4. Piston rod with internal or external thread.
5. Auto switches are available in band and rail mounting types.
2. Pneumatic cylinder barrel is made of stainless steel, bore 8~63mm, stroke 1~500mm, and the cylinder bore, and piston rod can be
customized according to the application scenario.
3. 6 types of installation to meet the use of various scenarios.4. Piston rod with internal or external thread.
5. Auto switches are available in band and rail mounting types.
|
Bore(mm)
|
|
8
|
10
|
12
|
16
|
20
|
|||||
|
Acting type
|
|
Double acting, Single acting
|
|
|
|
|
|||||
|
Working medium
|
|
Clean air(40um Filteration)
|
|
|
|
|
|||||
|
Working pressure
|
|
0.15 to 1.0Mpa
|
|
|
0.1 to 1.0Mpa
|
|
|||||
|
Working temperature
|
|
-20 to 80℃
|
|
|
|
|
|||||
|
Lubrication
|
|
No required
|
|
|
|
|
|||||
|
Speed range
|
|
-
|
|
|
10 to 100mm/s
|
|
|||||
|
Cushion type
|
DSNU-□-P
|
Elastic cushion rings
|
|
|
|
|
|||||
|
|
DSNU-□-PPV
|
-
|
|
Adjustable cushion
|
|
|
|||||
|
|
DSNU-□-PPS
|
－
|
|
|
Self-adjustable cushion
|
|
|||||
|
Cushion stroke
|
DSNU-□-PPV
|
－
|
|
9mm
|
12mm
|
15mm
|
|||||
|
|
DSNU-□-PPS
|
-
|
|
|
12mm
|
15mm
|
|||||
|
Port size
|
|
M5
|
M5
|
M5
|
M5
|
G1/8
|
|||||
|
Piston rod thread
|
|
M4
|
M4
|
M6
|
M6
|
M8
|
|||||
|
Mounting type
|
|
Direct mounting (variant MH only)
|
|
|
|
|
|||||
|
|
|
With accessories
|
|
|
|
|
|||||
|
Bore(mm)
|
|
25
|
32
|
40
|
50
|
63
|
|||||
|
Acting type
|
|
Double acting, Single acting
|
|
|
|
|
|||||
|
Working medium
|
|
Clean air(40um Filteration)
|
|
|
|
|
|||||
|
Working pressure
|
|
0.1-1.0Mpa
|
|
|
|
|
|||||
|
Working temperature
|
|
-20 to 80℃
|
|
|
|
|
|||||
|
Lubrication
|
|
No required
|
|
|
|
|
|||||
|
Speed range
|
|
10 to 100mm/s
|
8 to 100mm/s
|
|
|
5 to 100mm/s
|
|||||
|
Cushion type
|
DSNU-□-P
|
Elastic cushion rings
|
|
|
|
|
|||||
|
|
DSNU-□-PPV
|
Adjustable cushion
|
|
|
|
|
|||||
|
|
DSNU-□-PPS
|
Self-adjustable cushion
|
|
|
|
|
|||||
|
Cushion stroke
|
DSNU-□-PPV
|
17mm
|
14mm
|
18mm
|
20mm
|
21mm
|
|||||
|
|
DSNU-□-PPS
|
17mm
|
14mm
|
18mm
|
20mm
|
21mm
|
|||||
|
Port size
|
|
G1/8
|
G1/8
|
G1/4
|
G1/4
|
G3/8
|
|||||
|
Piston rod thread
|
|
M10×1.25
|
M10×1.25
|
M12×1.25
|
M16×1.5
|
M16×1.5
|
|||||
|
Mounting type
|
|
Direct mounting (variant MH only)
|
|
|
|
|
|||||
|
|
|
With accessories
|
|
|
|
|
|||||
Ordering Code DSNU
Series Mini Cylinder
DSNU 20
×
50
-
PPV
-
A -
□
-
□
DSNU→ Series Code
DSNU:Double Acting
ESNU:Single Acting
20→Bore
50→Stroke
PPV→Cushion
50→Stroke
PPV→Cushion
P:
Elastic cushioning rings/plates on both sides
PPV:
Adjustable at both ends with cushion
PPS:
Self-adjusting at both ends with cushion
A→Magnet
Nil: Without Magnet
A: With Magnet
Nil: Without Magnet
A: With Magnet
□
→Cylinder end cap
Nil: Standard
MA: Axial air connection, end cap
MH: Direct mounting, bearing cap
MQ: Transverse supply port, end cap
MA: Axial air connection, end cap
MH: Direct mounting, bearing cap
MQ: Transverse supply port, end cap
□
→Piston rod type
Nil: Standard cylinder
S2: Double-shaft type
S2: Double-shaft type
PRODUCTING
OUR CERTIFICATE
FAQ
Q1:What is your quality assurance？
A:We will inspect one by one before delivery.If the product is damaged in transit or has quality problems , you can choose to refund or resend the product , and the freight will be borne by us.
Q2:What is your terms of payment?
A: TT ,We'll show you the photos of the products and packages before you pay the balance.
B: Paypal payment, Bank transfer,Alibaba Trade Assurance order also available.
Q3: How about the lead time?
A: Normally it will take 3-7 days for our routine products.
Q4:What is your sample policy?
A: Some free samples can be offered if you contact us.
Q5:How about the warranty?
A: 1 year warranty .
A:We will inspect one by one before delivery.If the product is damaged in transit or has quality problems , you can choose to refund or resend the product , and the freight will be borne by us.
Q2:What is your terms of payment?
A: TT ,We'll show you the photos of the products and packages before you pay the balance.
B: Paypal payment, Bank transfer,Alibaba Trade Assurance order also available.
Q3: How about the lead time?
A: Normally it will take 3-7 days for our routine products.
Q4:What is your sample policy?
A: Some free samples can be offered if you contact us.
Q5:How about the warranty?
A: 1 year warranty .
