Quick Details
-
Place of Origin:
-
Gansu, China
-
Brand Name:
-
Nuochen
-
Liquid Flow Rate:
-
1.8m/s
-
Maximum Working Pressure:
-
45Bar
-
Weight:
-
6 KG
-
Dimension(L*W*H):
-
as models
-
Working Temperature Range:
-
-160℃~225℃
-
Product Name:
-

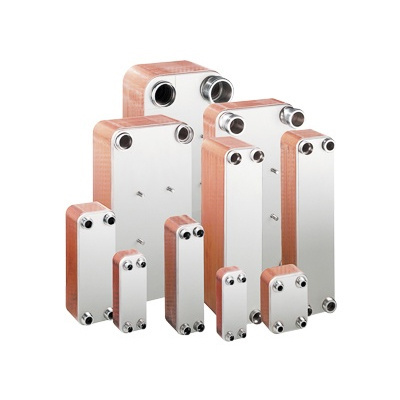

Brazed heat exchanger
-
Runner type:
-
Type D/X/H
-
Height:
-
Details
-
Width:
-
As models
-
Plate material:
-
AISI304,AISI316
-
Brazing material:
-
Copper,Nickel
-
Certification:
-
CE;ISO 9001
-
Water measurement large flow:
-
as models
-
After-sales Service Provided:
-
1Year
-
Design Feature:
-
Energy efficien,Energy efficient Compact structure, No streaming
Quick Details
-
Structure:
-
Plate Heat Exchanger
-
Voltage:
-
Customized
-
Core Components:
-
Plate
-
Place of Origin:
-
Gansu, China
-
Brand Name:
-
Nuochen
-
Liquid Flow Rate:
-
1.8m/s
-
Maximum Working Pressure:
-
45Bar
-
Weight:
-
6 KG
-
Dimension(L*W*H):
-
as models
-
Working Temperature Range:
-
-160℃~225℃
-
Product Name:
-
Brazed heat exchanger
-
Runner type:
-
Type D/X/H
-
Height:
-
Details
-
Width:
-
As models
-
Plate material:
-
AISI304,AISI316
-
Brazing material:
-
Copper,Nickel
-
Certification:
-
CE;ISO 9001
-
Water measurement large flow:
-
as models
-
After-sales Service Provided:
-
1Year
-
Design Feature:
-
Energy efficien,Energy efficient Compact structure, No streaming
Product description
product details
Custom process
Plate material Customization
|
|
Copper Braze
|
Nickel Braze
|
Stainless Steel Braze
|
|
Plate Material
|
A1SI304/316L
|
A1SI304/316L
|
A1SI304/316L
|
|
Interface material
|
A1SI304/316L
|
A1SI304/316L
|
A1SI304/316L
|
|
Brazing material
|
Copper
|
Nickel
|
Stainless Steel
|
|
Maximum design temperature
|
225°C
|
225°C
|
450°C
|
|
Minimum design temperature
|
-196°C
|
-196°C
|
-196°C
|
|
Maximum design pressure
|
30/45 bar
|
10/15 bar
|
30/45 bar
|
|
Model
|
High H |
Width B |
Thickness C |
Longitudinal
Hole Distance H0 |
Horizontal Hole Distance
B0 |
Weight kg |
Unilateral
Stagnation Valume(L) |
Heat Exchanger
Area m2 |
|
H014
|
206
|
76
|
2.3*N+9
|
172
|
42
|
0.05*N+0.5
|
(N-2)*0.01
|
(N-2)*0.014
|
|
H015
|
200
|
90
|
2.1*N+9
|
160
|
46
|
0.05*N+0.4
|
(N-2)*0.011
|
(N-2)*0.015
|
|
H018
|
210
|
94
|
2.3*N+9
|
162
|
50
|
0.07*N+0.4
|
(N-2)*0.015
|
(N-2)*0.018
|
|
H020
|
318
|
76
|
2.3*N+9
|
160
|
46
|
0.058*N+1
|
(N-2)*0.018
|
(N-2)*0.02
|
|
H025E
|
320
|
90
|
2.3*N+13
|
278
|
42
|
0.09*N+1
|
(N-2)*0.03
|
(N-2)*0.03
|
|
H026
|
310
|
111
|
2.3*N+10
|
250
|
50
|
0.11*N+2
|
(N-2)*0.025
|
(N-2)*0.026
|
|
H028
|
300
|
128
|
2.4*N+9
|
243
|
752
|
0.11*N+2
|
(N-2)*0.024
|
(N-2)*0.028
|
|
H030
|
308
|
128
|
2.4*N+9
|
250
|
70
|
0.11*N+2
|
(N-2)*0.025
|
(N-2)*0.03
|
|
H050
|
525
|
111
|
2.4*N+9
|
466
|
50
|
0.2*N+2.4
|
(N-2)*0.05
|
(N-2)*0.05
|
|
H060
|
528
|
122
|
2.3*N+9
|
470
|
63
|
0.25*N+2.4
|
(N-2)*0.11
|
(N-2)*0.06
|
|
H095
|
616
|
191
|
2.8*N+11
|
519
|
92
|
0.44*N+7.8
|
(N-2)*0.12
|
(N-2)*0.095
|
|
H100
|
491
|
243
|
2.15*N+10
|
411
|
159
|
0.35*N+6.5
|
(N-2)*0.08
|
(N-2)*0.1
|
|
H120
|
528
|
246
|
2.38*N+13
|
456
|
174
|
0.52*N+7.2
|
(N-2)*0.19
|
(N-2)*0.11
|
|
H180
|
847
|
254
|
2.76*N+13
|
750
|
160
|
0.52*N+10
|
(N-2)*0.22
|
(N-2)*0.2
|
|
H190
|
698
|
307
|
2.65*N+13
|
567
|
179
|
0.51*N+57
|
(N-2)*0.21
|
(N-2)*0.19
|
|
H200
|
738
|
321
|
2.8*N+12.5
|
622
|
205
|
0.75*N+13
|
(N-2)*0.2
|
(N-2)*0.2
|
|
H210
|
739
|
322
|
2.55*N+13
|
631.7
|
205.2
|
0.82*N+13
|
(N-2)*0.2
|
(N-2)*0.21
|
|
H220
|
734
|
319
|
2.65*N+13
|
622
|
205
|
0.7*N+13
|
(N-2)*0.22
|
(N-2)*0.22
|
|
H300
|
1006
|
319
|
2.8*N+16
|
872
|
228
|
1.26*N+57
|
(N-2)*0.35
|
(N-2)*0.3
|
Are you looking for cost-saving PHE replacement spare parts?
Nuochen supplies non-OEM plate heat exchanger
spare parts that are fully compatible with PHEs of all brands.
spare parts that are fully compatible with PHEs of all brands.
