Quick Details
-
Weight (KG):
-
1500 KG
-
Power (kW):
-
12,16
-
Product name:
-
hydraulic wood chips sawdust shaving pallet feet block making machine
-
Application:
-
Recycling waste wood for Feet or leg of wooden pallet
-
Raw material:
-
Wood sawdust,shaving,chips,UF Resin glue
-
Raw material sawdust moisture:
-
10%-15%
-
Motor power:
-
12,16,18,24kw
-
Capacity:
-
4,6,9m3/24h for Wood Sawdust Pallet Block Making Machine
-
Pallet block size:
-
75*75,89*89,90*90,100*100,100*145,145*145mm ,Customized
-
Final pallet block density:
-
550-600kg/m3
-
Working Principle:
-
Hydraulic hot press extruder
-
Electric components:
-
Schneider
Quick Details
-
Place of Origin:
-
China
-
Machine Type:
-
Hydraulic hot press wood pallet extruder
-
Core Components:
-
Hydraulic hot press mould
-
Weight (KG):
-
1500 KG
-
Power (kW):
-
12,16
-
Product name:
-
hydraulic wood chips sawdust shaving pallet feet block making machine
-
Application:
-
Recycling waste wood for Feet or leg of wooden pallet
-
Raw material:
-
Wood sawdust,shaving,chips,UF Resin glue
-
Raw material sawdust moisture:
-
10%-15%
-
Motor power:
-
12,16,18,24kw
-
Capacity:
-
4,6,9m3/24h for Wood Sawdust Pallet Block Making Machine
-
Pallet block size:
-
75*75,89*89,90*90,100*100,100*145,145*145mm ,Customized
-
Final pallet block density:
-
550-600kg/m3
-
Working Principle:
-
Hydraulic hot press extruder
-
Electric components:
-
Schneider

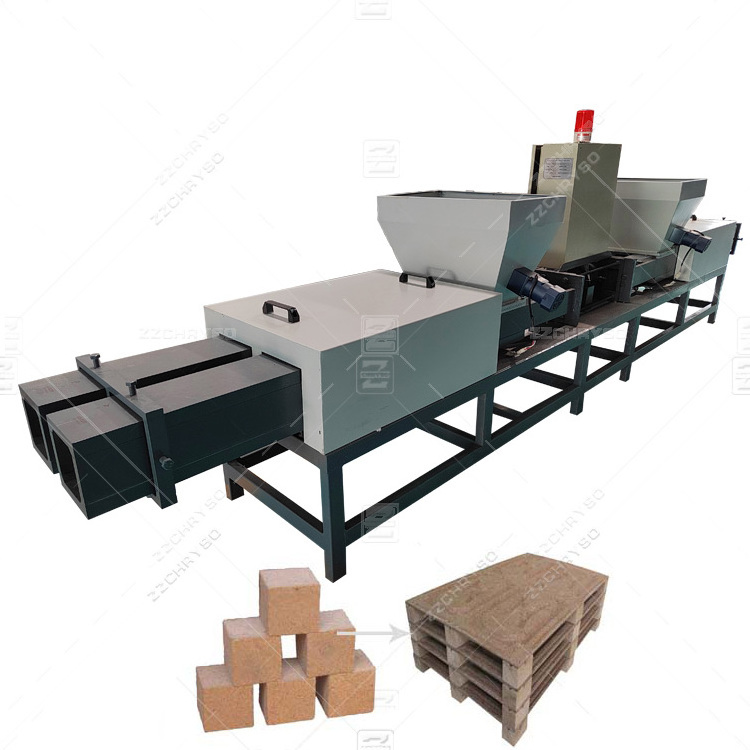

Hydraulic Wood pallet block extruder machine hot press pallet block making machine
Product Description
Wood sawdust block making machine
is the best solution to
recycle
waste wood.
The hydraulic wood sawdust pallet block machine is used to make blocks/feet/legs for wooden pallets trays, which can be used in packing industry and logistics(transportation).
The raw materials are wood sawdust, wood shavings, wood chips, waste wood, used pallets and so on.
We are professional at providing design and working plan of automatic pallet block production line for clients according to your actual demands.
Recycle waste wood wood sawdust block making machine for pallets, Wood pallet feet block hot press machine,Compressed Sawdust
Block Making Machine
Raw material for wood block mold machine
1.Wood sawdust
2.Wood shaving
3.Wood chip
Recycle waste wood wood sawdust block making machine for pallets, Wood pallet feet block hot press machine,Compressed Sawdust
Block Making Machine
Block Making Machine
Final products pallet block applied in euro type pallet production:
Specification
Model CRS
|
Double Heads
|
Four Heads
|
Six heads
|
Capacity
|
2-4m3/24h
|
4-6m3/24h
|
6-9m3/24h
|
Power
|
12kw
|
16-18kw
|
24kw
|
UF Resin glue
|
100-120kg/m3
|
100-120kg/m3
|
100-120kg/m3
|
Final block density
|
550-600kg/m3
|
550-600kg/m3
|
550-600kg/m3
|
Weight
|
1000kg
|
1500kg
|
2200Kg
|
Size
|
4800*500*1420mm
|
4800*580*1420mm
|
4900*940*1420mm
|
Details Images
Raw material wood sawdust wood shaving feeding hopper
Hydraulic cylinder to press the raw material into mold
Control panel with pressure gauge
Siemens electric PLC cabinient
Customized final pallet block size:89*89mm,145*145mm by customized mold size
Pallet block extruder machine production
Whole Production Line
1.
Equipment disposition
:
Full pallet block production line
can be equipped with w
ood chipper machine, wood crusher machine,dryer machine
(Drum dryer machine or air flow dryer machine),
glue mixer machine and block cutting machine.
2. Personnel disposition : Production personnel 4-5 persons for per shift . Raw material feeding and drying need about 2-3 workers, 2 persons for main pallet block machines (one work can take charge of 2-3 sets of block extruder machines).
2. Personnel disposition : Production personnel 4-5 persons for per shift . Raw material feeding and drying need about 2-3 workers, 2 persons for main pallet block machines (one work can take charge of 2-3 sets of block extruder machines).
Euro pallet making machine,pallet block extruder machine,wood chips sawdust shaving pallet feet block making machine
Drum dryer machine
Capacity with 1 ton per hour, for drying wood sawdust with moisture 20%-40%.
Air flow dryer machine
Capacity with 800kg-1000kg per hour, for moisture 20%.
Full automatic glue mixer machine for mixing wood sawdust and glue
Pallet block cut off saw machine
The pallet block extruder machine produce block beam with 1.2-1.5 meters, block cut off saw machine will cut beam to blocks with required size.
Related Product
Wood pallet nailing machine
Nailing machine full automatic processing line customized, for euro and stringer usa pallets production.
Wood pallet stringer notcher machine
Customized single head or double heads, for making groove slotting the stringer wood board.
Wood board edge milling chamfer machine
Double side chamfer wood board edge milling machine for wood pallet stringer
CNC cut off saw machine for pallet board blocks
CNC cut off saw machine for cutting wood board or wood blocks, customized final cutting size. Auto feeding with PLC touch screen.
