Quick Details
-
co content:
-
10%
-
wc content:
-
90%
-
Outer diameter:
-
5mm(h6)
-
Inner hole diameter:
-
0.7mm
-
Surface:
-
Finished Gringing
-
Hardness:
-
91.8HRA
-
Density:
-
14.45g/cm3
-
TRS:
-
3800MPa
-
grain size:
-
0.7um
-
Advantage:
-
Sub--fine grain size
Quick Details
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
zzup
-
Model Number:
-
5*330mm
-
co content:
-
10%
-
wc content:
-
90%
-
Outer diameter:
-
5mm(h6)
-
Inner hole diameter:
-
0.7mm
-
Surface:
-
Finished Gringing
-
Hardness:
-
91.8HRA
-
Density:
-
14.45g/cm3
-
TRS:
-
3800MPa
-
grain size:
-
0.7um
-
Advantage:
-
Sub--fine grain size

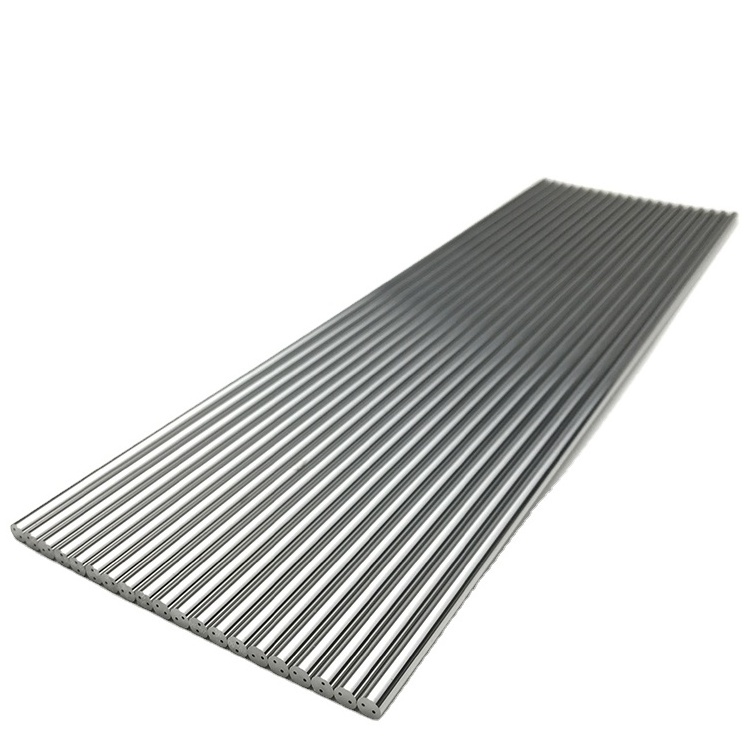

Overpressure sintering tungsten carbide rod have excellent red toughness,high hardness,good we ar
1. having all kind sizes for your choose,can suply less than 1000mm length.
2. Sintere by vacuum sintering furnace and HIP machine with excellent specifications without any hole.
3. Solid rod, one hole rod ,two straight holes rod ,two 30° helical holes.
4. we have unground rod instock ,also can grounding outdiameter H5,H6,H7,h6,h5,h7 etc.
5. we have diferent hardnesses for choose: 84.5hra, 89.5hra, 90.5hra,91.5 hra, 92.2hra,92.5hra,93.2hra, 94.0hra, 94.1hra, the more details refer our follow grades.
6. Grain sizes: 0.2um , 0.4um ,0.6um, 0.7um etc.
|
Grade | YL10.2 |
| Density | 14.45g/cm3 | |
| Hardness | 91.8HRA | |
| T.R.S | 3800MPa | |
| Grain Size | 0.7um | |
| Composition | 10%CO 90%WC | |
| Outer Diameter | 5mm | |
| Inner hole Diameter | 0.7mm | |
| Length | 330mm | |
| Ground |
h6 |
