Quick Details
-
Model:
-
BO-822A
-
Coil Standard:
-
M2-M14
-
Outside diameter:
-
60MM
-
Feeding length:
-
Unlimited
-
Wire feed speed:
-
0-110m/min
-
Cam setting value:
-
±0.10~±359.90
-
Cam rotation speed:
-
1~60RPM
-
Power AC:
-
380V±10%V50HZ
-
Dimensions:
-
1055x560x1540mm
-
Item:
-

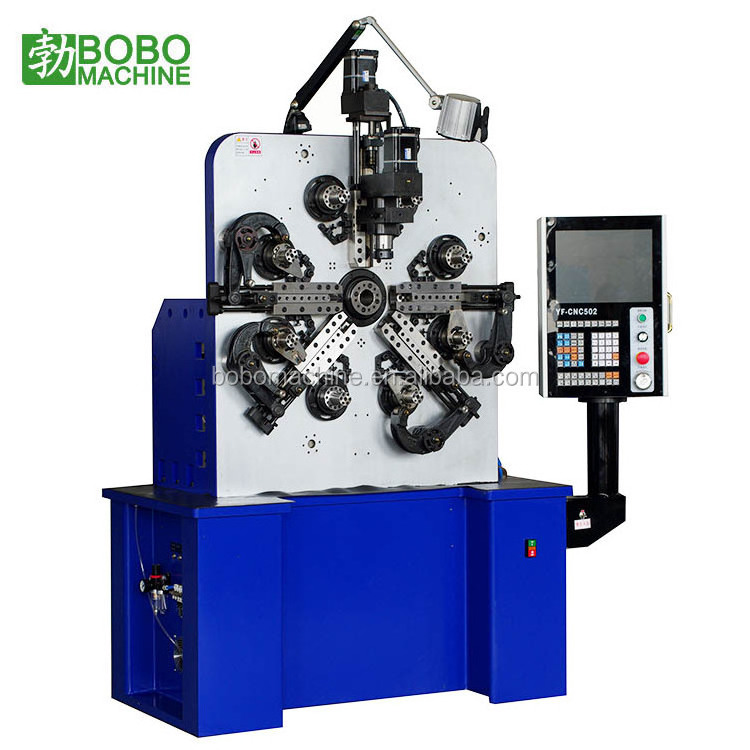

Rhombu stainless steel wire thread insert spring coil forming machine
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
bobo
-
Weight (KG):
-
800
-
Model:
-
BO-822A
-
Coil Standard:
-
M2-M14
-
Outside diameter:
-
60MM
-
Feeding length:
-
Unlimited
-
Wire feed speed:
-
0-110m/min
-
Cam setting value:
-
±0.10~±359.90
-
Cam rotation speed:
-
1~60RPM
-
Power AC:
-
380V±10%V50HZ
-
Dimensions:
-
1055x560x1540mm
-
Item:
-
Rhombu stainless steel wire thread insert spring coil forming machine
Product Application
This machine can be used to produce every kinds of straight spring, tower spring, pullback spring, double twist spring, tension spring, rectangle spring, clockwork spring, fancy spring, deformed spring, and various kinds of wire forming etc.
|
1
|
Item
|
BO-822A
|
|
2
|
Coil Standard
|
M2-M14
|
|
3
|
Outside diameter
|
MaxΦ60mm
|
|
4
|
Feeding length
|
±0.01~±9999.99
|
|
5
|
Wire feed speed
|
0-110m/min
|
|
6
|
Cam setting value
|
±0.10º~±359.90º
|
|
7
|
Cam rotation speed
|
1~60RPM
|
|
8
|
Motor wire feed
|
1.0kw
|
|
9
|
Motor cam
|
2.7kw
|
|
10
|
Motor axis
|
0.75kw
|
|
11
|
Power AC
|
380V±10%V50HZ
|
|
12
|
Dimensions
|
1055x560x1540mm
|
|
13
|
Weight
|
800KG
|
Main Features
1. Use Taiwan imported computer control system and import servo motors;
2. English interface, simple operate, accurate positioning, computer can control 3 to 8 servo motor, all motor can run synchronous or alone;
3. Set with a precision testing tracking system, will stop automatically if there is any unqualified products;
4. According to the working condition on the screen, can modify products' outer diameter or angle etc at any time;
5. Mechanical design of automatic lubricating oil supply, ensure the equipment running for a long time;
6. Has the design with automatic stop when wireless, disconnection, tangled lines, also has the function of line automatic acceleration, make the production easier and effective.
7. It is suitable for making every kinds of screw stainless steel wire thread insert
|
Packaging
|
|
|
|
Size
|
1055x560x1540mm
|
|
|
Weight
|
800KG
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
