Quick Details
-
Model Number:
-
ir filter
-
Name:
-
acrylic ir infrared Ir Pass 700nm 780nm Infrared Plastic Filter
-
Material::
-
IR PASS sheet
-
Surface Quality:
-
both sides with protective film
-
Transmission:
-
90% or higher with AR/AF
-
Thickness:
-
0.8MM,1MM,1.1MM,1.2MM,1.5MM,2MM,3MM 5MM
-
Sample:
-
sample can be provided or customize
-
Shape:
-
Laser/CNC Custom
-
Adhesive tape:
-
3M/VHB...as request
-
Logo:
-
Laser Engraving
-
Use:
-
optical instruments
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Lianze Promise
-
Model Number:
-
ir filter
-
Name:
-
acrylic ir infrared Ir Pass 700nm 780nm Infrared Plastic Filter
-
Material::
-
IR PASS sheet
-
Surface Quality:
-
both sides with protective film
-
Transmission:
-
90% or higher with AR/AF
-
Thickness:
-
0.8MM,1MM,1.1MM,1.2MM,1.5MM,2MM,3MM 5MM
-
Sample:
-
sample can be provided or customize
-
Shape:
-
Laser/CNC Custom
-
Adhesive tape:
-
3M/VHB...as request
-
Logo:
-
Laser Engraving
-
Use:
-
optical instruments
Cheaper PMMA/PC acrylic optical ir infrared long pass Ir Pass 700nm 780nm Infrared Plastic Filter
Our Advantages
1. Short delivery time: 2-5 working days
2. Price economy
3. Good surface with protective Film
4. With SGS report
5. OEM filter with 3M/Foam/VHB adhesive tape and step
6. Customize laser engraving logo/hole/any shape
2. Price economy
3. Good surface with protective Film
4. With SGS report
5. OEM filter with 3M/Foam/VHB adhesive tape and step
6. Customize laser engraving logo/hole/any shape
Our company enjoy a considerable discount owing to long-term cooperation with courier company.
Product Description
|
Material
|
Acrylic/PMMA/PC IR filter
|
|
Surface Quality
|
with protective film
|
|
Thickness
|
0.8MM,1MM,1.1MM,1.2MM,1.5MM,2MM,3MM 5MM
|
|
Shape
|
CNC/Laser cutting
|
|
Transmittance
|
Tave≥90%
|
|
Color
|
Black
|
|
Refractive index
|
1.49
|
|
Melt index :
|
2(300°C/5.0kg)
|
|
Water absorption:
|
0.15%(24H)
|
|
Tesile fracture strength:
|
60Mpa
|
|
Elongation at break:
|
4%
|
|
Fire-protection rating:
|
HB
|
|
Tape:
|
3M/VHB/Foam Adhesive tape as needed
|
|
Coating
|
AR/AF as needed
|

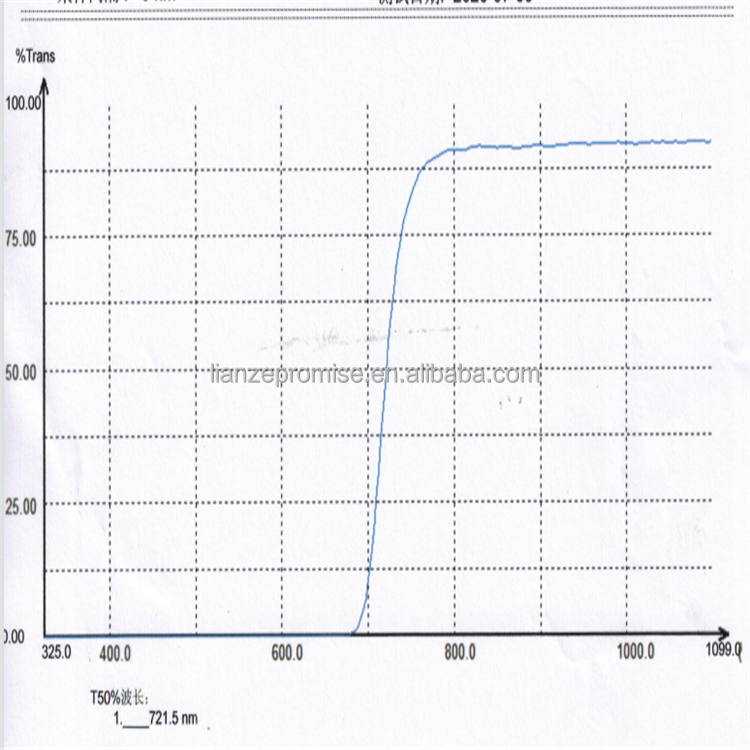

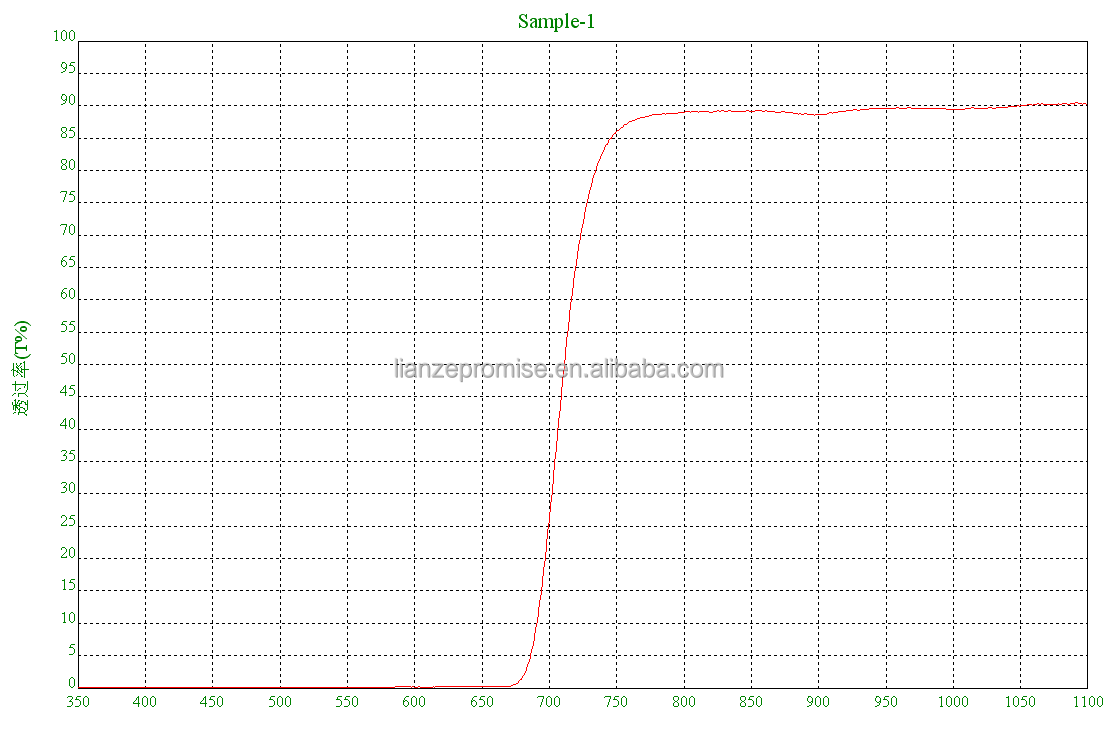

700nm transmission curve

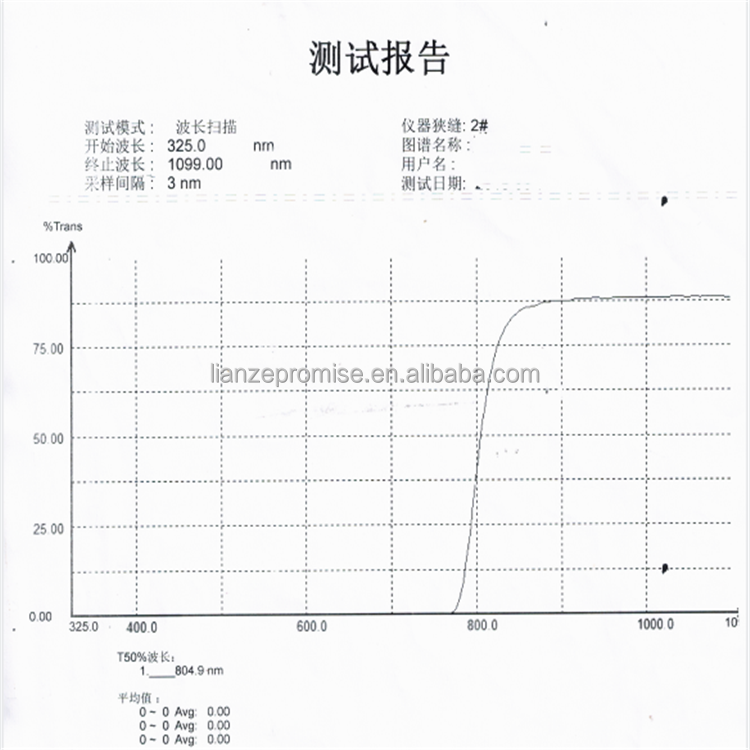

780nm transmission curve
With AR coating

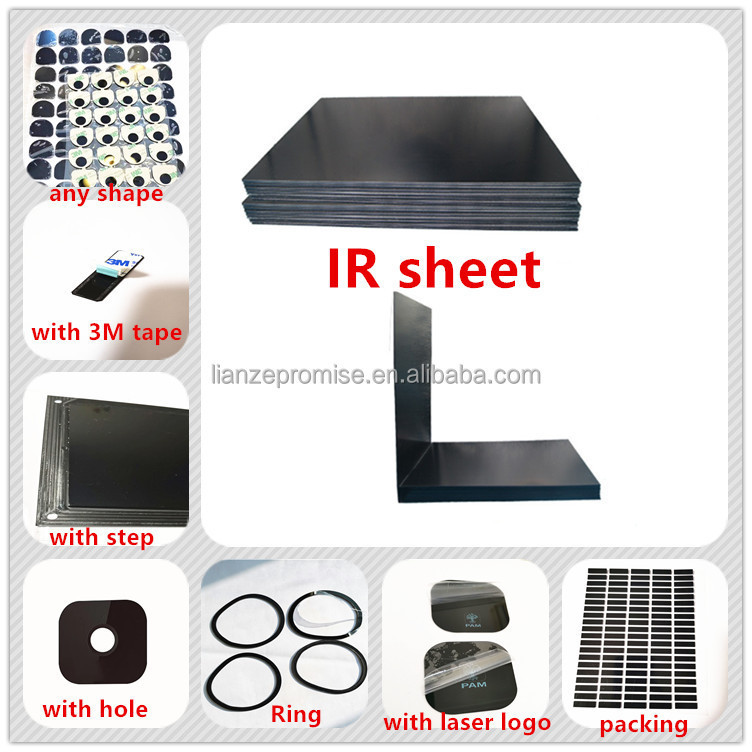

Details Images
