Quick Details
-
Color Temperature(CCT):
-
3000K/4000K/5000K/6000K
-
Color Rendering Index(Ra):
-
85
-
Support Dimmer:
-
1-10V/Dali/Push
-
Lifespan (hours):
-
75000
-
Product Weight（kg）:
-
4
-
CRI (Ra>):
-
85
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
SL-A65X4-40-X
-
Brand Name:
-
ShineLong
-
Input Voltage(V):
-
AC100-277/200-240
-
Working Lifetime(Hour):
-
50000
-
Lamp Luminous Flux(lm):
-
5000
-
Product Name:
-
LED Tri-proof Light
-
Power:
-
20w/30w/40w/50w/60w
-
Length:
-
600mm 1200mm 1500mm
-
Material:
-
Aluminum+PC Cover
-
Installation:
-
A.suspension B.surface Mounting
-
Power factor:
-
PF>0.95
-
Beam angle:
-
120 Degree
-
Waterproof:
-
IP 66
-
IK Rate:
-
I K 10
-
SDCM:
-
<4
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
130/160
-
IP Rating:
-
IP66
-
Warranty(Year):
-
5-Year
-
Color Temperature(CCT):
-
3000K/4000K/5000K/6000K
-
Color Rendering Index(Ra):
-
85
-
Support Dimmer:
-
1-10V/Dali/Push
-
Lifespan (hours):
-
75000
-
Product Weight（kg）:
-
4
-
CRI (Ra>):
-
85
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
SL-A65X4-40-X
-
Brand Name:
-
ShineLong
-
Input Voltage(V):
-
AC100-277/200-240
-
Working Lifetime(Hour):
-
50000
-
Lamp Luminous Flux(lm):
-
5000
-
Product Name:
-
LED Tri-proof Light
-
Power:
-
20w/30w/40w/50w/60w
-
Length:
-
600mm 1200mm 1500mm
-
Material:
-
Aluminum+PC Cover
-
Installation:
-
A.suspension B.surface Mounting
-
Power factor:
-
PF>0.95
-
Beam angle:
-
120 Degree
-
Waterproof:
-
IP 66
-
IK Rate:
-
I K 10
-
SDCM:
-
<4
With 11 years of continuous improvement and innovation

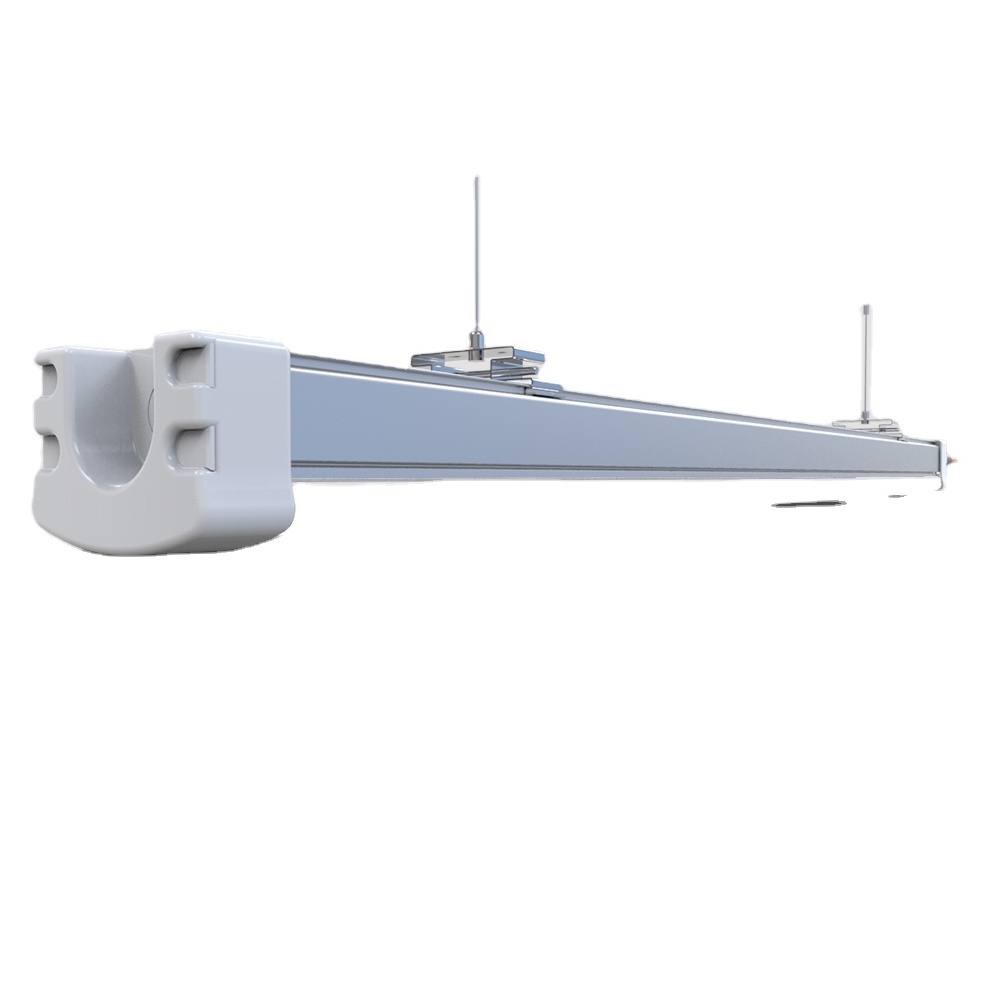

ShineLong tube led light fixture batten led tri-proof led light for garage fitting waterproof tube light
evolved to be one of ShineLong’s proudest products because of its high quality and superior performance. Not only does it offer an extensive application range from commercial to industrial for any retrofit or new installation, but it is also a genuine champion for being energy-efficient and cost-effective.
1. IP65 Water-proof , Dust-Proof , Moisture-proof
2. High Impact IK10 Test
3. Easy for series connection,ideal products for saving Labor cost
4. SDCM<4 , Meets ANSI and Erp Regulations, L80B50 (Ta = 25℃)>75000Hrs
5. Suitable for 3G/5G 1.5mm2 US/EU Cable (Max 12mm). No need to consider the cable length before instalation.
6. Microwave Sensor, 0/1-10V，DALI Dimmable , Emergency , function are avaliable
7. With ENEC/UL/SAA No Flickering Led Power Supply , 5 years warranty
8. Comply with UL,DLC ,SAA, TUV-GS ,CE requirements
9. 0.6M/1.2M/1.5M/1.8M/2.4M/3M , 20W/30W/40W/50W/60W/80W/100W/120W are available
10.Widely Application : Warehouse/Supermarket/Parking Lot /Corridor ...
|
Item Number
|
SL-A65X2-XX-X
|
|
SL-A65X4-XX-X
|
|
SL-A65X5-XX-X
|
|
|||||
|
Size
|
600*94*69mm
|
|
1200*94*69mm
|
|
1500*94*69mm
|
|
|||||
|
Power
|
20W
|
30W
|
40W
|
50W
|
50W
|
60W
|
|||||
|
LEDs
|
156 pcs
|
180 pcs
|
260 pcs
|
312 pcs
|
312 pcs
|
416 pcs
|
|||||
|
Bean Angle
|
120°
|
|
|
|
|
|
|||||
|
CRI
|
>80
|
|
|
|
|
|
|||||
|
AC Input
|
100-277V / 220-240V
|
|
|
|
|
|
|||||
|
Color Temperature
|
3000K/4000K/5000K/6000K
SDCM <4
|
|
|
|
|
|
|||||
|
Efficiency
|
Frosted PC cover:
110~120lm/w
, Striped PC cover:
120~130lm/w
|
|
|
|
|
|
|||||
|
Lumen Output (LM)
|
2200-2600
|
3300-3900
|
4400-5200
|
5500-6500
|
5500-6500
|
6600-7800
|
|||||
3.easy replacement and installation with brackets .
