FOB Reference Price: Get Latest Price
≥10 Sets
US $30
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Use:
Industrial
Place of Origin:
Jiangsu, China
Brand Name:
JIAYUAN
Model Number:
JY-HWR06
Depth:
0.8-2.5mm
Weight Capacity:
500-2000kg
Width:
500-3000mm
Height:
1000-12000mm
color:
any color
material:
Q235B steel
scale:
warehouse rack ,industrial
use:
wrehouse ,storage,showroom
model:
heavy duty shelf with decking panel
upright:
60*80 0r 70*90
beam:
step beam 50*80 or 50*110
surface finish:
power coating or zinc
decoration:
with foot plate ,safety locker, foot guard
size:
2000*700*2500mm

Quick Details

Type:
Plate Type
Material:
Steel
Feature:
Corrosion Protection
Use:
Industrial
Place of Origin:
Jiangsu, China
Brand Name:
JIAYUAN
Model Number:
JY-HWR06
Depth:
0.8-2.5mm
Weight Capacity:
500-2000kg
Width:
500-3000mm
Height:
1000-12000mm
color:
any color
material:
Q235B steel
scale:
warehouse rack ,industrial
use:
wrehouse ,storage,showroom
model:
heavy duty shelf with decking panel
upright:
60*80 0r 70*90
beam:
step beam 50*80 or 50*110
surface finish:
power coating or zinc
decoration:
with foot plate ,safety locker, foot guard
size:
2000*700*2500mm

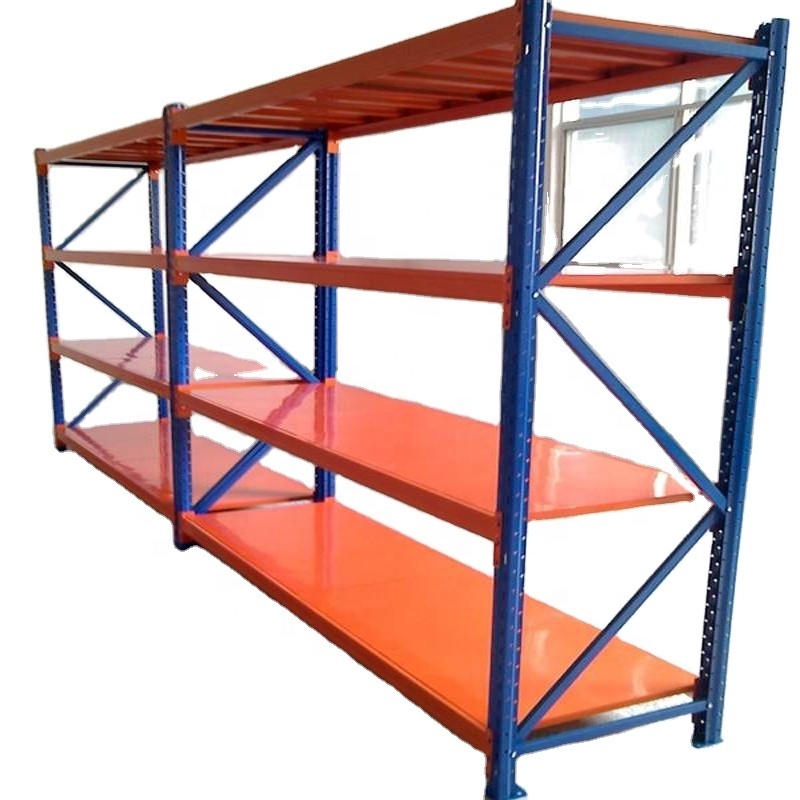

warehouse equipment industrial metal shelving units

Product Description

production Description

1) Appropriate for picking heavy goods by pallet.
2) High strength and durability.
3) High precision rolling components.
4) Easy for complete installation.
5) Araldite static powder coating.
6) Abundant accessories..

7) Every layer of the board can be adjusted freely;

8) Color and size can be adjusted according to your requirements.

9)The heavy-duty standing posts is good looking and anti-rust with fine powder-coating.

10)Different thickness, size, layers, and colors are available for you to choose

Beam Feature

4 holes 11"*2"*5" P shape beam,slotted connection&bolted connection. Beams can be adjusted every 2".

A,Hot rolled steel moulding, bearing evenly.
B,Various specification and load capacity to meet different storage requirements.
C,Beam hitch steel’s teeth are designed to different direction; this not only makes the teeth for increased rigidity.
D,Connection between beams and pillars are performed by safety bolts and clips.
E,Optional accessory is nameplate holder.

Uprights feature

In clined beam has two type longer,one is used loosely for the upper of the rack,the shorter densely for the lower to improve the bearance and solidity.

A,Polyhedron with thirteen faces.
B,Pitch is 50 mm, beam is adjustable.
C,Triangle hole easily tightens to hitch steel and strengthens the load capacity of posts.

Bracings

the horizontal and diagonal bar on standing colunm is square tube,no C-shaped ,square tube is 30*50 ,30*30, and so on.

Support for metal box

Used for placing mesh box and metal container etc. with stacking feet, safe and reliable.

Wood shelf and support bar

The plywood, 20mm thick, is in the salience of knighthead. Each pallet has a pair of knighthead.

Metal shelf

The steel material: cold rolling steel ,SPCC, DC01, ST12,Q195, the steel thickness ranges from 0.6mm to 1.2mm,

Safety locker

Locker, bolted,pin  for making racks stability,more strong.

Protector/ barrier

Located at the sides or corners of shelving to be away from impact by forklift.

Pallet stopper

For pallet stop, speciully for fork lift in top oppration.

Row-spacer

Row-spcaer,to be two lines rack connected.

model

light storage rack ( mm)

middle storage rack

heavy storage rack

heavy storage rack

heavy storage rack

specification

1500*500*2000

2000*600*2000

2000*800*3000

2000*800*3000

2000*800*3000

size of upright

30*50

30*80

60*80

70*90

70*90

size of bunton

30*50

40*80

50*80

50*110

50*120

thickness(upright)

1.0

1.2

2.0

2.5

2.5

thinkness(borad)

0.5

0.5

1.0

1.0

without

thinkness

bunton

1.0

1.2

2.0

2.5

2.5

capacity/level

150KG

300KG

1000KG

1500KG

2000KG

layer

4

4

3

3

3

unit price

48USD

77USD

155USD

205USD

199USD

upright price

6USD

9.5USD

29USD

37USD

37USD

cubic meter

0.21

0.39

0.62

0.71

0.51

weight

43.36KG

74.83KG

150.46KG

199.22KG

193.61KG

Benefits & Features:

· Knock-down components reduce freight costs.

· Flexibility in Design

· Easy to reconfigure or repair.

· Available in painted or galvanized finish

l 1.Frame and Beam Material:Cold rolling steel   SPCC  DC01,ST12,Q195/Q235B

l 2,Beam adjustment:The beam levels are adjustable

l 3. Procedure: Moulding+ Acid cleaning/or Sand cleaning+ Phosphating+ Degrease+ Dryness+ Powder coat+ Polymerization

l 4.Finishing:Epoxy-Polyester Coating

l 5.racking color:many colors are available such as orange,blue and so on.

l 6.Safety standard:Products and designs are in compliance with the most stringent safety norm AS4084-1993 and FEM10.202.

Pictures showing:

Packaging & Shipping

PACKAGE:

Standard export carton and bubble foam packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

Item

packing

Package/ carton

Standing colunm

Bubble foam

1pc

beam

Bubble foam

2pcs

Support bar

Bubble foam

25pcs

Plain baord

carton

6pcs

locker

carton

Shipping : by sea

Our Advantages

High Quality---- Quality Raw Material, Advanced Facilities, Fine Procedures.

High Productivity

Fast Delivery

Leading Level R & D Department

Experienced Marketing Manager

Professional Design Department

Accept OEM & ODM

Excellent After-sales Service

Pls kindly inform us the below information for us make a quotation:

1. AUTO CAD drawings

2. Width, height, length of the shelf

3. Size of your warehouse

4. How many bays and layers you need?

5. Loading capacity of each layer

6. LAR Color you want

Contact Us

SAY HELLO !

whatsapp/wechat:

15868918935

phone:

+86 15868918935

skype:

felixliiu107

FAQ
Q

How can I get the sample to check your quality?

A

After price confirmation, you can require for samples to check our product’s quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.

Q

What can I get the price?

A

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please tell us in your email so that we will regard you inquiry priority.

Q

What is your term of delivery?

A

We accept EXW, FOBShanghai or FOB nanjing or FObningbo. You can choosethe one which is the most convenient or cost effective for you.

Q

What about the lead time for the mass production?

A

Honestly, it depends on the order quantity and the season you place the order.
