Quick Details
-
Brand Name:
-
Mosentek
-
Theory:
-
5.8GHz microwave radar
-
Output:
-
220-240VAC
-
Brand:
-
Motion Sensor Switch
-
Voltage - Supply:
-
220-240VAC 50/60Hz
-
Operating Temperature:
-
-20~+70
-
Mounting Type:
-
ceiling and wall mounting
-
Package / Case:
-
fire resistant PC housing
-
Function:
-
ON/OFF control and daylight monitoring
-
Sensing Distance:
-
max. 10m for wall mounting
-
Sensing Object:
-
human body motion
-
Sensing Light:
-
daylight sensor and lux sensor
-
Application:
-
lighting control
-
Power supply:
-
220-240VAC 50/60Hz
-
frequency:
-
ISM band 5.8GHz
-
IP Rating:
-
IP20
-
Lux sensor:
-
dual photocell sensor
-
Loading capacity:
-
400W@220VAC
-
Warranty:
-
5 Years
-
Detection distance:
-
3-10m
Quick Details
-
Usage:
-
light control switch
-
Model Number:
-
MD001
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Mosentek
-
Theory:
-
5.8GHz microwave radar
-
Output:
-
220-240VAC
-
Brand:
-
Motion Sensor Switch
-
Voltage - Supply:
-
220-240VAC 50/60Hz
-
Operating Temperature:
-
-20~+70
-
Mounting Type:
-
ceiling and wall mounting
-
Package / Case:
-
fire resistant PC housing
-
Function:
-
ON/OFF control and daylight monitoring
-
Sensing Distance:
-
max. 10m for wall mounting
-
Sensing Object:
-
human body motion
-
Sensing Light:
-
daylight sensor and lux sensor
-
Application:
-
lighting control
-
Power supply:
-
220-240VAC 50/60Hz
-
frequency:
-
ISM band 5.8GHz
-
IP Rating:
-
IP20
-
Lux sensor:
-
dual photocell sensor
-
Loading capacity:
-
400W@220VAC
-
Warranty:
-
5 Years
-
Detection distance:
-
3-10m
Product Description

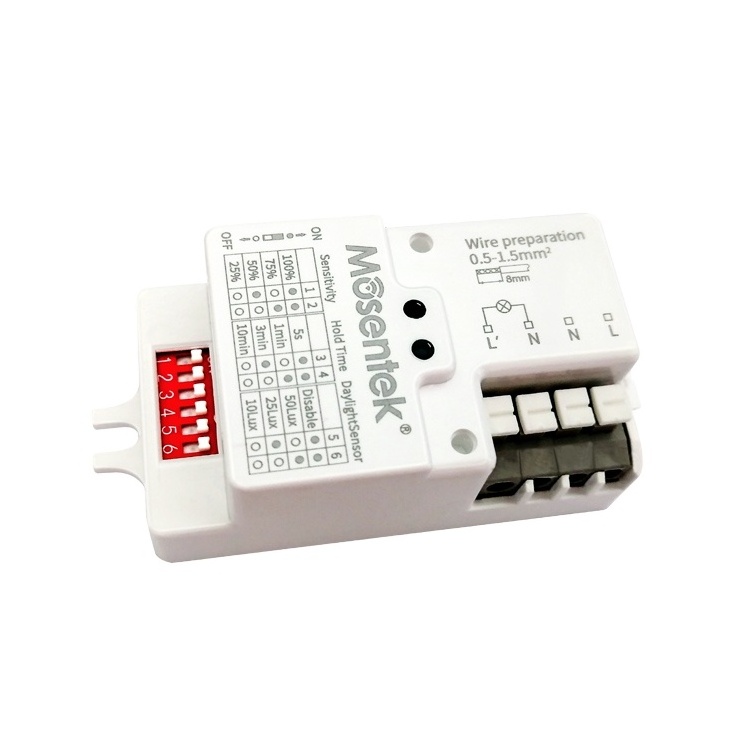

Mosentek MD001 is a 5.8GHz microwave motion sensor switch build in with dual photocell sensors.
1. 5.8GHz ISM band, microwave doppler radar motion sensor.
2. Build in with two light sensors to detect the daylight and LED light to lux off control.
3. Detection range adjustable, holdtime, lux sensitivity adjustable.
4. Maximum loading up to 400W@220VAC.
5. Reinforce detection range, up to 12m for wall mount installation.
6. Compact configuration design suitable for bulbhead, ceiling light, wallpack.
7. 5 year warranty.
