Quick Details
-
Applicable Industries:
-
packing machine
-
Weight (KG):
-
280
-
Voltage:
-
220V 50/60Hz
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SHIGAN
-
Dimension(L*W*H):
-
1070(L)*1020(W)*930(H)
-
Product name:
-
Automatic vertical packing machine for granular powder
-
Max Film Width:
-
420mm vertical packing machine
-
Packing Speed:
-
10-70 bags/min
-
Bag length:
-
80-320mm
-
Air Consumption:
-
0.5m3/min,0.8Mpa
-
Bag Size:
-
W:60-200mm L:60-300mm
-
Driver Method:
-
Stepper Motor
-
Film material:
-
Plastic, Paper, packing film/ foil
Quick Details
-
Function:
-
Capping, FILLING, Sealing
-
Packaging Type:
-
Bags, CANS, Cartons, Film, Pouch, Stand-up Pouch
-
Packaging Material:
-
Paper, Plastic, Wood
-
Applicable Industries:
-
packing machine
-
Weight (KG):
-
280
-
Voltage:
-
220V 50/60Hz
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SHIGAN
-
Dimension(L*W*H):
-
1070(L)*1020(W)*930(H)
-
Product name:
-
Automatic vertical packing machine for granular powder
-
Max Film Width:
-
420mm vertical packing machine
-
Packing Speed:
-
10-70 bags/min
-
Bag length:
-
80-320mm
-
Air Consumption:
-
0.5m3/min,0.8Mpa
-
Bag Size:
-
W:60-200mm L:60-300mm
-
Driver Method:
-
Stepper Motor
-
Film material:
-
Plastic, Paper, packing film/ foil

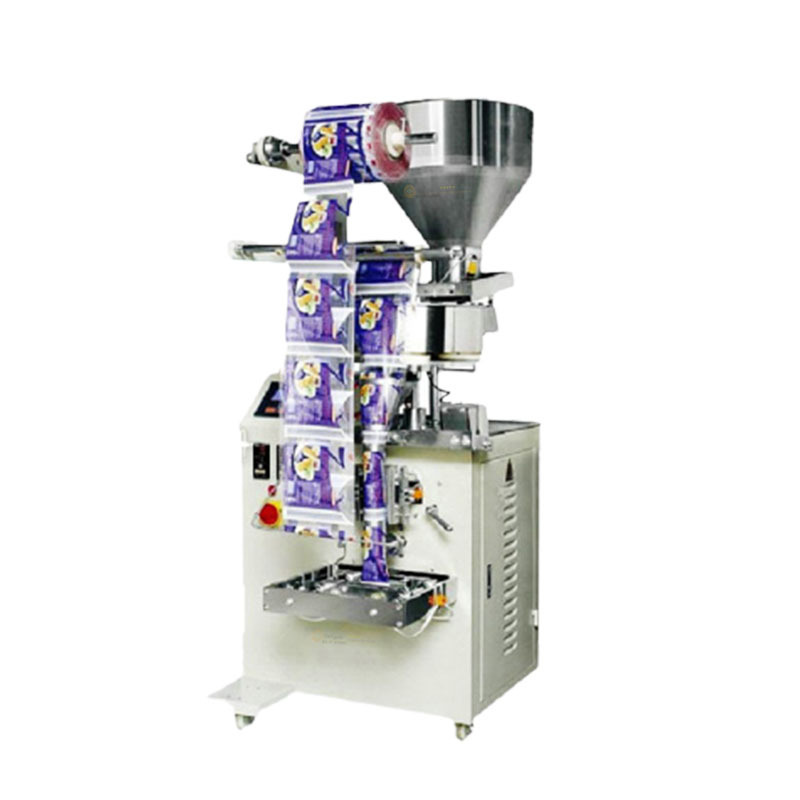

Automatic vertical packing machine for granular powder, stick sachet filling packaging machine for sale price
Automatic p acking machine is a high-intelligent packing machine, set in one of the whole Chinese (or English) show that the use of advanced microcomputer chip control photoelectric tracking correction system, you can save manpower and resources, improve work efficiency, vertical packaging machine can be granular desiccant, MSG , Sugar, salt, washing powder and other materials for quantitative packing. You are welcome to contact us at any time for further information.
|
Model
|
SGBZ-420
|
|
Packing Speed
|
10-70Bags/Min
|
|
Bag Size
|
W:60-200mm L:60-300mm
|
|
Pouch Material
|
POPP/CPP,POPP/VMCPP,BOPP/PE,NY/PE,PET/PET'
|
|
Type of Bag Making
|
Pillow bag,Gusset bag,Punching bag,Connecting bag
|
|
Max Film Width
|
420mm
|
|
Film thickness Width
|
0.04-0.09mm
|
|
Air Consumption
|
0.5m3/min,0.8Mpa
|
|
Power Parameter
|
220V/2000W/ 50/60HZ
|
|
Package Size (mm)
|
1550(L)×1150(W)×1750(H)
|
|
Total Weight(Kg)
|
450
|
Packing machine fro granule powder Main Function
1.
PLC computer control system
. PLC from Japan or
Germany
2. Big touch From
Tai wan
. Easy to
operate and control the machine
3.
High precise positioning
with servo film transporting system .Servo motor from
Germany Siemens
to ensure stable.
4.
Warn protection function
5. Machine will automatically complete all
packaging processes from measuring, feeding, filling, printing, finished bag.
6. The way of bag making: the machine can
make pillow-type bag
and
standing bag
according to
customer's requirements
. Punching hole bag & connect 5-12bags and so on.
Automatic vertical packing machine for granular powder, stick sachet filling packaging machine for sale price
1,
Small bag
automatic
packaging machine
key switch + digital display. Stable and reliable operation.
2,
Automatic vertical
packing machine
computer control, the system uses stepper motor subdivision technology, bagging accuracy, error less than 1 mm.
3, automatic tracking color standard, intelligent eliminate false color, automatic positioning of the bag, fixed length.
4, heat sealing dual temperature control, intelligent temperature control, good thermal balance, to ensure the quality of sealing, suitable for a variety of packaging materials.
Product Application
Automatic packing machine
is suitable for weighing small grain, powder such as cereal sugar, glutamate, salt, rice, sesame, milk powder, coffee, seasoning powder etc.
This
automatic filling sealing packaging machine
can also be used for different types of products by changing the measuring head.
For granular products, we change the spiral filler to a measuring cup or a combination
For liquid products, we switch to pumps to complete the packaging.
We support customization, our technicians will design the most efficient machine according to your specific requirements
Automatic vertical packing machine for granular powder, stick sachet filling packaging machine for sale price
Shanghai Shigan Industrial Co., Ltd is a high-tech enterprise incorporating technology, research development and processing and marketing. The company has 11 years of experience in weighing areas. It provides customers with cost-effective checkweigher, multi-level screening scales, multihead weigher, packing machine and corresponding auxiliary devices. Some products not only surpasses similar imported products, but also exports to all over the world. It is popular with the masses of users and dealers and gains praise from them.
12 Months Guarantee
★ 12 months free main parts change (Please return the damaged parts by airmail)
★ Overseas engineers available (You only have to pay part of the freight)
Customization
All our machines can be customized , according to your product's features and your workshop environment, or your production line.
After-sales Service Provided
Engineers availbale to provide after-sales service overseas in order to help customers solve technical problems.
Q1: Are you manufacturer or trader? Where are your factory located?
A:
We are manufacturer and we are located in Shanghai,China.
Q2: What's your main product and what is your main foreign market?And do you have your own design team?
A: Our main products are
check weight machines,floor scales, mulitihead weigher and truck scales, linear weigher, vertiacl packing machine
and our main foreign market are Asia, North America, Europe, Africa.And we have our own design team for products design
.
Q3: what are the advantages of your machines?And how can i believe the quality of your product?
A: Highest precision (a margin of error) of our products can achieve ±0.05g and the highest speed can achieve 300pcs/min .Our electronic parts of equipment all adopt international famous brand.For example,the switch is Germanic Schneider , Conveyor Belt is Swiss HABASIT ,The relay is
Japanese OMRON .Once tested as qualifed .our machine would be sent out.So The quality of our product is stable and reliable.Q4: What are your company requests of payment terms?
A:
TT,L/C,Western Union,Money Gram,Paypal,International Credit Card.
Q5: 5.What kind of Transportation could you provide?And are you able to update the production process Information in time after placing our order?
A: Sea shipping, air Shipping, and international express. And after confirming your order ,we would keep you
updated of production details of emails and photos.
Q6: Are you provide product metal parts and provide us technical guidance?
Wearing parts,for example,
motor belt,Disassembly tool(free)
are what we could provide.And we can give you
technical guidance.
Q7: How long is your warranty?
A:
12 months free warranty, life-long maintenance.
Q8: What kinds of overseas service can you offer?
A: Our technical staff can
go abroad
to provide you with
technical guidance
.
