Quick Details
-
Warranty:
-
12 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BATTLESNAKE
-
Model Number:
-
CF405A
-
Product type:
-
Car central locking system
-
Product name:
-
Car Door Lock Actuator
-
Feature:
-
Remote Control
-
Feature1:
-
Car searching
-
Feature2:
-
LED indicator
-
Keywords:
-
Car central lock unlock Actuator
-
Quality:
-
High-Quality
-
OEM/ODM:
-
Yes
-
Application:
-
Universal Car
-
Manufacturer:
-
100% Real/10 Years+
Quick Details
-
Car Fitment:
-
FORD USA, HONDA, bmw, Audi, Toyota, PEUGEOT, Skoda
-
Control Distance:
-
100m~200m
-
Function:
-
Anti-Theft Alarm, Alarm Immobiliser System
-
Warranty:
-
12 Months
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BATTLESNAKE
-
Model Number:
-
CF405A
-
Product type:
-
Car central locking system
-
Product name:
-
Car Door Lock Actuator
-
Feature:
-
Remote Control
-
Feature1:
-
Car searching
-
Feature2:
-
LED indicator
-
Keywords:
-
Car central lock unlock Actuator
-
Quality:
-
High-Quality
-
OEM/ODM:
-
Yes
-
Application:
-
Universal Car
-
Manufacturer:
-
100% Real/10 Years+
Car Remote Central Locking System Keyless Entry Car Alarm System Remote Central Kit Anti-Theft Door Lock
Photo:

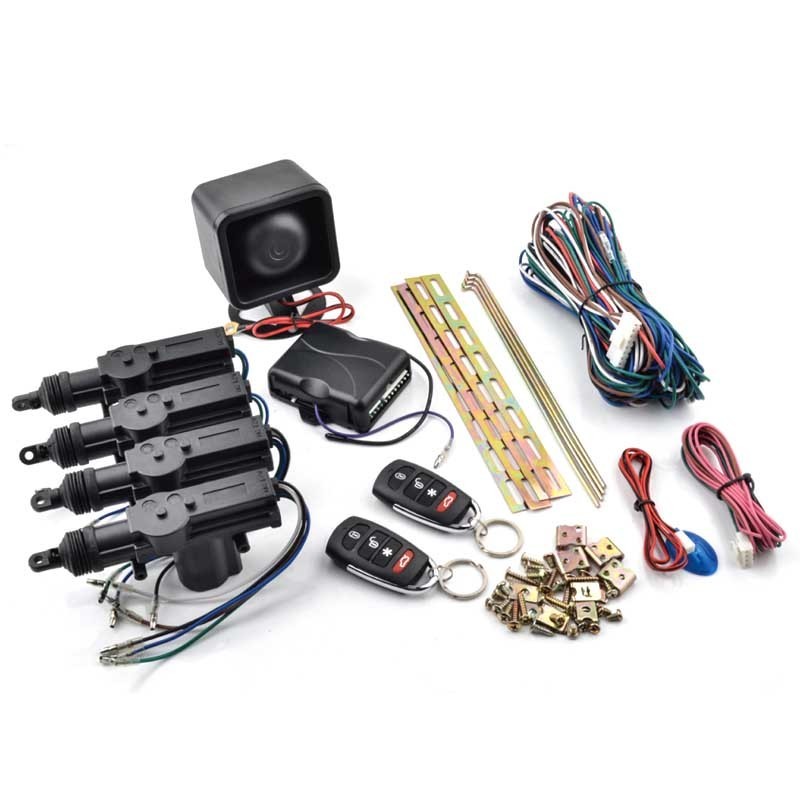

CF405 Remote Car Central Locking System whole kits view
CF405 Remote Central Locking System includes 2 items as the following:
|
CF405A |
1 master central locking system with the remote and the mainunit |
|
CF405B |
2 master central locking system with the remote and the mainunit |
Function:
CF405 Remote Car Central Locking System functions:
|
Lock/Unlcok
|
Learning code |
|
Car searching
|
Lock and unlock with signal light flash |
|
Window closer output(-)
|
Central control time selection(0.5s and 4s) |
| With the siren, lock and unlock with the siren beep | With the system LED lamp to show the system's status |
|
Trunk release output(+/- OPTION)300mA
factory setting is +300mA |
With the top quality door actuators |
Advantage:
1. With the system siren , system lock and unlock with the siren beep confirmation
2. With the trunk release output(can be selected - or +)
3. Equip with the top quality door actuators
4. With the LED indication lamp to show the current status of the vehicle
Door actuator of CF405's specifications:
| Operation temperature | -30~80°C | Stroke | 21-22mm |
| Voltage | 12/24V | No-load &load current | 1.5A+ OR -5% & 3A+ or - 10% |
| Actuating force | 5.5kgs | The cover materials(actuators & mainunit) | 757ABS |
| Endurance(up & down) | >100000times | Wiring |
2 master:35.4M; 1 master:27M |
Control box view
CF405 Other Accessories
Remote controller view
Wiring diagram:
Packing:
| Size(cm) | Qty | Weight(kgs) | |
| Color box | 28*18*6 | 1pcs | 1.4kgs |
| Carton | 58*38*33 | 20pcs | 28kgs |
| 20GP container | 7500sets | 10500kgs |
