- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TH
-
Copper Thickness:
-
1oz
-
Min. Hole Size:
-
0.1mm
-
Min. Line Width:
-
0.1mm(4mil)
-
Min. Line Spacing:
-
0.1mm(4mil)
-
Surface Finishing:
-
HASL
-
Board Size:
-
1000*1000MM
-
Solder Mask:
-
Green
-
Silkscreen:
-
White
-
Layer:
-
1-16 Layer
-
Application:
-
Electronics Device
-
Product name:
-

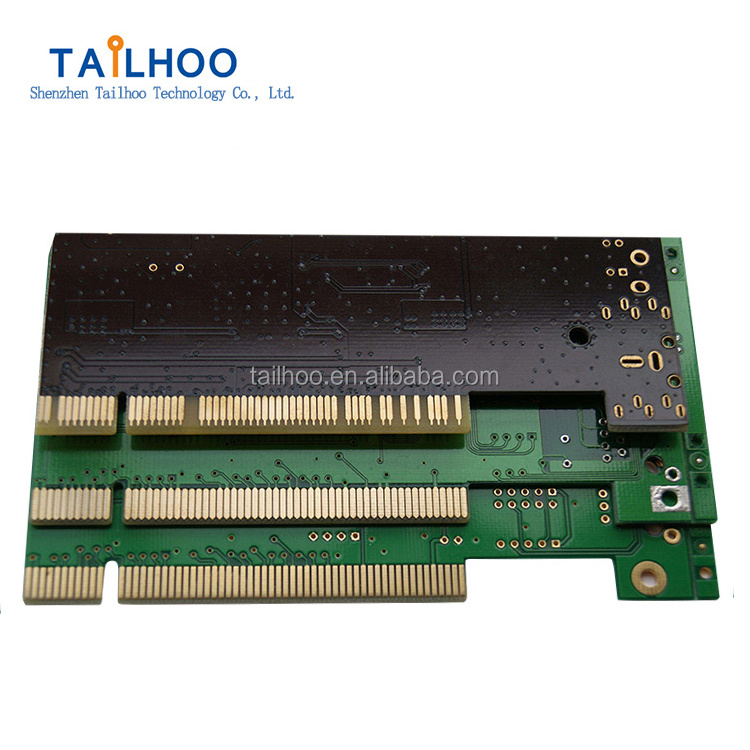

PCB Prototype Board
-
Service:
-
OEM PCB Assembly
Quick Details
-
Base Material:
-
FR-4
-
Board Thickness:
-
0.2mm-6.00 mm(8mil-126mil)
-
Model Number:
-
K-049
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TH
-
Copper Thickness:
-
1oz
-
Min. Hole Size:
-
0.1mm
-
Min. Line Width:
-
0.1mm(4mil)
-
Min. Line Spacing:
-
0.1mm(4mil)
-
Surface Finishing:
-
HASL
-
Board Size:
-
1000*1000MM
-
Solder Mask:
-
Green
-
Silkscreen:
-
White
-
Layer:
-
1-16 Layer
-
Application:
-
Electronics Device
-
Product name:
-
PCB Prototype Board
-
Service:
-
OEM PCB Assembly
Shenzhen Tailhoo Technology Co.,Ltd is a professional pcb Manufacturer.
As a professional pcb&pcba manufacturer, With our 6000 square meters pcb production base on Bao'an District Shenzhen, And with professsional engineers team and rich experience in pcb fabrication, component sourcing,pcb assembly and electronic devices design service.
our mission is to reach your requirements with the high-level quality standards in fast lead time. we try our best to become your best one-stop( From concept to schematic design-software design-pcb layout-selection of components-enclosure design-package design-test guide) electronic development choice and partner of PCB solution provider.
With our professional engineers team, we can offer :
- Circuit Board Design, Circuit Board PCB Manufacture, PCBA Assembly
- ONE-STOP-SERVICE
- OEM service
- PCB file or Gerber file needed
- PCB clone with sample - Reverse Engineer(ic decode, pcb copy.)
- Quality guarantee and professional after-sell service
| Item | Specification | |
| 1 | Numbr of Layer | 1-16Layers |
| 2 | Material |
FR-4,Aluminum,Flexible PCB |
| 3 | Surface Finish |
HASL(LF), Gold plating,Immersion gold, Immersion Tin, OSP(Entek) |
| 4 | Finish Board Thickness | 0.2mm-6.00 mm(8mil-126mil) |
| 5 | Copper Thickness | 1/2 oz min;12 oz max |
| 6 | Solder Mask | Green/Black/White/Red/Blue/Yellow |
| 7 | Min.Trace Width & Line Spacing | 0.075mm/0.1mm(3mil/4mil) |
| 8 | Min.Hole Diameter for CNC Driling | 0.1mm(4mil) |
| 9 | Min.Hole Diameter for punching | 0.9mm(35mil) |
| 10 | Biggest panel size | 610mm*508mm |
| 11 | Hole Positon | +/-0.075mm(3mil) CNC Driling |
| 12 | Conductor Width(W) | 0.05mm(2mil)or;+/-20% of original artwork |
| 13 | Hole Diameter(H) | PTH L:+/-0.075mm(3mil);Non-PTH L:+/-0.05mm(2mil) |
| 14 | Outline Tolerance | 0.125mm(5mil) CNC Routing;+/-0.15mm(6mil) |
| 15 | Warp & Twist | 0.70% |
| 16 | Insulation Resistance | 10Kohm-20Mohm |
| 17 | Conductivity | <50ohm |
| 18 | Test Voltage | 10-300V |
| 19 | Panel Size | 110×100mm(min);660×600mm(max) |
| 20 | Layer-layer misregistration | 4 layers:0.15mm(6mil);6 layers:0.25mm(10mil) |
| 21 |
Min.spacing between hole edge to circuity pattern of an inner layer |
0.25mm(10mil) |
| 22 |
Min.spacing between board ouline to circuitry pattern of an inner layer |
0.25mm(10mil) |
| 23 | Board thickness tolerance | 4 layers:+/-0.13mm(5mil);6 layers:+/-0.15mm(6mil) |
| 24 | Impedance Control | +/-10% |
| 25 | Different Impendance | +-/10% |
- For pcb design
- Schematic
- PCB outline design
- Bom list
- For pcb and pcba manufacture
- Gerber file of the bare PCB board,PCB sample
- Board Specification
- BOM (Bill of material) for assembly
- Testing Guide & Test Fixtures if necessary
- Programming files & Programming tool if necessary
- For electronic design
- Clear Concept
- Product specification/Function list
- Budget,Target Market,Expected Unit Price,Delivery Time
Our process view :
Our partner view :
Quality
Our UL/Rohs standards insure quality assembly from start to finish. Whether it's a custom sample or mass product, Tailhoo will adhere to the highest quality standards.
Tailhoo offers the latest in assembly capabilities and qualifications insuring that quality is built into every product we produce.
Experience
Our management team has over 10years of electronic industry knowledge. Our engineering team has over 7 years experience.
Protecting your interests
Protecting your Intellectual Property is one of the most importants to us! Our staff are all trained professionals to work under strict confidentiality contract.
Flexibility
We listen to your unique and special business requirements patiently and then give our best solution fastest.
