Quick Details
-
Warranty:
-
1 year, 12 Months
-
Brand Name:
-
Sinyane
-
Model Number:
-
KCB
-
Place of Origin:
-
Chongqing, China
-
Horsepower:
-
0.5~268hp
-
Outlet Size:
-
20~200mm
-
Power:
-
0.37~200, Electric
-
motor:
-
electric
-
Product name:
-
stainless steel raw boiler fuel liquid oil water transfer pump
-
Material:
-
cast iron/stainless stee/copper
-
Feature:
-
High Efficiency
-
Max Flow:
-
570m3/h
-
Certificate:
-
ISO CE
-
Max head:
-
145m
-
OEM:
-
Availiable
Quick Details
-
Application:
-
Biofuel Industry, Commercial Buildings, Developing World Water Solutions, Industrial Boilers, Industrial Utilities, Irrigation and Agriculture, Machining, Marine, Metal and Equipment Manufacturers, Pharmaceutical industry, Raw Water Intake, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
0~15bar
-
Voltage:
-
220/380
-
Warranty:
-
1 year, 12 Months
-
Brand Name:
-
Sinyane
-
Model Number:
-
KCB
-
Place of Origin:
-
Chongqing, China
-
Horsepower:
-
0.5~268hp
-
Outlet Size:
-
20~200mm
-
Power:
-
0.37~200, Electric
-
motor:
-
electric
-
Product name:
-
stainless steel raw boiler fuel liquid oil water transfer pump
-
Material:
-
cast iron/stainless stee/copper
-
Feature:
-
High Efficiency
-
Max Flow:
-
570m3/h
-
Certificate:
-
ISO CE
-
Max head:
-
145m
-
OEM:
-
Availiable

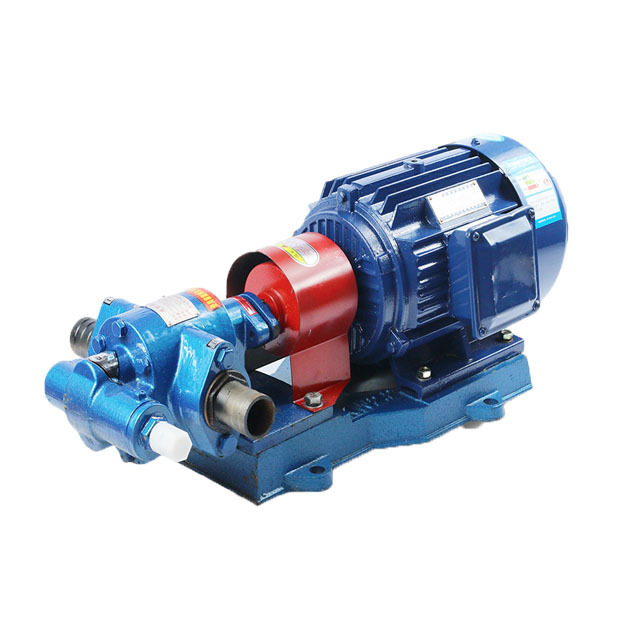

KCB gear oil pump is suitable for conveying various lubricity of liquid, the temperature is not higher than 85 ℃, if you need high temperature 300 ℃, can be associated with this unit with high temperature resistant material, viscosity of 5 to 1500 CST.
KCB gear pump is not suitable for conveying corrosive, containing hard particles or fiber, highly volatile or low flash point liquid, such as stupid. (if the pump USES copper gear, can be used for gasoline; If the pump USES stainless steel, can transport corrosive liquid. Please specify when ordering!
INQUIRE NOW
|
Item |
KCB Series Oil Gear Transfer Pump |
|
Suction |
Self priming |
|
Model |
KCB series |
|
Material |
Cast iron/Stainless steel/Copper |
|
Mode |
Horizontal |
|
Seal |
Mechanical seal/Pacing seal |
|
Speed |
940~1420r/min |
|
Theory |
Gear pump |
|
Usage |
Oil, high viscosity liquid |
|
Power |
Electric |
|
Standard or Non |
Standard |
|
Shaft |
Stainless steel |
|
Outlet diameter |
15-100mm |
|
Capacity |
1.1-570m³/h |
|
Head |
28-145m |
|
Power |
1.5-250kw |
|
Warranty |
1year |
|
Certificate |
ISO9001:2008 |
|
OEM |
Acceptable GET THE LATEST PRICE |
