Quick Details
-
Product name:
-

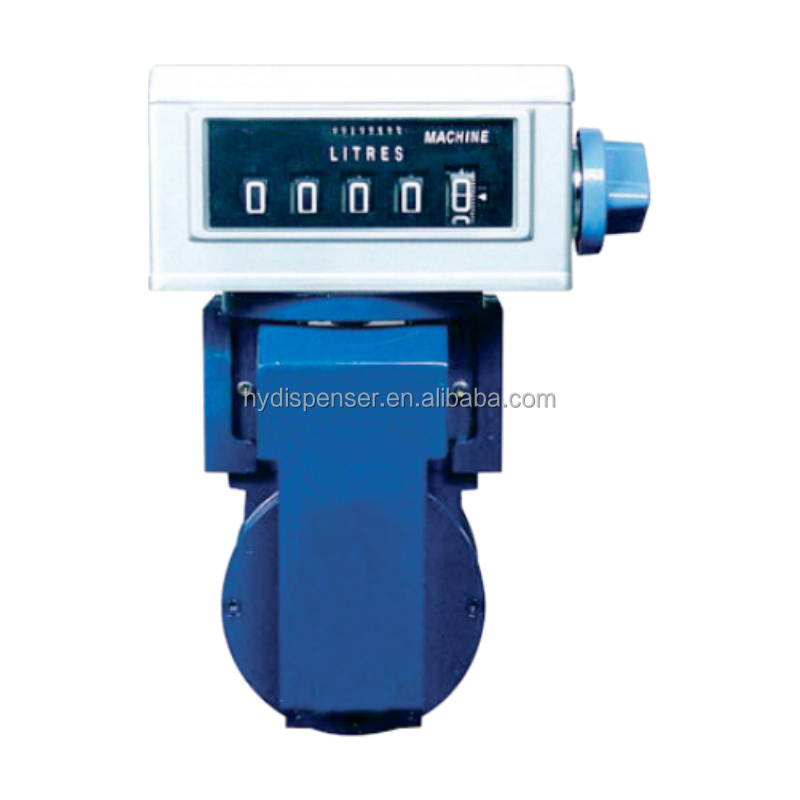

SM series Positive Displacement Vane Meter
-
Application:
-
oil, solvents, chemicals. paints, fats and fertilizer.
-
Diameter:
-
2''-3'' 50mm-80mm
-
Accuracy:
-
±0.2%
-
Repeatability:
-
=0.05%
-
flow range:
-
40~400L/min
-
Max viscosity:
-
800cps/3850ssu
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
HuiYang, Huiyang
-
Model Number:
-
WDFMC-100, WDFMC-100
-
Product name:
-
SM series Positive Displacement Vane Meter
-
Application:
-
oil, solvents, chemicals. paints, fats and fertilizer.
-
Diameter:
-
2''-3'' 50mm-80mm
-
Accuracy:
-
±0.2%
-
Repeatability:
-
=0.05%
-
flow range:
-
40~400L/min
-
Max viscosity:
-
800cps/3850ssu
Technical specification
|
Model
|
WDSM-50
|
WDSM-80
|
WDFMC-100
|
||
|
Size
|
50mm/2"
|
80mm/3"
|
100mm/4"
|
||
|
Flow rate range
|
40-400L/min
|
133.3-1333L/min
|
150-1500L/min
|
||
|
US gallon
|
10.5
|
36
|
|
||
|
Accuracy
|
±0.2%
|
|
|
||
|
Repeatability
|
=0.05%
|
|
|
||
|
Max operation pressure
|
8Bar/120PS/8.3kg/cm³
|
10Bar/150PSI/10.5kg/cm³
|
83×46×65cm
|
||
|
working temp
|
-40℃~+60℃
|
-40℃~+60℃
|
80kg
|
||
|
max viscosity
|
800cps/3850SSU
|
800cps/3850SSU
|
96kg
|
||
Advantage
WDFMC Series rotary vane meters are single case,angle-type,rotary vane,positive displacement meters.
Superior accuracy and a wide range of products from gasoline to kerosene to fuel oils can be metered.
Compact,versatile design can be readily fit into nearly all installations.
Low pressure loss ,a true gravity flow meter
Long service life,low friction ball bearings,fixed cam-type shaft construction give sustained accuracy and long time operation
Application
Blending,batching,dispensing,inventory control, and transfering of oils,solvents,chemicals,paints,fertilizer,etc.
