Quick Details
-
Power:
-
3kw
-
Min. Lifting Height:
-
1950
-
Table Size:
-
2400 X 1350 mm
-
Weight:
-
2480 kg
-
Marketing Type:
-
New Product 2022
-

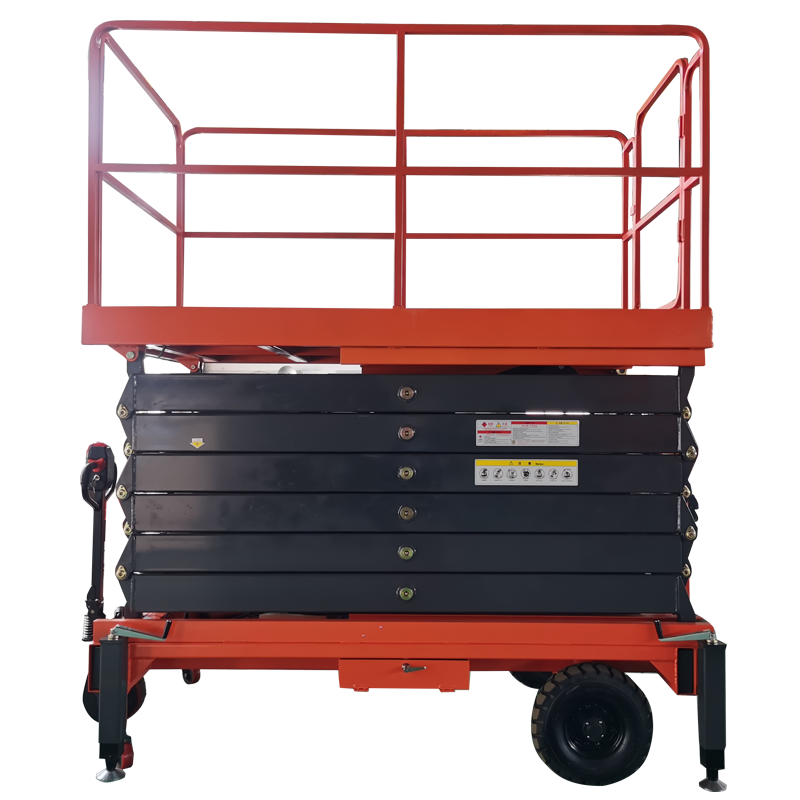

Product name:
-
Full electric scissor lift
-
Color:
-
Red, Black, can customized
-
Feature:
-
Easy Operation Safety Convenience
-
Lifting time:
-
90S
-
Wheel type:
-
rubber tire
-
Application:
-
Aerial work
-
Main Material:
-
High duty steel
-
After-sales Service Provided:
-
Free spare parts
-
Lifting system:
-
Electric scissor lift
-
Capacity:
-
500Kg
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Haoke
-
Power:
-
3kw
-
Min. Lifting Height:
-
1950
-
Table Size:
-
2400 X 1350 mm
-
Weight:
-
2480 kg
-
Marketing Type:
-
New Product 2022
-
Product name:
-
Full electric scissor lift
-
Color:
-
Red, Black, can customized
-
Feature:
-
Easy Operation Safety Convenience
-
Lifting time:
-
90S
-
Wheel type:
-
rubber tire
-
Application:
-
Aerial work
-
Main Material:
-
High duty steel
-
After-sales Service Provided:
-
Free spare parts
-
Lifting system:
-
Electric scissor lift
-
Capacity:
-
500Kg
Product Paramenters
|
12 meter scissor lift scaffolding 18m 500kg hydraulic electric lift mobile scissor shear fork lift platform
|
|
|
|
|
|
|
|
|
|
|||||||||
|
Model
|
Load Capacity (kg)
|
Table Size
(mm) |
Maximum Platform Height
(mm) |
Height (mm)
|
Motor Power
(kw) |
Overall Dimension
|
Oil Cylinder
|
Sheer Weight (kg)
|
Wheel
|
|||||||||
|
HKG0.3-6
|
300
|
1780×840
|
6000
|
1080
|
1.5
|
1900x1000x1080
|
Φ80*2
|
850
|
200 polyurethane
|
|||||||||
|
HKG0.5-6
|
500
|
1780×840
|
6000
|
1080
|
|
|
|
|
|
|||||||||
|
HKG0.3-7.5
|
300
|
2000×1000
|
7500
|
1650
|
1.5
|
2100x1250x1650
|
Φ80*2
|
1270
|
500-8 rubber aerated
|
|||||||||
|
HKG0.5-7.5
|
500
|
2000×1000
|
7500
|
1650
|
|
|
|
|
|
|||||||||
|
HKG0.3-9
|
300
|
2000×1000
|
9000
|
1800
|
2.2
|
2100x1250x1800
|
Φ80*3
|
1500
|
500-8 rubber aerated
|
|||||||||
|
HKG0.5-9
|
500
|
2000×1000
|
9000
|
1800
|
|
|
|
|
|
|||||||||
|
HKG0.3-11
|
300
|
2100×1200
|
11000
|
1810
|
2.2
|
2200x1450x1810
|
Φ80*3
|
1700
|
500-8rubber aerated
|
|||||||||
|
HKG0.5-11
|
500
|
2100×1200
|
11000
|
1810
|
|
|
|
|
|
|||||||||
|
HKG0.3-12
|
300
|
2400×1350
|
12000
|
1950
|
3
|
2500x1600x1950
|
Φ100*3
|
2480
|
500-8 rubber aerated
|
|||||||||
|
HKG0.5-12
|
500
|
2400×1350
|
12000
|
1950
|
|
|
|
|
|
|||||||||
|
HKG0.3-14
|
300
|
2600×1350
|
14000
|
2100
|
4
|
2700x1600x2100
|
Φ100*3
|
2800
|
600-9 rubber aerated
|
|||||||||
|
HKG0.5-14
|
500
|
2600×1350
|
14000
|
2100
|
|
|
|
|
|
|||||||||
|
HKG0.5-16
|
500
|
3100×1400
|
16000
|
2100
|
4
|
3200x1650x2100
|
Φ100*4
|
3500
|
600-9 rubber aerated
|
|||||||||
|
HKG1-6
|
1000
|
1780x840
|
6000
|
1500
|
2.2
|
1900x1250x1500
|
Φ100*2
|
1300
|
500-8 rubber aerated
|
|||||||||
|
HKG1-7.5
|
1000
|
2100x1000
|
7500
|
1650
|
4
|
2200x1250x1570mm
|
Φ100*2
|
1650
|
500-8 rubber inflatable wheel
|
|||||||||
|
HKG1-9
|
1000
|
2100×1200
|
9000
|
1770
|
4
|
2200x1450x1770
|
φ100*2
|
1900
|
500-8 rubber aerated
|
|||||||||
|
HKG1-11
|
1000
|
2300×1350
|
11000
|
1990
|
4
|
2400x1600x1990
|
Φ80*6
|
2860
|
600-9 rubber aerated
|
|||||||||
|
HKG1-12
|
1000
|
2400×1350
|
12000
|
1910
|
4
|
2500x1600x1910
|
Φ80*6
|
2900
|
600-9 rubber aerated
|
|||||||||
|
HKG1-14
|
1000
|
2700×1500
|
14000
|
2200
|
4
|
2800x1750x2200
|
Φ100*6
|
3500
|
600-9 rubber aerated
|
|||||||||
|
HKG1-16
|
1000
|
2600×1500
|
16000
|
2420
|
4
|
2700x1750x2420
|
Φ100*2、Φ80*4
|
4000
|
600-9 rubber aerated
|
|||||||||
|
HKG1-18
|
300
|
3100×1500
|
18000
|
2430
|
4
|
3200x1750x2430
|
Φ100*5
|
4500
|
600-9 rubber aerated
|
|||||||||
