Customized service: customize equipment according to your requirements.
Installation service: send our workers to your country to install the production line.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
E.P
-
Voltage:
-
380V/220V
-
Weight:
-
1.1 KG
-
Dimension(L*W*H):
-
2.7*0.9*1.25M
-
Name:
-
Charcoal Briquette Extruder Machine
-
Finished Products:
-
Hexagon Charcoal Briquettes
-
Application:
-
Charcoal Briquetting
-
Power:
-
18.5-22KW
-
Capacity:
-
1200-1500kg/h
-
Pressure Type:
-
Punching Mechanical Type
-
Finished shape:
-
Cylindrical, Hexagonal
-
Raw Material:
-
charcoal, coal, coke, coconut shell, bamboo, rice husk, sawdust
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 Year
-
Core Components:
-
mould
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
E.P
-
Voltage:
-
380V/220V
-
Weight:
-
1.1 KG
-
Dimension(L*W*H):
-
2.7*0.9*1.25M
-
Name:
-
Charcoal Briquette Extruder Machine
-
Finished Products:
-
Hexagon Charcoal Briquettes
-
Application:
-
Charcoal Briquetting
-
Power:
-
18.5-22KW
-
Capacity:
-
1200-1500kg/h
-
Pressure Type:
-
Punching Mechanical Type
-
Finished shape:
-
Cylindrical, Hexagonal
-
Raw Material:
-
charcoal, coal, coke, coconut shell, bamboo, rice husk, sawdust
-
Certification:
-
CE
Products Description
Product Description

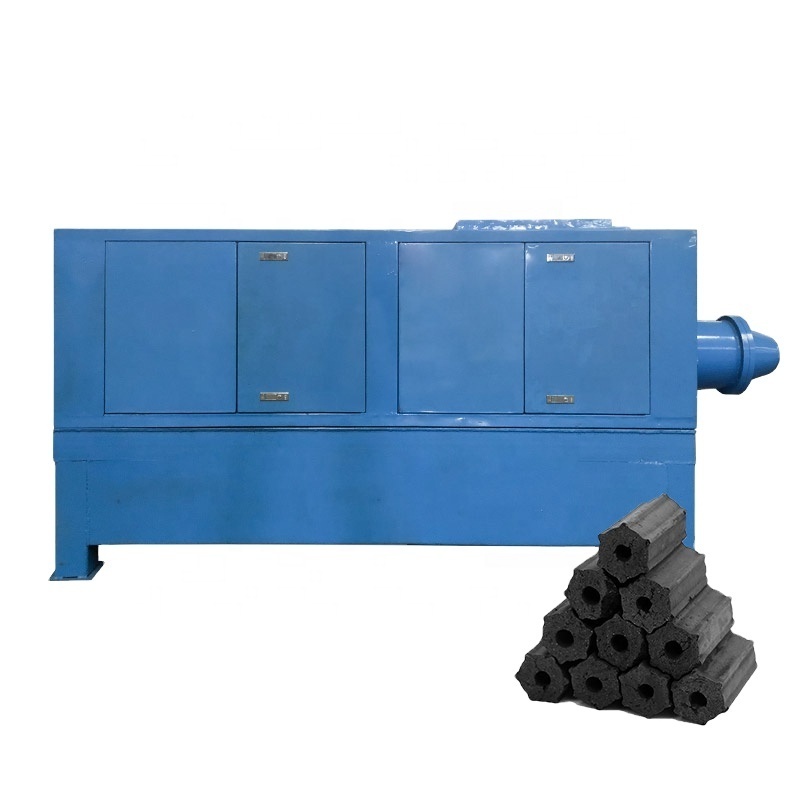

Charcoal briquette extruder is used for compacting charcoal fines (coal fines) into briquettes. The resulting briquettes can be different shapes, such as hexagonal shape, etc. Normally, the briquettes are used as clean fuels, for heating, cooking, barbecue, etc.
|
Model
|
HSLX-160
|
HSLX-260
|
|
Power
|
11kw
|
12pcs/time, 35-38times/min
|
|
Capacity
|
400~500kg/h
|
12pcs/time, 35-38times/min
|
|
Briquette diameter
|
6~50mm
|
6~50mm
|
|
Size
|
2.7*0.78*1.25m
|
3.2*2.3*1.2m
|
|
Weight
|
960/1100kg
|
1800/1850kg
|
Features
1. Special gearbox, to ensure that the machine can run stably and reliably, lower vibration and noise.
2. Cooling system for moulds, to extend moulds' lifespan and keep good performance.
3. Frequency motor and inverter, to adjust the rotating speed of screw, to be suitable for all kinds of charcoal and moisture content.
4. Pneumatic cutter, to cut briquettes with uniform length automatically.
5. ASTM&EU standard Plug and Socket, to make it more convenient and safe to connect machine with power.
6. Advanced electric control panel, to make it more convenient and easy for operating.
Finished Products
The raw material can be coal, charcoal, coke etc. In addition, if the raw material is biomass with lignin, such as coconut shell, rice husk, sawdust etc. E.P company can supply different carbonization equipment to help customer carbonize the raw material into charcoal for briquetting.
Production Line
Charcoal Briquetting：
Charcoal Lumb——Crushing——Mixing——Briquetting
Biomass Material Briquetting：
Biomass Materia——Carbonization Furnace——Crushing——Mixing——Briquetting
Through the high extruding pressure during the pressing process, the raw material charcoal powder and binder will be pressed into solid charcoal briquettes. The basic processes are list as below. Not all these processes are necessary, it all depends on the situation of your raw materials. Please don’t hesitate o contact with us if you need any suggestion on charcoal briquettes production.
