Safety must be rigorous in automatic environments. Isolating machines that may represent a hazard is essential.
Safety fencing are integrated for this purpose into your logistics, while allowing access exclusively to authorized personnel.
Customizable, they are designed from standard modules.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Lejun
-
Model Number:
-
LJ-MGF011
-
Usage:
-
Machine Fence
-
Product name:
-
Machine Guarding Safety Fence
-
Post:
-
40x40,50x50,60x60.
-
Color:
-
Yellow
-
Warranty:
-
5 years
-
MOQ:
-
10pcs
-
Wire Dia:
-
3mm
-
Frame:
-
20x20,25x25
-
Panel width:
-
0.25m,0.5m,0.75m,1.0m,1.2m and 1.5m
-
Panel height:
-
1.25m, 2.0m and 2.5m
-
Application:
-
Machine safety
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, Sustainable, ECO FRIENDLY, Waterproof
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Lejun
-
Model Number:
-
LJ-MGF011
-
Usage:
-
Machine Fence
-
Product name:
-
Machine Guarding Safety Fence
-
Post:
-
40x40,50x50,60x60.
-
Color:
-
Yellow
-
Warranty:
-
5 years
-
MOQ:
-
10pcs
-
Wire Dia:
-
3mm
-
Frame:
-
20x20,25x25
-
Panel width:
-
0.25m,0.5m,0.75m,1.0m,1.2m and 1.5m
-
Panel height:
-
1.25m, 2.0m and 2.5m
-
Application:
-
Machine safety

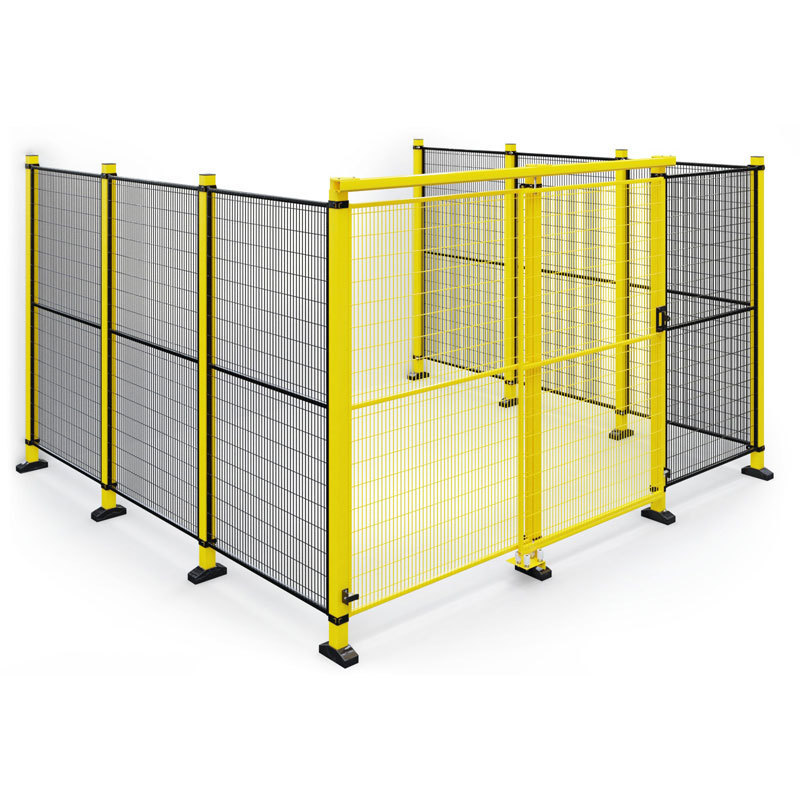

Best Selling Machine Safety Fence High Quality Steel Metal Modular Machine Guard Fence
Machine Safety Fence
Product Description
1. Mesh panels Desciption
Mesh Panels
The LeJun panel is a lighter machine guard panel with a 19 x 19 mm frame. All horizontal wires are welded into the frame and the
vertical wires are welded to the crossing tubes, creating a stable and impact resistant panel. Standard panels are available in 7 widths, from 200 mm to 1500 mm to fit system height of either 1500 mm, 1900 mm, 2080 mm or 2480mm
vertical wires are welded to the crossing tubes, creating a stable and impact resistant panel. Standard panels are available in 7 widths, from 200 mm to 1500 mm to fit system height of either 1500 mm, 1900 mm, 2080 mm or 2480mm
|
Mesh panels specifications
|
|
|
|
|
|
|||||
|
NO
|
Height （mm）
|
Width（mm）
|
Mesh （mm）
|
Wire Dia（mm）
|
color
|
|||||
|
LJ-M001
|
1500
|
200,300,700,800,1000,1200,1500
|
22x100
|
3.0,3.2,3.5,4.0
|
Black
|
|||||
|
LJ-M002
|
1900
|
200,300,700,800,1000,1200,1500
|
22x100
|
3.0,3.2,3.5,4.0
|
Black
|
|||||
|
LJ-M003
|
2080
|
200,300,700,800,1000,1200,1500
|
22x100
|
3.0,3.2,3.5,4.0
|
Black
|
|||||
|
LJ-M004
|
2480
|
200,300,700,800,1000,1200,1500
|
22x100
|
3.0,3.2,3.5,4.0
|
Black
|
|||||
|
Custom Mesh Panel Sizes Available
|
|
|
|
|
|
|||||
2.Post Description
Post
Standard heights - 1.6 meter, 2.0 meter, 2.2meter and 2.6meter tall
Standard powder-coated Safety Yellow.
Custom post sizes and colours are also available.
Posts are alike for doors and panels.
Post caps are included.
Standard powder-coated Safety Yellow.
Custom post sizes and colours are also available.
Posts are alike for doors and panels.
Post caps are included.
|
Post specifications
|
|
|
|
|||
|
Post 1
|
40x40x2mm SHS
|
1.4m, 2.2m or 2.7m length
|
Black or Yellow
|
|||
|
Post 2
|
50x50x2mm SHS
|
1.4m, 2.2m or 2.7m length
|
1.4m, 2.2m or 2.7m length
|
|||
|
Post 3
|
60x60x2mm SHS
|
1.4m, 2.2m or 2.7m length
|
1.4m, 2.2m or 2.7m length
|
|||
|
Post 4
|
80x80x2.5/3.0mm SHS
|
1.4m, 2.2m or 2.7m length
|
1.4m, 2.2m or 2.7m length
|
|||
|
Custom post Sizes Available
|
|
|
|
|||
Polycarbonate Panels
Workplace safety perimeter guarding
Machine Safety Guarding
Door
Single swing gates, Double swing gates and sliding gates
|
Single hinged door
|
|
|
|
Part NO
|
Width
|
|
|
LJ-G001
|
1.0m
|
|
|
LJ-G002
|
1.25m
|
|
|
LJ-G003
|
1.5m
|
|
|
LJ-G004
|
2.0m
|
|
|
LJ-G005
|
2.5m
|
|
|
Double swing gates
|
|
|
|
Part NO
|
Width
|
|
|
LJ-D001
|
2.0m
|
|
|
LJ-D002
|
2.5m
|
|
|
LJ-D003
|
3.0m
|
|
|
LJ-D004
|
3.5m
|
|
|
LJ-D005
|
4.0m
|
|
|
Sliding gates
|
|
|
|
Part No
|
Width
|
|
|
LJ-S001
|
1.5m
|
|
|
LJ-S002
|
2.0m
|
|
|
LJ-S003
|
2.5m
|
|
|
LJ-S004
|
3.0m
|
|
|
LJ-S005
|
3.5m
|
|
|
LJ-S006
|
4.0m
|
|
Packing & Delivery
1. fence panel:
on pallet (there is carton board on the bottom of the fence, to reduce the crash between the pallet and the panel; there is carton board between two panels, to reduce the damage)
2.Post:packed in plastic bag, and then wraped by air bubble film
3. clamps & bults:in small cartons 4.Woodbox
on pallet (there is carton board on the bottom of the fence, to reduce the crash between the pallet and the panel; there is carton board between two panels, to reduce the damage)
2.Post:packed in plastic bag, and then wraped by air bubble film
3. clamps & bults:in small cartons 4.Woodbox
