Quick Details
-
Instruction for use:
-
1
-
Model Number:
-
NT
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
NOONTY
-
Professional System:
-
Environment Equipment
-
Application:
-
Medical Herbs Growing
-
Features:
-
Durable
-
Covering:
-
Container Planting
Quick Details
-
Size:
-
Large
-
Type:
-
Multi-Span Agricultural Greenhouses
-
Manufacturer:
-
NOONTY
-
Instruction for use:
-
1
-
Model Number:
-
NT
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
NOONTY
-
Professional System:
-
Environment Equipment
-
Application:
-
Medical Herbs Growing
-
Features:
-
Durable
-
Covering:
-
Container Planting
Product Features

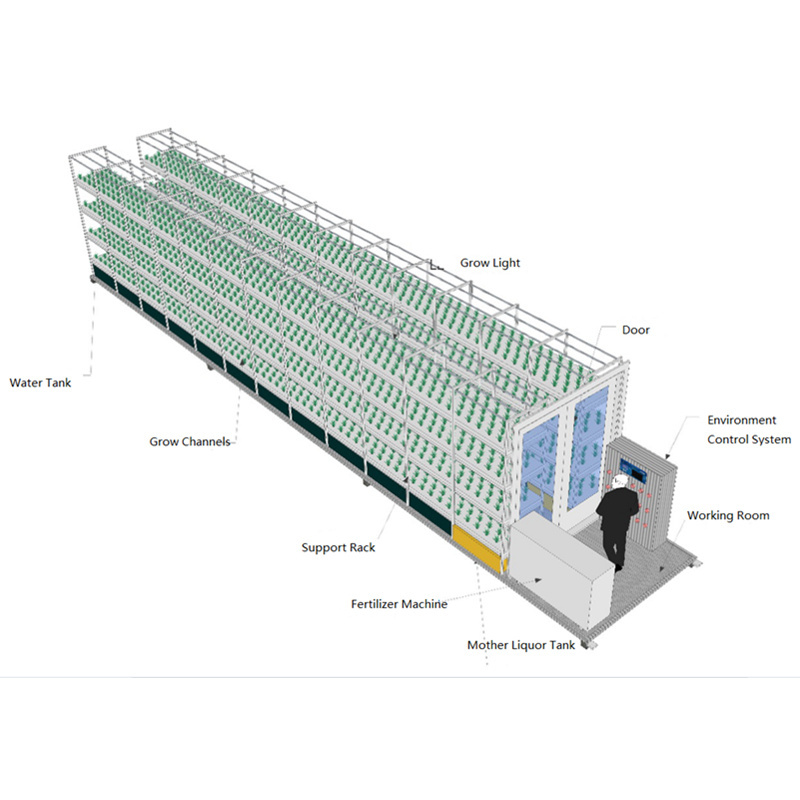

Vertical Farming Container
:
Three Types Planting In Container As Follows:
1-Hydroponics Gully Plan
ting In Container
|
NO.
|
Item
|
Specification
|
Unit
|
Qty
|
||||
|
1
|
40HQ Container 100% New
|
Length 12M/ 39′-6″ Width 2.35M /7′-9″ Height 2.69M/ 8′-10″
|
PC
|
1
|
||||
|
2
|
Container Modification
|
Modification for Air Condition Position;Air-Inlet&Outlet;Electric Cables,Water Tubes,etc
|
SET
|
1
|
||||
|
3-1
|
Heat Insulation Layer
|
Rockwool Sandwich Board,5cm Thermal Conductivity: About 0.021W/(m·K) Water absorption Fire-proof: A Degree.
|
SET
|
1
|
||||
|
3-2
|
|
Polyurethane Sandwich Board,7.5cm Thermal Conductivity: About 0.035W/(m·K) No water absorption Prevent mold and rot Fire-proof B
Degree. |
SET
|
1
|
||||
|
4
|
Air Conditioner, Variable Frequency Machine,Cold&Heat 2-in-one.
|
FGP7.2Pd/C3Nh-N1
Rated Power 2.3KW
Cooling Capacity 12KW
Size:889*340*660Mm
|
PC
|
2
|
||||
|
5
|
Wire Controller+Modbus Rtu Adapter
|
|
PC
|
2
|
||||
|
6
|
2 Partition Doors
|
|
PC
|
1
|
||||
|
7
|
Planting Racks
|
9470*2250*2560mm
|
SET
|
1
|
||||
|
8
|
Large Distribution Cabinet
|
1280*550*2420mm
|
SET
|
1
|
||||
|
9
|
Grow Lights
|
L=1180mm Power:18W PPE:2.0umol/J AC85-265V 50/60HZ
Life:2-3 years
|
PC
|
320
|
||||
|
9A
|
Grow Lights Controlling
|
Could control each layer of lights separately
|
SET
|
1
|
||||
|
10
|
Planting Tray
|
L1176*W600mm*H (73+5.5) ABS Material Life:15-20 years
|
PC
|
80
|
||||
|
11
|
Planting Cup
|
|
PC
|
4240
|
||||
|
12
|
Bellows
|
Corrugated Pipe
Extra Soft Black Inner Diameter 25Mm
Thickness 1.8mm
Length:0.7m
|
PC
|
40
|
||||
|
13
|
Wash Basin
|
SUS304
1200*600*800mm
|
PC
|
1
|
||||
|
14
|
Thickened PVC Floor Mat
|
Thickened PVC Floor Mat
0.9 Meters Wide
|
M
|
12
|
||||
|
15
|
Temperature and Humidity Sensor
|
Temperature And Humidity Sensor/Dc24V/485/Built-In Copper Probe
(Rs-Ws-No1-5000P)
|
PC
|
1
|
||||
|
16
|
Level Gauge
|
Measuring Range 5 Meters,
Dc24V, 485
|
PC
|
2
|
||||
|
17
|
Voltage Reducer
|
European Standard Dc 24V
|
PC
|
1
|
||||
|
18
|
Aluminum Profile 40*40*2
|
European Standard/40*40*2/Surface Passivation
|
PC
|
16
|
||||
|
19
|
Water Pump
|
Peristaltic Pump
OEM206
DC24V
300 Rpm
1140 Ml/Min
Wp300-3
Aluminum Rotor Bracke
Internal Pressure A-60-F
Delivery Internal
Pressure Silicone Tube Silicone
Tube-18(ID7.9Mm,Od11. 1mm) 2 Meters/Unit
|
PC
|
8
|
||||
|
20
|
Peristaltic Pump Box
|
Peristaltic Pump Box
Cold Rolled Plate
T=1.0mm
Riveted 16 M4 Nuts
Baked White Wrinkle Paint
|
PC
|
2
|
||||
|
21
|
Online Conductivity
|
EC4.0,0-20000Us/Cm, 24V English
|
PC
|
1
|
||||
|
22
|
Conductivity Electrode
|
Tds-6012 K=1.0 10K, 5M Stainless Steel English
|
PC
|
1
|
||||
|
23
|
Conductivity Electrode
|
Tds-6012 K=1.0 10K 10M Stainless Steel English
|
PC
|
1
|
||||
|
24
|
Online Ph Meter
|
2.0 Controller English Dc24V Neutral
|
PC
|
2
|
||||
|
25
|
Online Ph Electrode
|
English 0-14 PH-5011 BDJ5
|
PC
|
1
|
||||
|
26
|
Rj45F6 Aviation Plug
|
Rj45F6 Aviation Plug + Female Socket
|
PC
|
1
|
||||
|
27
|
Aviation Plug
|
Aviation Plug: Ph3520, 5-Pin
|
PC
|
2
|
||||
|
28
|
Aviation Socket
|
Aviation Socket: Ph3523, 5-Pin
|
PC
|
2
|
||||
|
29
|
Aviation Plug Stainless Steel Bracket
|
|
PC
|
1
|
||||
|
30
|
Electrical Components Inside Large Distribution Cabinet
|
|
PC
|
1
|
||||
|
31
|
Plastic Homemade Water Tank
|
9500*520*260mm;8.0T
|
PC
|
2
|
||||
|
32
|
Water Pipes, Manual Valves, Pipe Joints
|
|
PC
|
1
|
||||
|
33
|
Electromagnetic Valve
|
|
PC
|
8
|
||||
|
34
|
Co2 System Components
|
|
PC
|
1
|
||||
|
35
|
Horizontal Pump
|
Item: Chl2-40 Power:50Hz,220V, 0.55Kw, Flow Rate 2 Cubic Meters/Hour Head 29 Meters
|
PC
|
2
|
||||
|
36
|
Fresh Air Ventilator
|
660*460*340mm
|
PC
|
1
|
||||
|
37
|
Stainless Steel Clamp
|
Diameter 200mm
|
PC
|
2
|
||||
|
38
|
Stainless Steel Hood
|
Diameter 200mm
|
PC
|
1
|
||||
|
39
|
Exhaust Pipe
|
Diameter 200mm
|
M
|
1
|
||||
|
40
|
Residual Pressure Valve
|
|
PC
|
1
|
||||
|
41
|
Safety Warning Stickers
|
|
PC
|
20
|
||||
|
42
|
Floor Fan
|
18-Inch Shaking Head 120W Blade Diameter: 450Mm, 220V50Hz
|
PC
|
1
|
||||
|
43
|
Fertilizer Machine
|
Intelligent Controlling Machine based on EC/PH,timing,etc. The right&left 2 side could be set with different formulation.
Precision Tolerance +/- 5%. Could set irrigation system automatically(Like irrigate on 30 minutes and off 10 minutes,etc) . If the water tank runs off the water, the pump will be stopped to protect the water pump. More function turns to Manual. |
SET
|
1
|
||||
|
44
|
Controlling system
|
Could control by APP,Computer,Mobile
|
SET
|
1
|
||||
|
For environment 0°C-35°C with Optional Item 3-1
|
|
|
|
|
||||
|
For environment ＜0°C&＞35°C with Optional Item 3-2
|
|
|
|
|
||||
