Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
YORK
-
Cleaning Type:
-
Dust collecting and cleaning
-
Industry Used:
-
Air conditioning duct cleaning
-
Dimension(L*W*H):
-
480*450*1050
-
Weight (KG):
-
30 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Dust cleaning and collection
-
Application:
-
Air duct cleaning for air conditioning
-
Volume of dust collecting box:
-
5L
-
Soft shaft:
-
15m
-
Brush size:
-
100-600mm
-
Voltage (V):
-
220V,380v, 50Hz,60Hz, adjustable
-
Frequency:
-
Viarable frequency
-
Control:
-
Intelligent control
Quick Details
-
Cleaning Process:
-
Other
-
Power:
-
3600W, 3600w
-
Max. Pressure:
-
2.5Mpa
-
Place of Origin:
-
China
-
Brand Name:
-
YORK
-
Cleaning Type:
-
Dust collecting and cleaning
-
Industry Used:
-
Air conditioning duct cleaning
-
Dimension(L*W*H):
-
480*450*1050
-
Weight (KG):
-
30 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Type:
-
Dust cleaning and collection
-
Application:
-
Air duct cleaning for air conditioning
-
Volume of dust collecting box:
-
5L
-
Soft shaft:
-
15m
-
Brush size:
-
100-600mm
-
Voltage (V):
-
220V,380v, 50Hz,60Hz, adjustable
-
Frequency:
-
Viarable frequency
-
Control:
-
Intelligent control
Product Overview

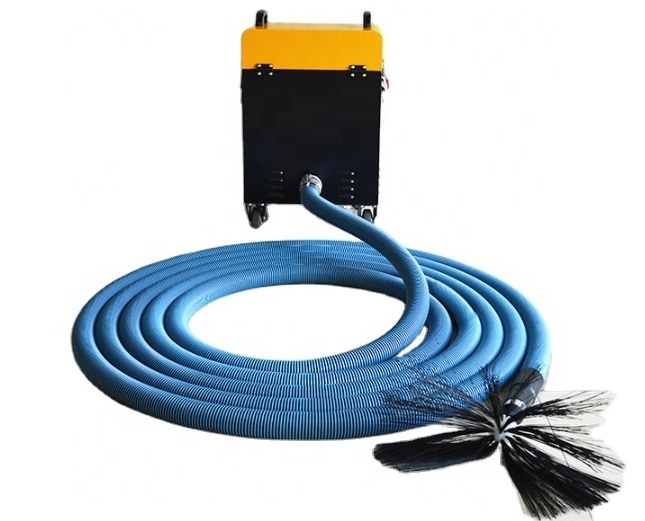

YORKTECH central air conditioning cleaning machine equipment robot for HVAC air duct cleaning
1.YK-AC series is a newly designed cleaner combining sweeping and dust collecting, portable and practical.
2.Equipped with 15m imported aluminum soft suction tubes, the front end rotary cleaning brush connected with cleaner by the flexible shaft, the dust sucked into the dust collector via suction tubes.
3.With micro processor, the cleaning rotating speed can be adjustable from 60 to 1300 rpm/min, can be running in clockwise and anticlockwise direction both manually or automatically;
4.With 3-level whirlwind system for improving the performance of the whole machine.
5. It takes a single person to operate for cleaning the central air conditioning duct systems in hotels, restaurant, shower center, super market, etc. effective and no harm to environment.
6.Adopt no electric shock control to switch continuously or separately to adjust the suction.
7.The surface is painted by metal electrostatic spraying.
2.Equipped with 15m imported aluminum soft suction tubes, the front end rotary cleaning brush connected with cleaner by the flexible shaft, the dust sucked into the dust collector via suction tubes.
3.With micro processor, the cleaning rotating speed can be adjustable from 60 to 1300 rpm/min, can be running in clockwise and anticlockwise direction both manually or automatically;
4.With 3-level whirlwind system for improving the performance of the whole machine.
5. It takes a single person to operate for cleaning the central air conditioning duct systems in hotels, restaurant, shower center, super market, etc. effective and no harm to environment.
6.Adopt no electric shock control to switch continuously or separately to adjust the suction.
7.The surface is painted by metal electrostatic spraying.
PRODUCT SPECIFICATIONS
|
Model
|
YK-AC3600
|
YK-AC3600A
|
YK-AC3200B
|
YK-AC3200C
|
|||
|
Function
|
2 in 1 cleaning and dust collecting
|
|
|
|
|||
|
Air volume
|
2600m3/h
|
2200m3/h
|
2200m3/h
|
2200m3/h
|
|||
|
Power
|
3600W
|
3600W
|
3200W
|
3200W
|
|||
|
Design features
|
Camera and 10.1-inch screen
|
Camera and 10.1-inch screen
|
Without Camera and screen
|
Without Camera and screen
|
|||
|
Soft shaft length
|
15m
|
15m
|
15m
|
10m
|
|||
|
Framework
|
Stainless steel 304 baking paint
|
Carbon steel Q235 baking paint
|
Carbon steel Q235 baking paint
|
Carbon steel Q235 baking paint
|
|||
|
Volume of dust collecting box
|
6L
|
5L
|
5L
|
5L
|
|||
|
Brush diameter
|
Offer 10pcs, 150, 200,250, 300, 400, 500, 600mm
|
|
|
|
|||
|
Rotating Speed
|
0~1400 rpm. Adjustable
|
0~1400 rpm. Adjustable
|
0~1400 rpm. Adjustable
|
0~1400 rpm. Adjustable
|
|||
|
Filter core
|
HEPA
|
HEPA
|
HEPA
|
HEPA
|
|||
|
Motor Control Mode
|
Manual + Automatic
|
|
|
|
|||
|
Voltage/Frequency
|
220V/60Hz, can be customized
|
|
|
|
|||
|
Dimension
|
700*500*1100mm
|
700*400*1100mm
|
700*400*1100mm
|
700*400*1100mm
|
|||
|
Weight
|
50kg
|
45kg
|
45kg
|
45kg
|
|||
