Quick Details
-
Model Number:
-
RYD
-
Rated voltage:
-
250V
-
Material::
-
Metal
-
Name::
-
Thermal fuse
-
Scope Of Application::
-
kinds of electric Appliance
-
Weight::
-
0.95g/pc
-
Free Sample::
-
5pcs
-
Color::
-
customized
-
Model no::
-
RYDxxx
-
Brand Name::
-
LeBao
-
Operation temperature::
-
73°-240°
Quick Details
-
Breaking Capacity:
-
High
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEBAO
-
Model Number:
-
RYD
-
Rated voltage:
-
250V
-
Material::
-
Metal
-
Name::
-
Thermal fuse
-
Scope Of Application::
-
kinds of electric Appliance
-
Weight::
-
0.95g/pc
-
Free Sample::
-
5pcs
-
Color::
-
customized
-
Model no::
-
RYDxxx
-
Brand Name::
-
LeBao
-
Operation temperature::
-
73°-240°

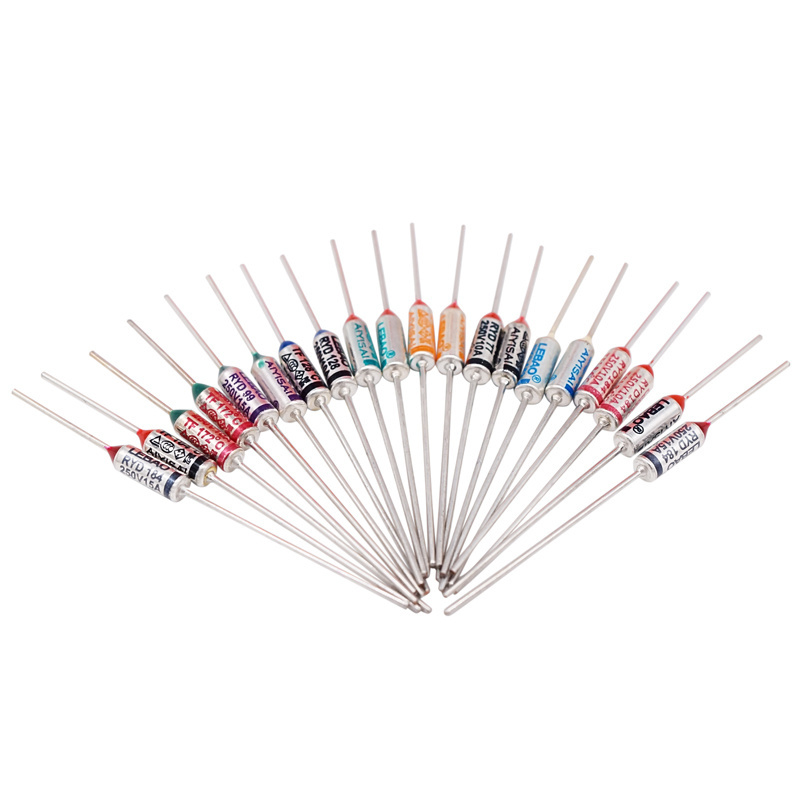

Fan motor thermal fuse 15A 250V
Shipping port :Ningbo or Shanghai
Also we can design the package according to your requirements.
Cetificate form:
| 120V | 15A | E320981 | |
| TUV | 250V | 10A/15A/16A | R50141010 |
| PSE | 120V~250V | 10A/15A | JD60018886 |
| EK | 250V | 10A | SU05022 |
| CCC | 250V | 10A/15A | 2006010205206736 |
Test Project:
| Test Project | Monitor Test | Storage test | Random number | Allow defctive products |
| Size | O | O | 0.1% | 0 |
| Exterior | O | O | 10% | 0 |
| O | O | 100% | 0 | |
| Operating temperture | O | O | 0.1% | 0 |
| Holdinge temperature | O | O | 0.1% | 0 |
| Contact resistance | O | O | 100% | 0 |
Performance Characteristics:
1)No load operating temperature test(TF):
Fuse placed in the 0-300 degree temperature test box(oil temperature testing), Then warming to rated operating temp of sample in the speed of 0.5k/min to 1k/min the test result should within +0/-10C of rated TF.
2)No load Holding temperature test(TH):
Fuse placed in the test box, applide current/ voltage does not exceed the amount of Set range, the Testing TH temperature does not exceed the scope of Th temperature of the test in 7days.
3)Contact resistance:
A measurement of contact resistance betwween E and the case should be no more than 5mohm.
4)Electrical strength:
Between lead and metal casing is conductive, so do not do this test.
5)Wet test:
Standard experimental conditions
For TF<=100C thermal fuse
Environmental Temp:40+/-3C
Humidity:RH90/95%
For TF>100C thermal fuse
Humidity:RH90/95%
