Quick Details
-
Voltage:
-
380V or as customer's requirements
-
Dimension(L*W*H):
-
10000*2500*3000 mm
-
Weight:
-
6000 kg
-
Marketing Type:
-
Hot Product 2024
-
Name:
-
Wood Pellet Production Line
-
Application:
-
Make Biomass Pellets
-
Raw material:
-
Wheat Bran/Sawdust\straw\rice Husk\wood Waste/Grass/Cotton Stalks etc.
-
Color:
-
Customer's Request
-
Usage:
-
Making Wood Pellets Animal Feed Pellets
-
Feature:
-
High Efficiency Low Cost
-
Capacity:
-
1-10t/h
-
Keywords:
-
Pellet Making Plant
-
Use:
-
Pellelting
-
Quality:
-
CE ISO Approved
Quick Details
-
Max. Capacity:
-
5 ton/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Eternalwin
-
Voltage:
-
380V or as customer's requirements
-
Dimension(L*W*H):
-
10000*2500*3000 mm
-
Weight:
-
6000 kg
-
Marketing Type:
-
Hot Product 2024
-
Name:
-
Wood Pellet Production Line
-
Application:
-
Make Biomass Pellets
-
Raw material:
-
Wheat Bran/Sawdust\straw\rice Husk\wood Waste/Grass/Cotton Stalks etc.
-
Color:
-
Customer's Request
-
Usage:
-
Making Wood Pellets Animal Feed Pellets
-
Feature:
-
High Efficiency Low Cost
-
Capacity:
-
1-10t/h
-
Keywords:
-
Pellet Making Plant
-
Use:
-
Pellelting
-
Quality:
-
CE ISO Approved
Product Description

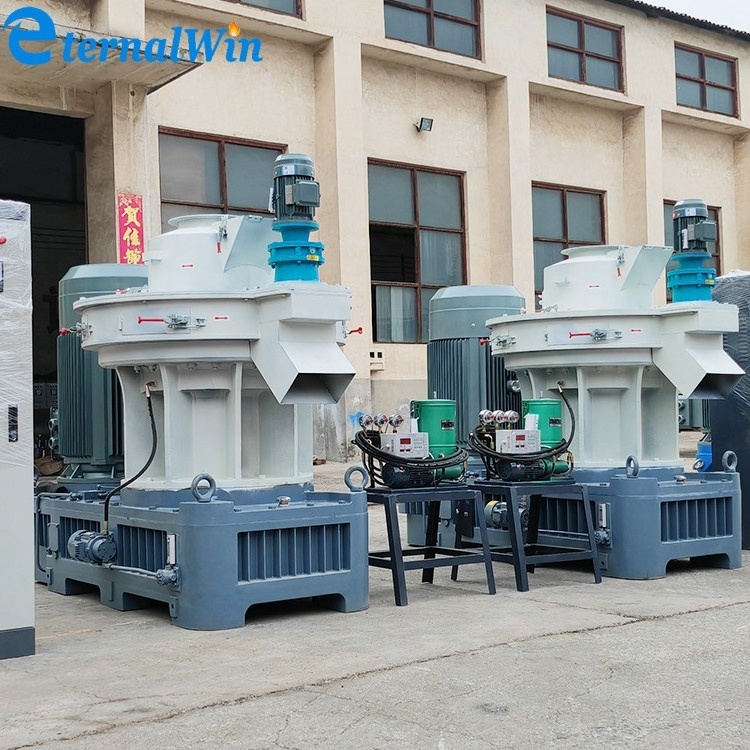

Brief introduction of biomass wood sawdust pellet machine
Biomass crops straw,wood chip, sawdust, broken wood, straw, fruit shell, etc. have high water content, direct combustion, low thermal efficiency, incomplete combustion, and gasification of the water to take away a large amount of high-temperature heat energy, resulting in a large amount of smoke, increasing the cost of environmental protection and dust removal. The internationa general biomass utilization method is: biomass raw materials are crushed, dried, dehydrated, de-ashed, and formed under high pressure. The moisture content reaches 12-15%, the calorific value is 4000-4800kcal/kg, and the ash content is ≤1%. Fuel, saving transportation costs, efficient use, biomass pellet fuel production equipment is the main mechanical equipment.
Specification
Technical Parameter of Wood Pellets Machine
|
Model
|
Power
|
Capacity(kg/h)
|
Weight(kg)
|
Packing Size(mm)
|
|
450
|
55kw
|
800-1000kg/h
|
2900
|
2160*1000*1850mm
|
|
560
|
90kw
|
1200-1500kg/h
|
5600
|
2300*1250*2000mm
|
|
600
|
110kw
|
1800-2000kg/h
|
6500
|
3100*1300*2100mm
|
|
600A
|
132kw
|
2000-2500kg/h
|
7000
|
2200*1200*1750mm
|
|
700A
|
160kw
|
2500-3000kg/h
|
8000
|
2460*1400*2000mm
|
|
850A
|
250KW
|
3000-4000kg/h
|
8500
|
2600*1750*1850mm
|
Detailed pictures
Product Application
The raw materials of this machine can be crushed wastes such as peanut shells, sawdust, grass, straw, wood chips, etc., which can be pressed into various biomass fuels. It is often called wood pellet mill、wood pellet machine machine to make pellets homemade.
Packing & Delivery
Packing & Delivery
payment record
payment record
During the design and manufacturing process of our pellet machines, we always focus on technology research and development and production quality, and strictly control everything from material selection to production technology. In terms of product quality, we adopt international advanced technology and introduce a professional German design team to ensure that the quality and performance of the machine reach the world's first-class level. It has been favored by customers from Germany, Italy, Australia, Romania and other countries
