Quick Details
-
Model Number:
-
BW-001
-
Warranty:
-
1 Years
-
Product name:
-

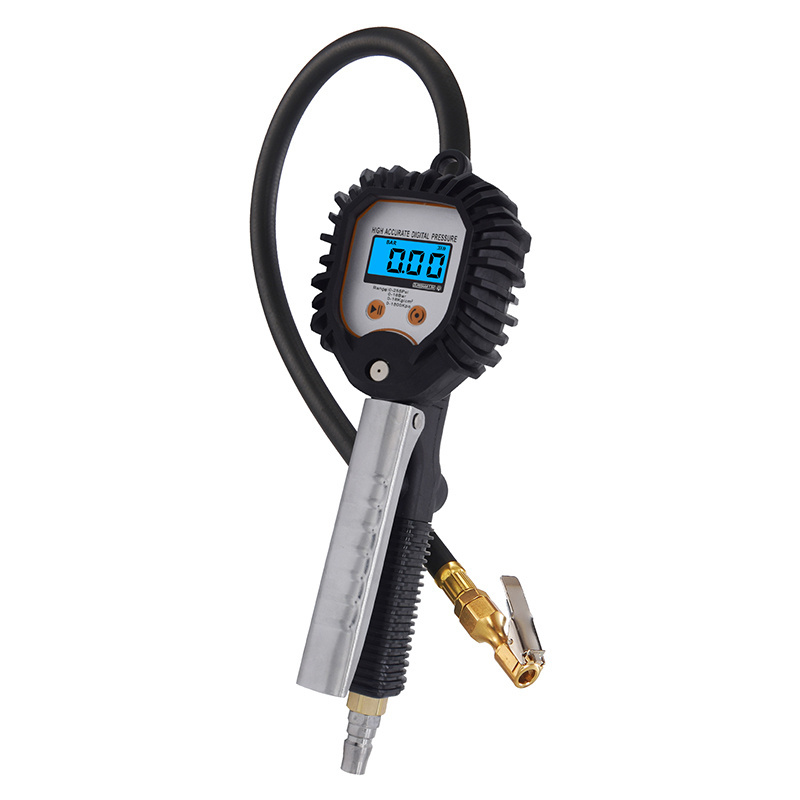

Manufacturer Tire Digital Pressure Gauge LCD dial
-
Display mode:
-
Digital LCD Display
-
Pressure unit:
-
Psi Bar ,Kg/cm2 Kpa
-
Max inlet pressure:
-
255 Psi,18kg/cm,18 Bar,1800Kpa
-
Measuring range:
-
255Psi,18kg/cm,18 Bar,1800Kpa
-
protection:
-
Rubber Protective Sheath
-
Accuracy:
-
±0.2Psi,±0.01 Kg/cm,±0.01bar,±1Kpa
-
Differentiation:
-
0.3~255Psi,0 .01Kg/cm ~ 18 kg/cm, 0.2~ 18 Bar,20~1800Kpa
-
Certification:
-
ce
Quick Details
-
Voltage:
-
3V two AAA battery
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DP
-
Model Number:
-
BW-001
-
Warranty:
-
1 Years
-
Product name:
-
Manufacturer Tire Digital Pressure Gauge LCD dial
-
Display mode:
-
Digital LCD Display
-
Pressure unit:
-
Psi Bar ,Kg/cm2 Kpa
-
Max inlet pressure:
-
255 Psi,18kg/cm,18 Bar,1800Kpa
-
Measuring range:
-
255Psi,18kg/cm,18 Bar,1800Kpa
-
protection:
-
Rubber Protective Sheath
-
Accuracy:
-
±0.2Psi,±0.01 Kg/cm,±0.01bar,±1Kpa
-
Differentiation:
-
0.3~255Psi,0 .01Kg/cm ~ 18 kg/cm, 0.2~ 18 Bar,20~1800Kpa
-
Certification:
-
ce
| Technical parameter | |||||
| Model | DP-B03 | ||||
| Applicable | T ire gauge | ||||
| Display mode | digital LCD | ||||
| Powerstyle | DC 3V-2 pces AAA batteries | ||||
| Workingtemperature | -10~+60℃ | ||||
| Storagetemperature | -10~+60℃ | ||||
| Using | Air / Pneumatic /tire gauge | ||||
| Function | Pressure gauge | ||||
| 4 pressure unit choose ,Psi Bar, kg/cm²,Kpa | |||||
| background light | |||||
| Max inlet pressure | Kg/cm² | 18 kg/cm² | |||
| Bar | 18 Bar | ||||
| Psi | 260 Psi | ||||
| Kpa | 1800Kpa | ||||
| Gauage Measuring range | Kg/cm² | 0 Kg/cm² ~ 15 kg/cm² | |||
| Bar | 0.0~15 Bar | ||||
| Psi | 0.3~220Psi | ||||
| kpa | 20~1800kpa | ||||
| Accuracy | Kg/cm² | ±0.01 Kg/cm² | |||
| Bar | ±0.01bar | ||||
| Psi | ±0.1Psi | ||||
| kpa | ±1kpa | ||||
| Differentiation | 0.1Psi/0.01Bar/0.01Kg/cm/ | ||||
| Connect | RC1/4,G1/4,1/4NPT | ||||
| Standard fittings: |
High Precision Tire/air/Pneumatic pressure protection rubber with air chuck |
||||
| Packe size | 84*84*35mm | ||||
| Net weight | 110.5g | ||||
*LCD backlight display
*
Four pressure units switching
*
15s auto shut down
*
pressure unit reminder function
Why choose us?
Our Service
1. OEM Manufacturing welcome: Product, Package, pressure gauge invention...
2.
free Sample
.
3.
1 year guarantee.
4. We will reply you for your inquiry in 24hours.working day:7*24.
5. after delivery, we will track the products for you once every two days, until you get the products.
FAQ
Q1.Are you a manufacturer or trading company?
A:Established in 2006, Zhuhai SeaPeng Automobile Testing Equipment Co., LTD. is a high-tech enterprise specialized in manufacturing, researching and sales of Tire inflator with Pressure Gauge and AIR inflation system. Headquartered at Zhuhai, China, SeaPeng has dedicated itself in the manufacturing of air inflation over the last 13 year.
